Share your CoilPorn / Specialty Coil Builds / Advanced Building Techniques

[itsmenotyou]

N80 on the 36
The 24 is kanthal

sent from a dumb operated smart phone



[Number3124]

Thought I'd mess with some silly stuff today. It's all NiC80. 24, 26, 32, and 36 AGW twisted together. It's kind of cool about how they stacked. It goes from 24 to 26 to 32 to 36 AGW. I was trying to get them to stack 24, 32, 26, and then 36 to make more pockets and cracks for juice to get into. It's vaping well enough. It's 6 wraps on a 3mm screwdriver. Ohms out to about 0.24 for me. They're a bit sloppy. The wire is VERY springy. Sorry for the poor picture quality.



[itsmenotyou]

Thought I'd mess with some silly stuff today. It's all NiC80. 24, 26, 32, and 36 AGW twisted together. It's kind of cool about how they stacked. It goes from 24 to 26 to 32 to 36 AGW. I was trying to get them to stack 24, 32, 26, and then 36 to make more pockets and cracks for juice to get into. It's vaping well enough. It's 6 wraps on a 3mm screwdriver. Ohms out to about 0.24 for me. They're a bit sloppy. The wire is VERY springy. Sorry for the poor picture quality.

View attachment 30180 View attachment 30181

Could try twisting the 24 and 36 together then the 26/32 then twist the two together andsee if that works better for you man

sent from a dumb operated smart phone



[Number3124]

Could try twisting the 24 and 36 together then the 26/32 then twist the two together andsee if that works better for you man

I'll take a stab at that next time.



[TF Vaping]

First attempt at "the winch" coils. Mismatched dammit. Gotta go again

Sent from my Nexus 6 using Tapatalk



[Number3124]

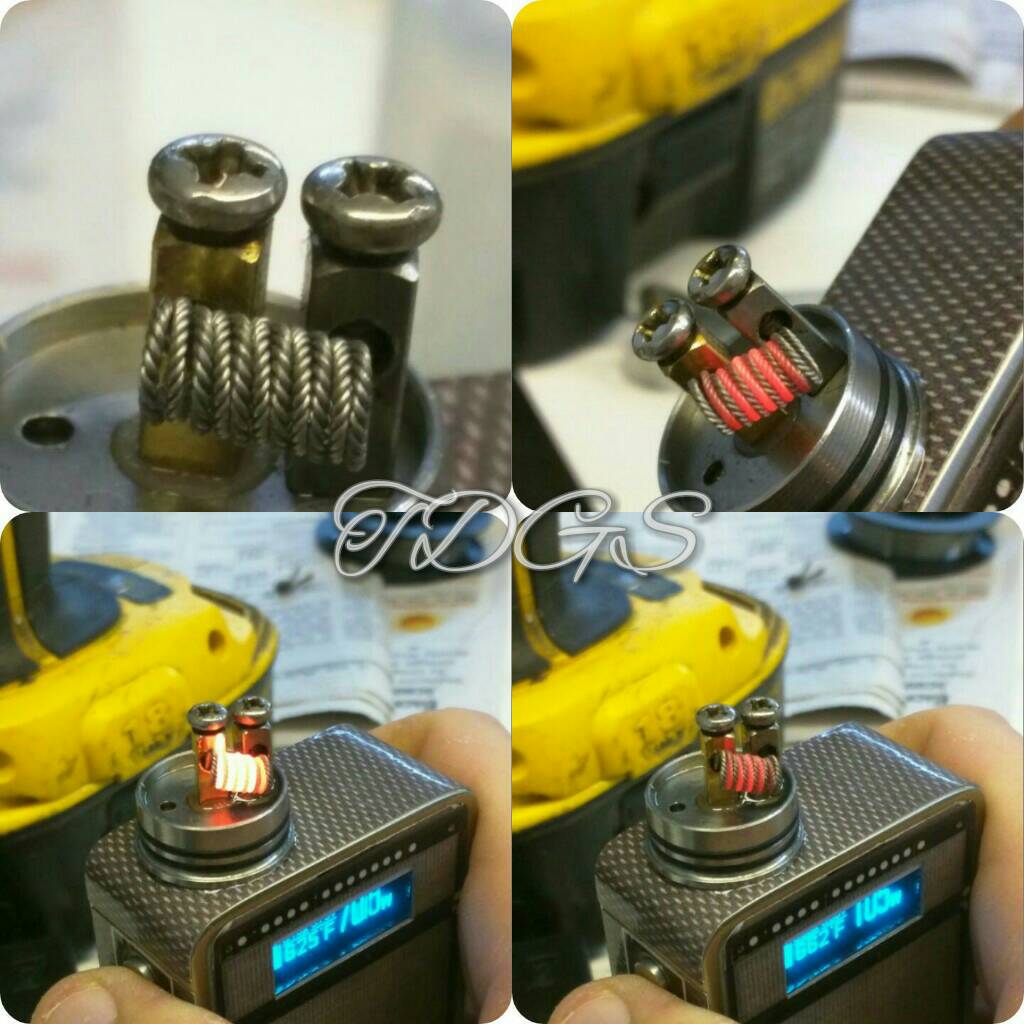

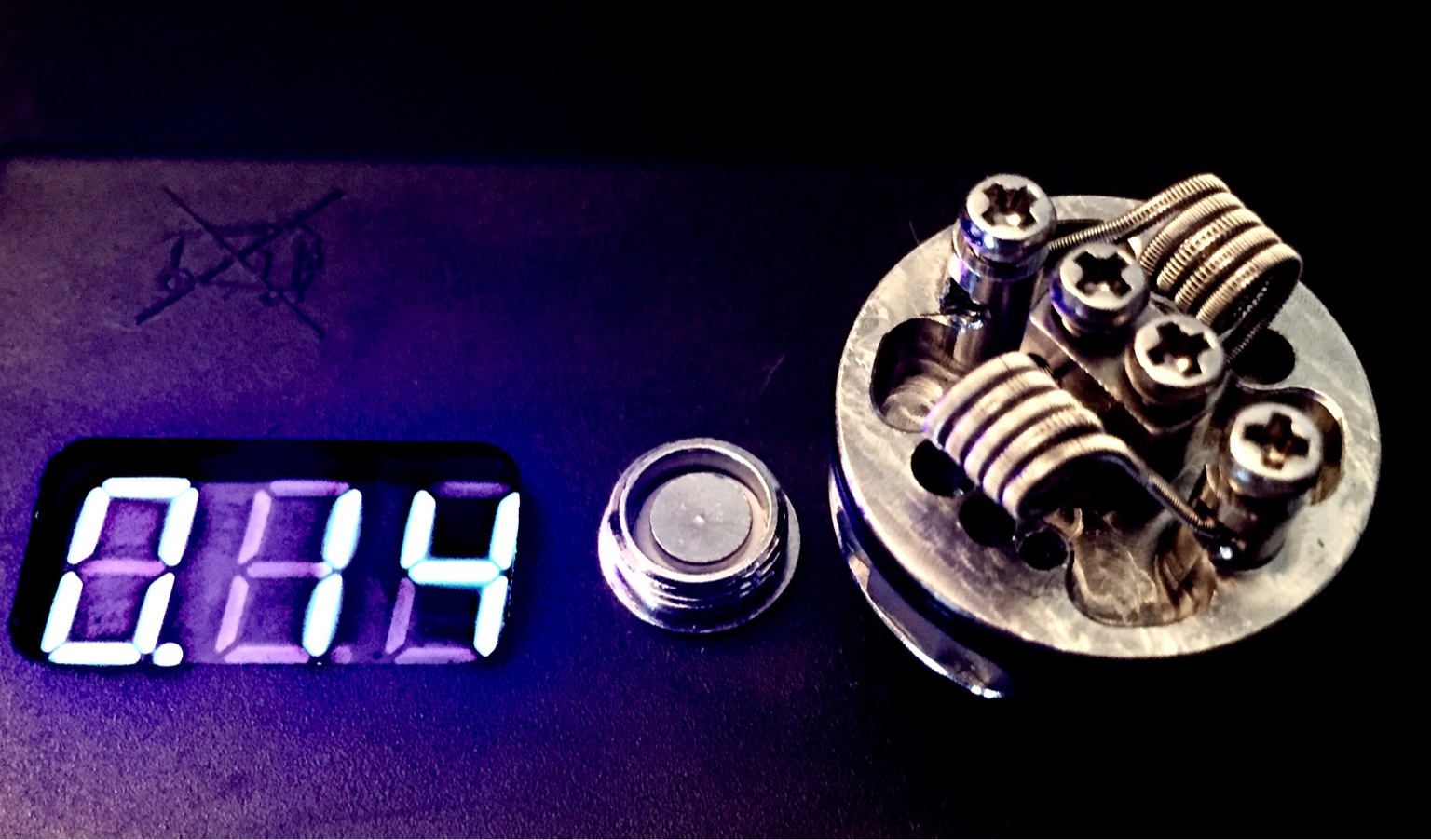

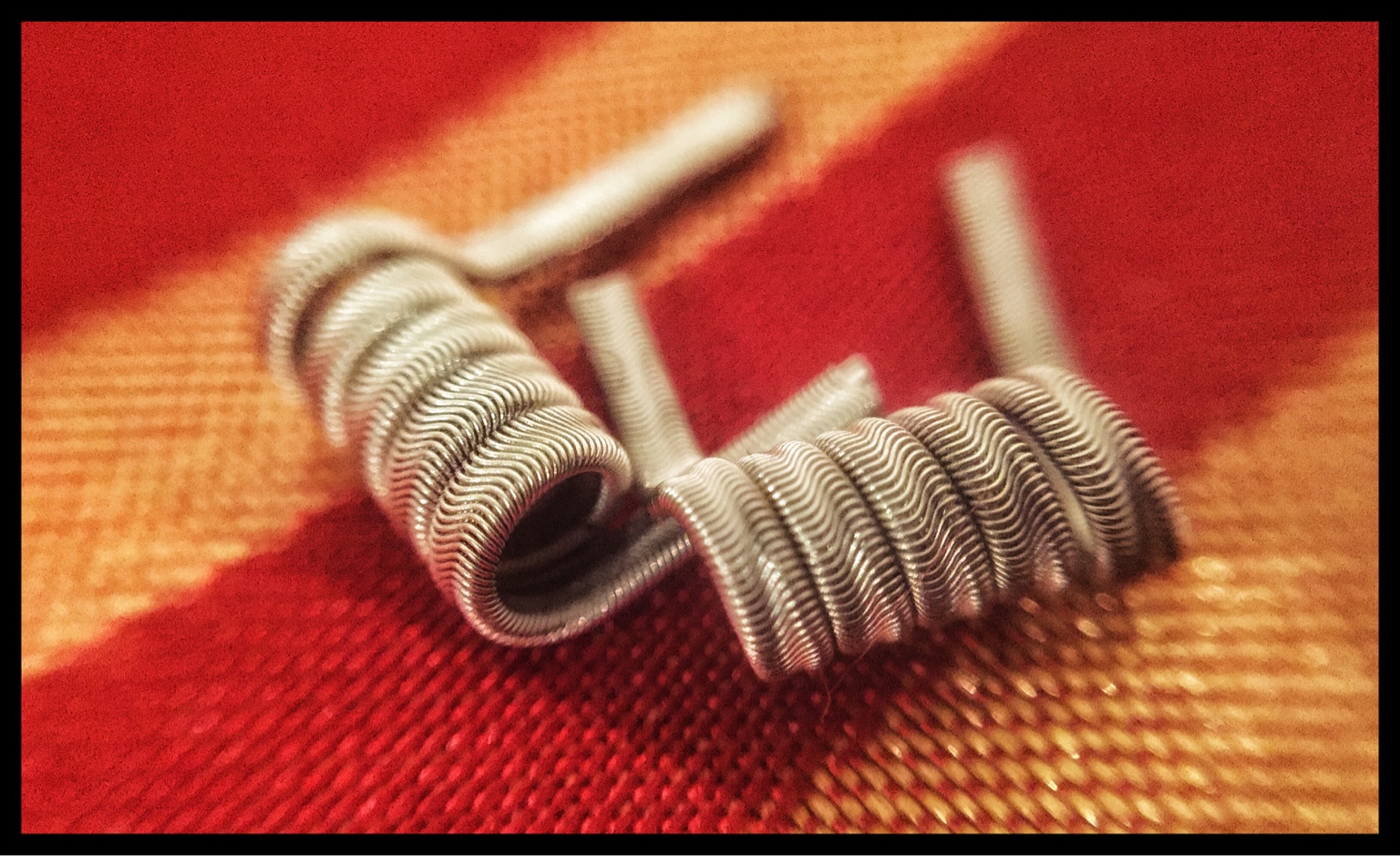

Got a fused clapton made finally.

36 over 26 AGW wasn't working out so I stepped up to 24 AGW for the main coils and it worked. The build is six wraps with a 3mm ID. It comes out to 0.095 ohms so it's not going on the Sigelei 150W. I've got it on a parallel fully mechanical box right now with VTC3s. I know the risks. I've run lower without incident.



[BUDKISS]

Try the swivel idea for the 26 x2 core. It helps and you will prob find it a better Vape (and safer)... Esp on unregulated



[Number3124]

Try the swivel idea for the 26 x2 core. It helps and you will prob find it a better Vape (and safer)... Esp on unregulated

It's unregulated parallel. I'm using VTC3s. They have a 30 amp rating. In parallel this gives me 60 amps to use. I'm pulling 44 amps at 0.095 ohms. I've built down to 0.05 before for a comp (on the same box) before. That was 85 amps. That one made me a bit nervous. I've never vented a battery before.

Anyway, I still have my regular claptons on my Sig at 0.32 ohms.



[itsmenotyou]

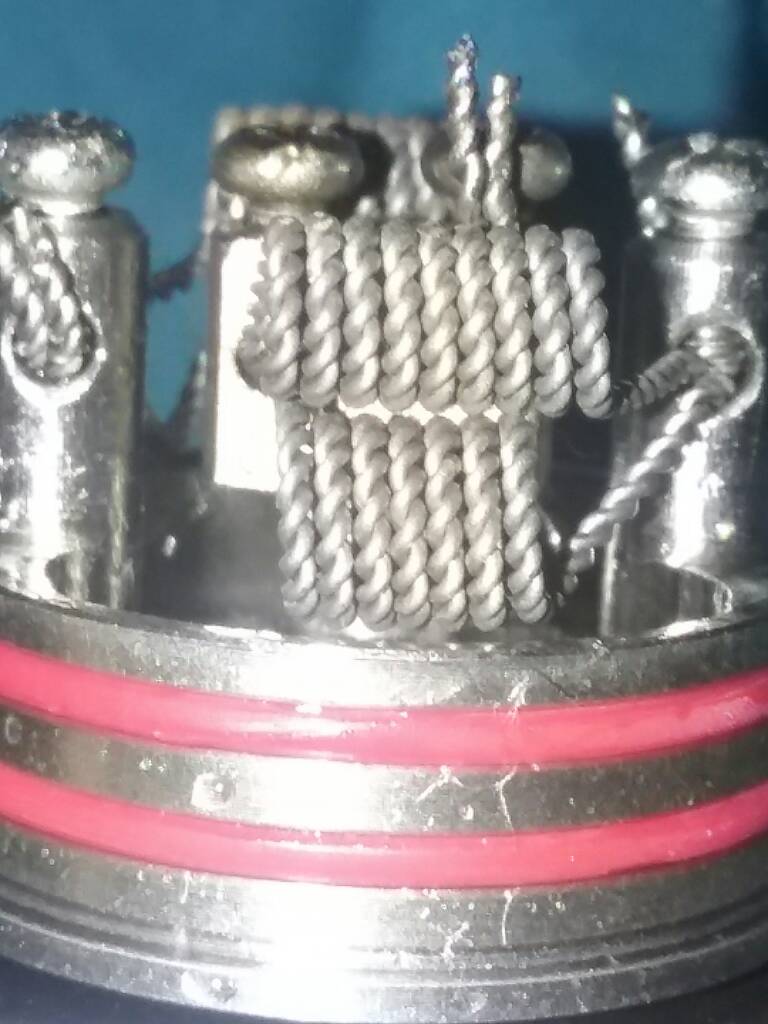

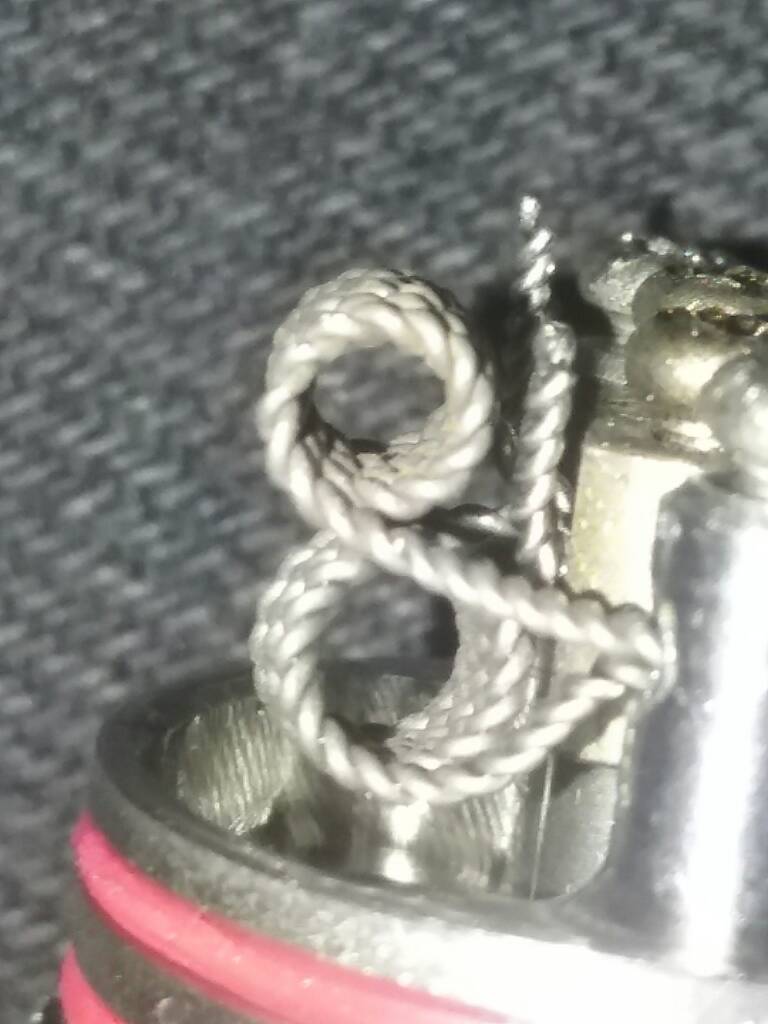

I thought I would try something new today

24 ga a1 bottomcoils are 3mm 6wrap the tops are 2.4mm 8wraps ohmed out to .17

sent from a dumb operated smart phone



[ironman]

Great job. What were the specs on the coils?

I haven't really been selling coils to local shops. When I am there however someone always hits me up for something. I am committed however to take good care of the VU family.
If I can help anyone out please let me know.

What do you recommend with nickel?
I'm trying to retain tc. I've tried fused 2x26ga ni80 core with 30g ni200 Clapton. But tc was acting weird.



[ironman]

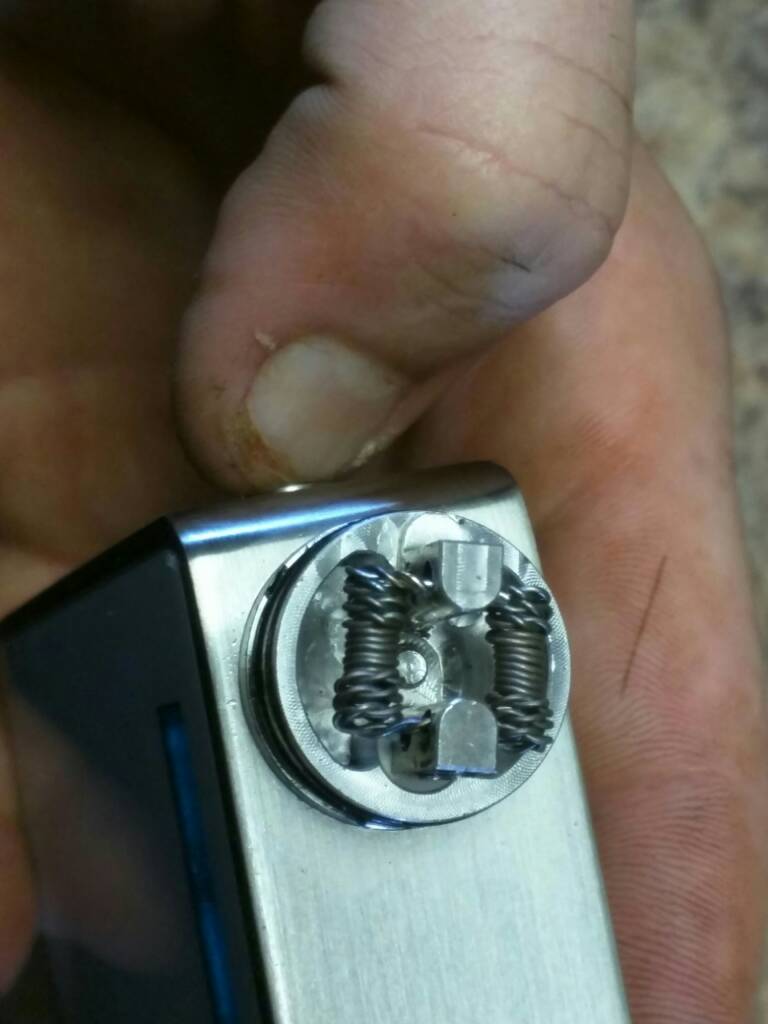

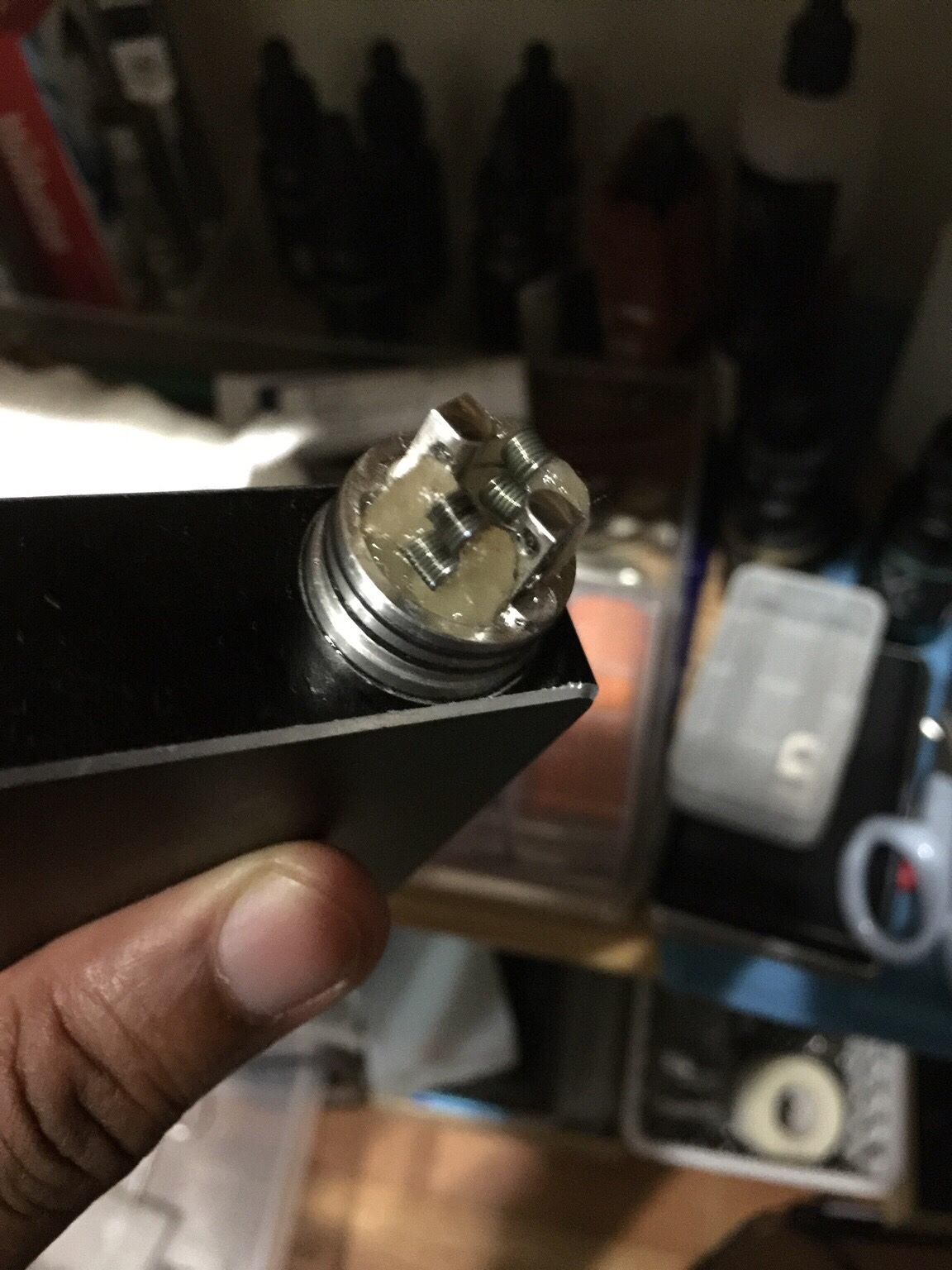

First build..sloppy.. I couldn't get the coils tight.



[d0wngrade]

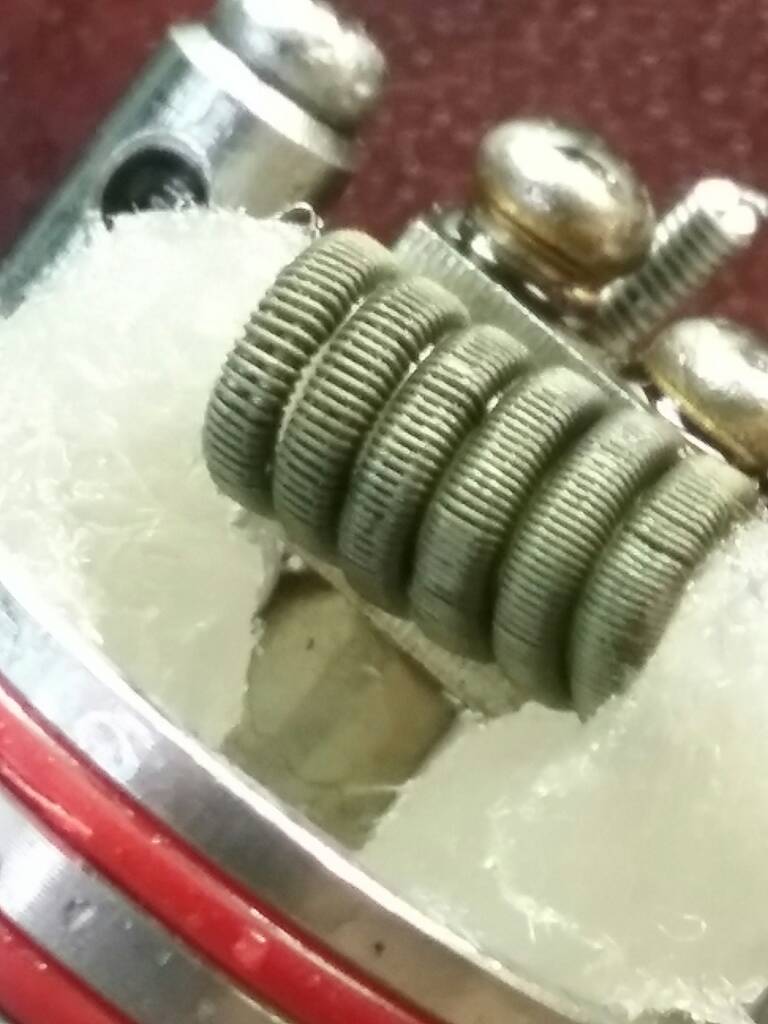

This is my first Clapton coil I've ever made. It's a 22g Nichrome core with 28g (or 30g, I don't remember...) Kanthal. It comes out to 0.12 ohms, and it vapes alright. I like hot vapes, this isn't cool but it's warm. It has a long ramp-up, but other then that it's awesome! I'm learning to do more everyday.



[CrazyChef]

Not bad looking at all! You'll be surprised how quickly you will improve as you continue to build.



[BUDKISS]

What do you recommend with nickel?
I'm trying to retain tc. I've tried fused 2x26ga ni80 core with 30g ni200 Clapton. But tc was acting weird.

You CAN mix nickel w nichrome or even kanthal and your TC will work. It reads off the lowest wire. Lock your resistance and adjust your temp down by 100 and work up until you reach cotton burn then adjust slightly for taste.
For instance you can do a Clapton or fused Clapton (I even did alien) this way. I think the fused Clapton or staggered Clapton or alien are amazing this way in TC



[ironman]

You CAN mix nickel w nichrome or even kanthal and your TC will work. It reads off the lowest wire. Lock your resistance and adjust your temp down by 100 and work up until you reach cotton burn then adjust slightly for taste.
For instance you can do a Clapton or fused Clapton (I even did alien) this way. I think the fused Clapton or staggered Clapton or alien are amazing this way in TC

So, the build I posted should have worked?

Fused 26ga Nichrome with 30ga ni200 Clapton? What do u think went wrong?



[BUDKISS]

in theory yes. If you set the resistance and then adjust the temp accordingly.
You will need to use ni200 as the core though.



[ironman]

This shit hits like a mofo. 2x twisted nichrome80 with 30g nichrlme80 Clapton. Takes a little bit to kick but super flavor



[Number3124]

This shit hits like a mofo. 2x twisted nichrome80 with 30g nichrlme80 Clapton. Takes a little bit to kick but super flavor

Oh wow... what gauge for the core? Also, is the twisted the core or the wrap?



[ironman]

Oh wow... what gauge for the core? Also, is the twisted the core or the wrap?

26ga twisted core



[TF Vaping]

Just a little try to see if I could do it

Sent from my Nexus 6 using Tapatalk



[scarecrowjenkins]

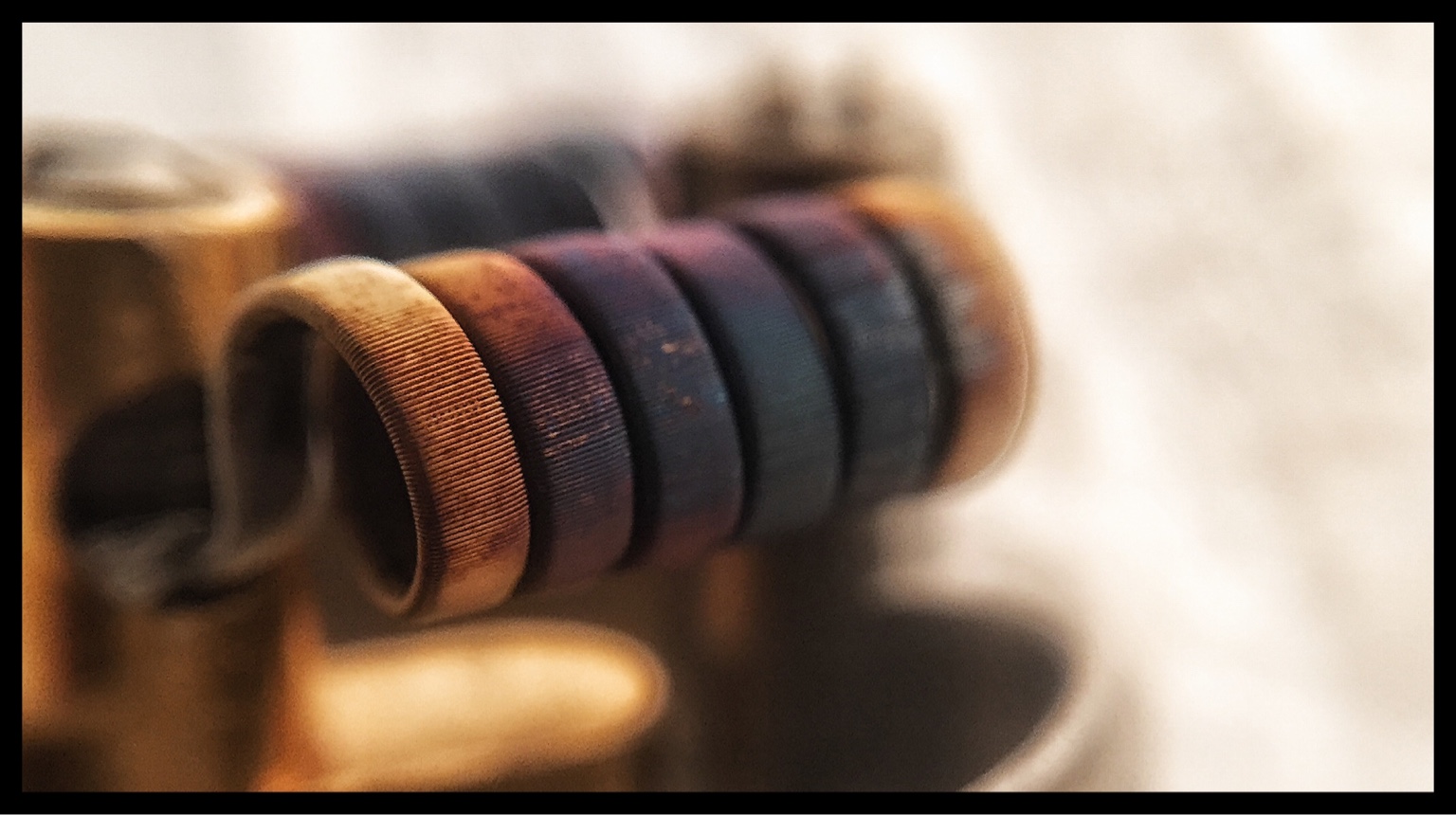

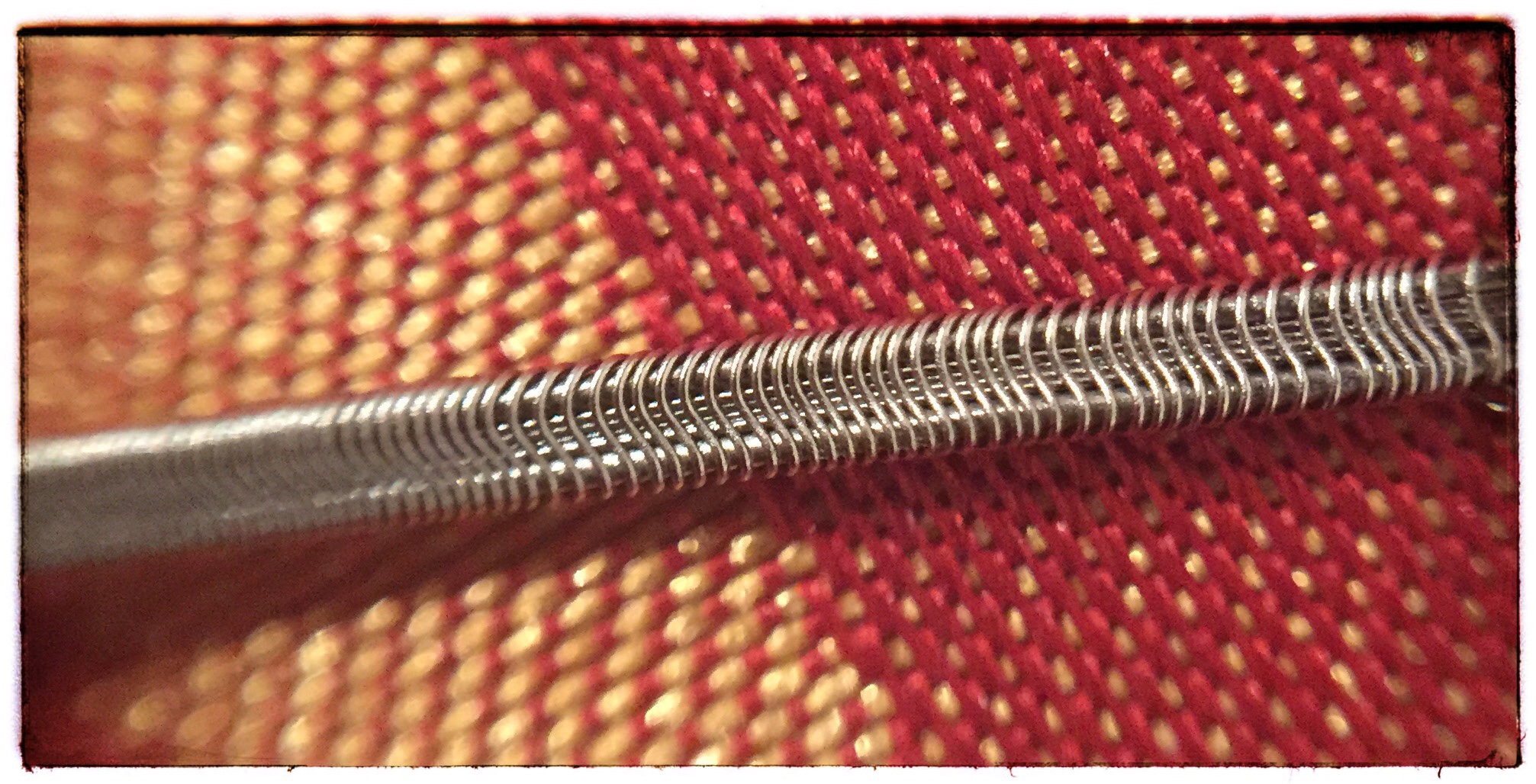

Been a while since i posted! Made some framed stapled fused claptons this evening.
8x .3mm ribbon framed with 2x 30g N80
Wrapped up in 42g N80 courtesy of twistedmesses. Had to go 6 wraps w/ a 3mm inner diameter to get it over the .1 limit on the Sigelei. Flavor is bonkers. Vapors are terrific.

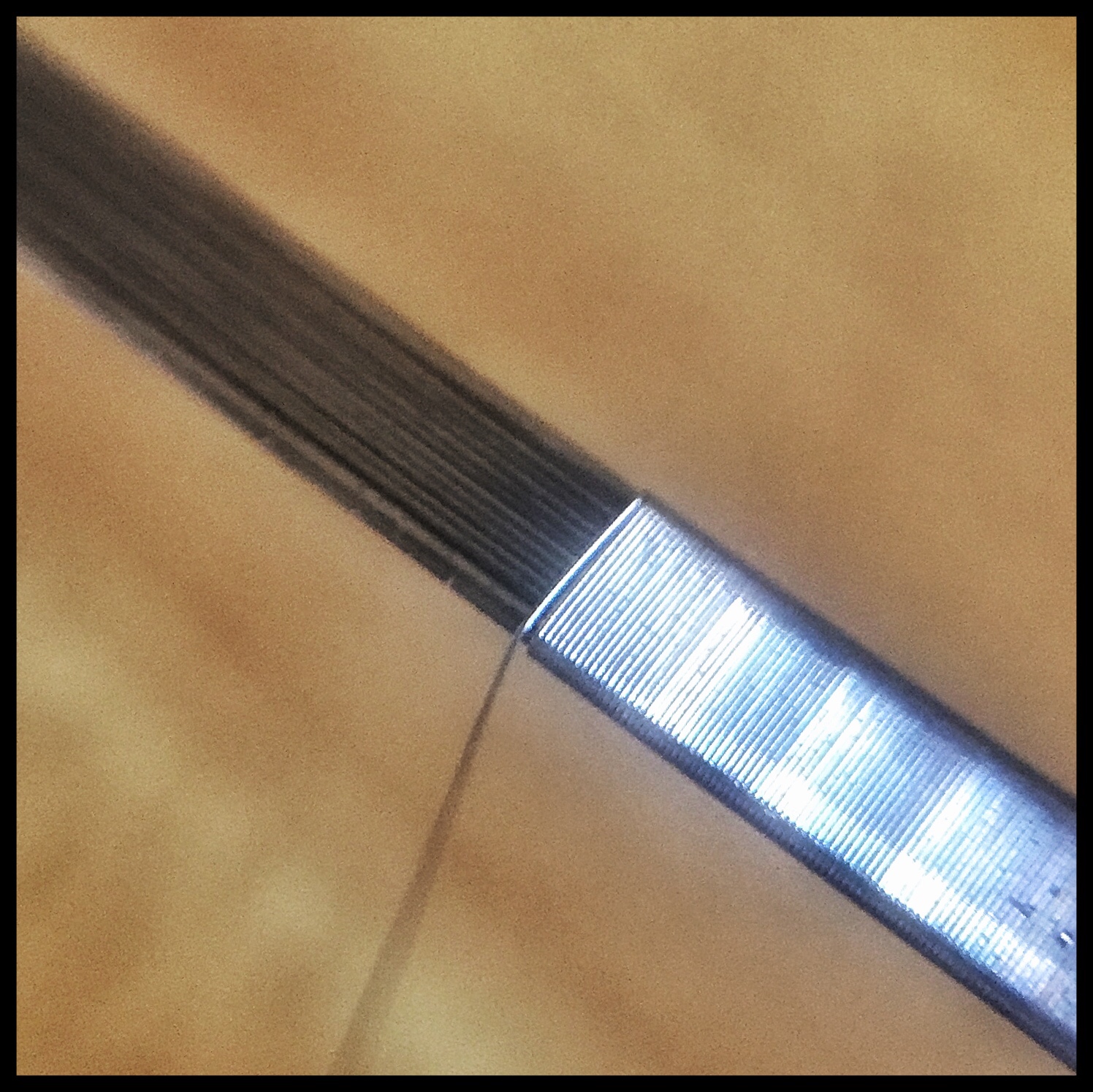

To give a better idea of the composition here's a shot of 10x .3 ribbon/2x 28g i made a few nights ago-just in case yer not familiar with the makings of a framed staple



[TF Vaping]

Sent from my Nexus 6 using Tapatalk



[TF Vaping]

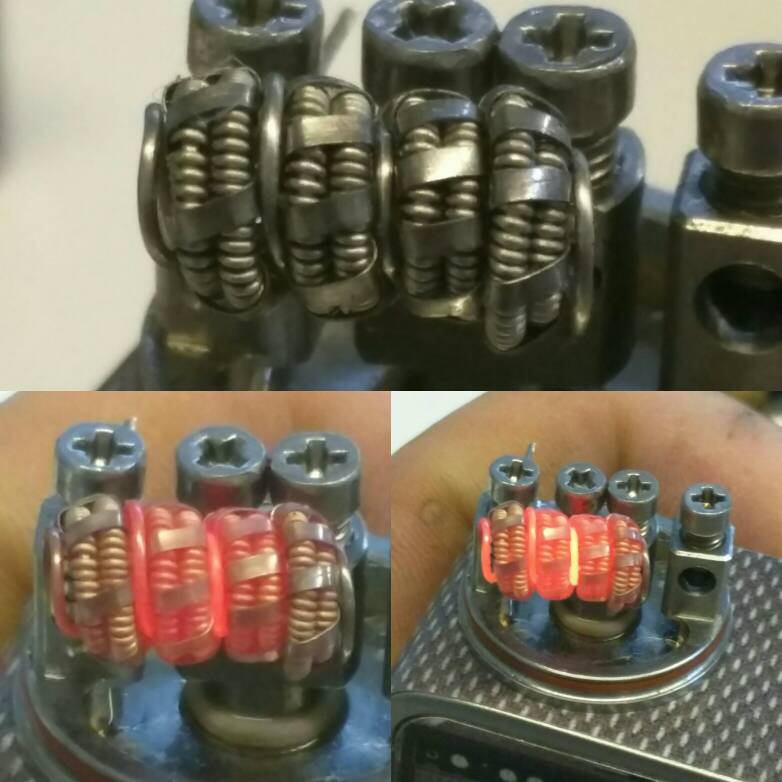

Staged zipper coil

Sent from my Nexus 6 using Tapatalk



[itsmenotyou]

Dude that's beautiful stuff
I don't know why it didn't quote you though lol
sent from a dumb operated smart phone



[ej1024]

I ran out of 22g NICHROME practicing that damn fused Clapton, but you know what this single twisted 22g NICHROME 2,5 diameter is LEGIT!!


VAPE ON

Follow up.

And so i did a dual twisted 5 wraps 22g NICHROME 80 2.5 diameter reading at .16,
MY CLASSIC SIG150 was getting WARM to touch, I have 8 pairs of 18650, only the Samsung yellow can handle it inside the sig150 Classic,
I decided to use my Big Bang box mods unregulated parallel 18650 and all my battery works just fine without getting WARM/HOT..
Conclusion....
This is subjective!!
If you enjoy subohming please make sure ur batteries are CAPABLE!!
It doesn't matter if your using a regulated box mod, if ur batteries are old or UN capable of the AMPS REQUIRED by ur coils!! I suggest get new batts or switch ur mod to a parallel box mod...
Batteries in series sequence will double ur VOLTS
BATTERIES in parallel will double ur MAH and it will split the AMPS required, so with that being said
BE SAFE AND VAPE ON



[ej1024]

BTW that's 8 pulls pure flavor not temp control crap!! I could probably get 12 pulls but the vid getting too long the server might not take it!!
Be safe and VAPE on!


VAPE ON



[itsmenotyou]

2x24kanthal with 36 ga n80 Clapton 5 wrap .27 ohm

sent from a dumb operated smart phone



[BreeZyCloudZ]

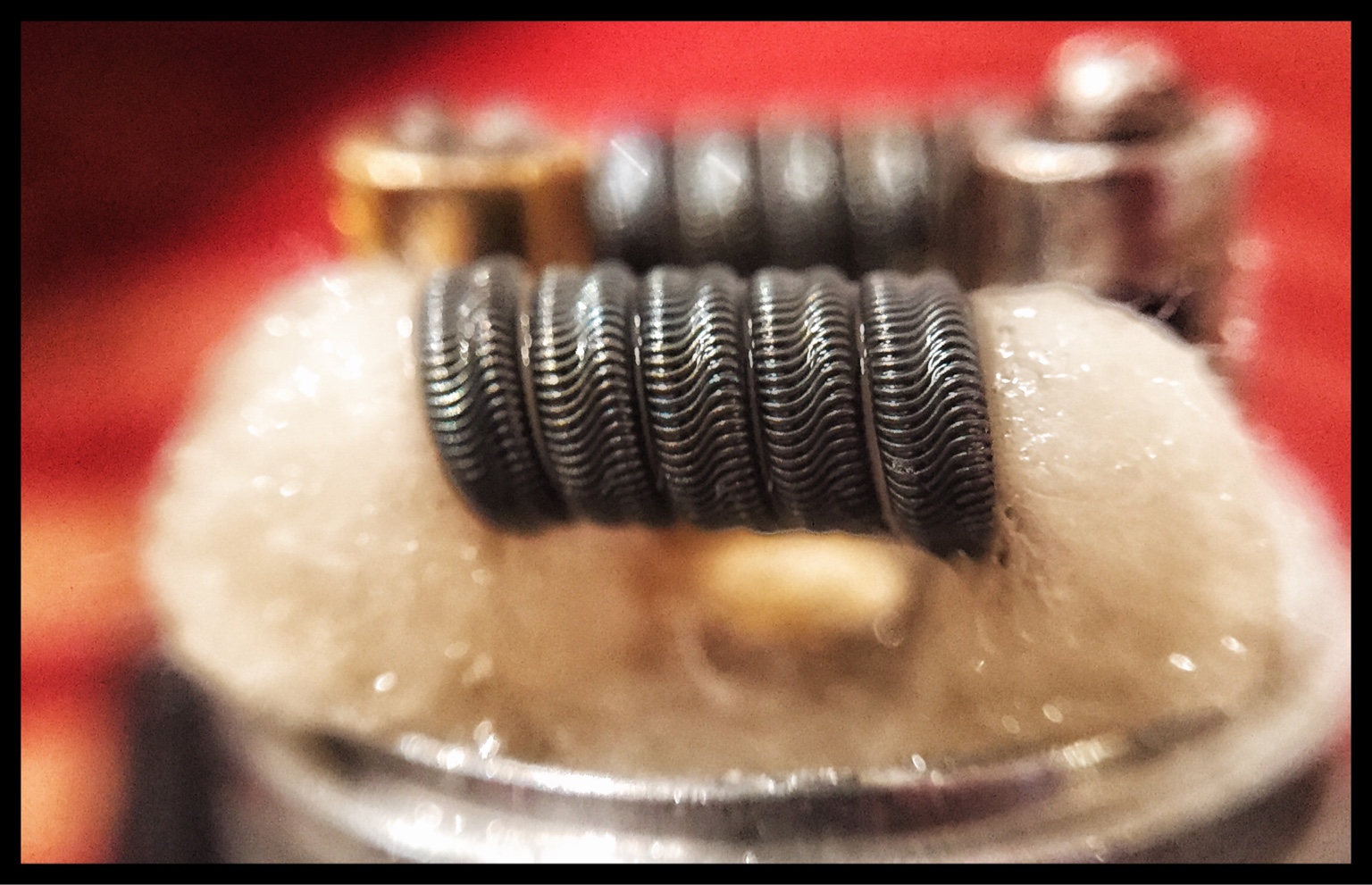

Dual fused clapton, two 26G Ni80 claptoned with 40G Ni80, 7 wraps around 2mm at .2ohms



[gibgab6]

My first try with twisted 24 gauge

Sent from my HTC One_M8 using Tapatalk



[CrazyChef]

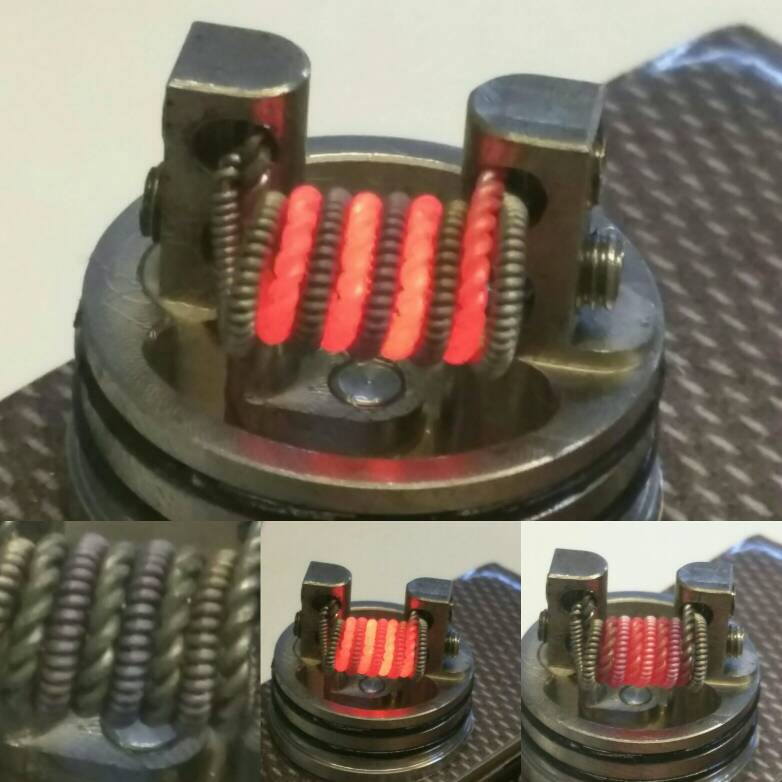

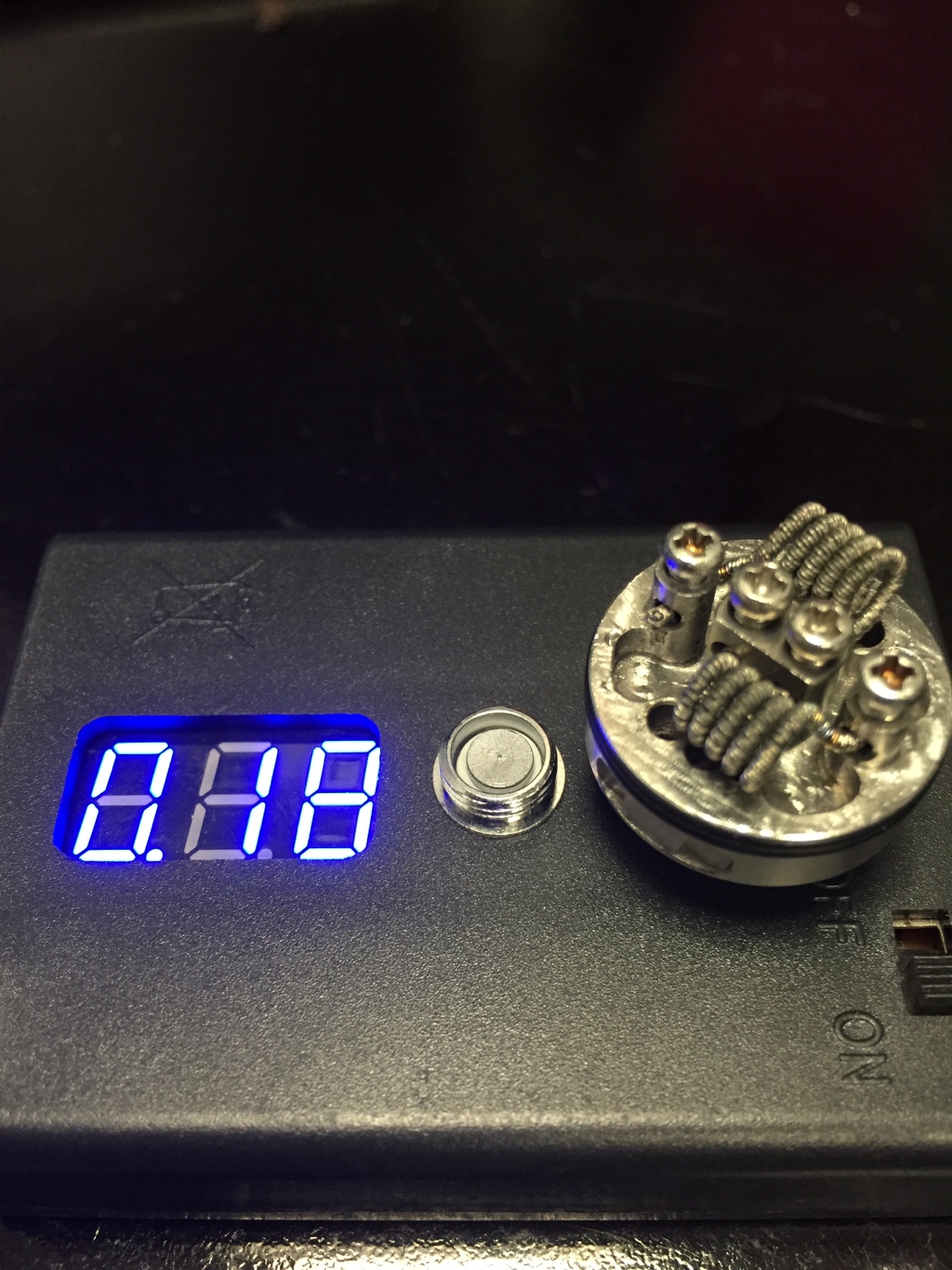

Staged Fused Clapton. This thing has both awesome flavor AND clouds. 2x28g KA1 wrapped with 36g Ni80, staged with 26g Ni80. 2.5mm ID, 0.17Ω



[BreeZyCloudZ]

Been a while since i posted! Made some framed stapled fused claptons this evening.
8x .3mm ribbon framed with 2x 30g N80
Wrapped up in 42g N80 courtesy of twistedmesses. Had to go 6 wraps w/ a 3mm inner diameter to get it over the .1 limit on the Sigelei. Flavor is bonkers. Vapors are terrific.
To give a better idea of the composition here's a shot of 10x .3 ribbon/2x 28g i made a few nights ago-just in case yer not familiar with the makings of a framed staple

When it comes to flavor, do you find smaller or bigger diameter clapton wire is better? Im almost out of my 40G Ni80, should I go bigger or smaller?



[itsmenotyou]

Dual fused clapton, two 26G Ni80 claptoned with 40G Ni80, 7 wraps around 2mm at .2ohms

View attachment 30911 View attachment 30912 View attachment 30913 View attachment 30914 View attachment 30915 View attachment 30916 View attachment 30917 View attachment 30918

What rda is that?

sent from a dumb operated smart phone



[BreeZyCloudZ]

What rda is that?

sent from a dumb operated smart phone

Its a Doge X2, combination of the Mutation X and Doge, my favorite RDA, so much room, huge postholes, and great airflow



[itsmenotyou]

Thanks man. The screws are what effed me up

sent from a dumb operated smart phone



[scarecrowjenkins]

When it comes to flavor, do you find smaller or bigger diameter clapton wire is better? Im almost out of my 40G Ni80, should I go bigger or smaller?

Smaller for sure. 40g is great, i would have to vape it side by side to tell the difference between 40g and 42g. I would stay above 38g personally. The only time i use anything larger than 38 is when i'm making aliens because 36g is a lot easier to work with for me when it comes to that particular coil. But for just wrapping clapton style 40/42g is awesome. I have not tried anything smaller than that



[BreeZyCloudZ]

Smaller for sure. 40g is great, i would have to vape it side by side to tell the difference between 40g and 42g. I would stay above 38g personally. The only time i use anything larger than 38 is when i'm making aliens because 36g is a lot easier to work with for me when it comes to that particular coil. But for just wrapping clapton style 40/42g is awesome. I have not tried anything smaller than that

Alright thanks, i just got my fused claptons perfected, i posted it a couple posts up, ill order some more 40G cause thats the smallest they have where i order, the aliens are next on my list, thanks again!



[ironman]

What rda is that?

sent from a dumb operated smart phone

Mutation xs mini



[ej1024]

Staged Fused Clapton. This thing has both awesome flavor AND clouds. 2x28g KA1 wrapped with 36g Ni80, staged with 26g Ni80. 2.5mm ID, 0.17Ω

WOW


VAPE ON



[Onlymouse88]

Saw this coil last night had to build it



[itsmenotyou]

So vu wouldn't let me post here until I used my gmail account to reconfirm my account but here's what I did today

ugly as hell forsure.

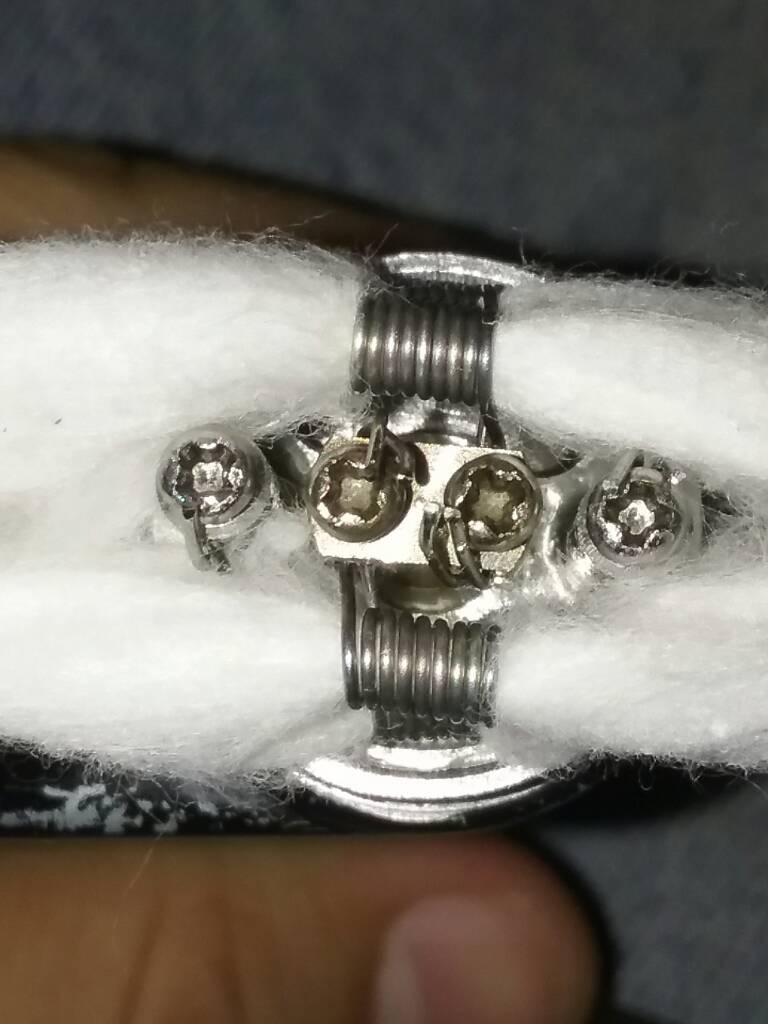

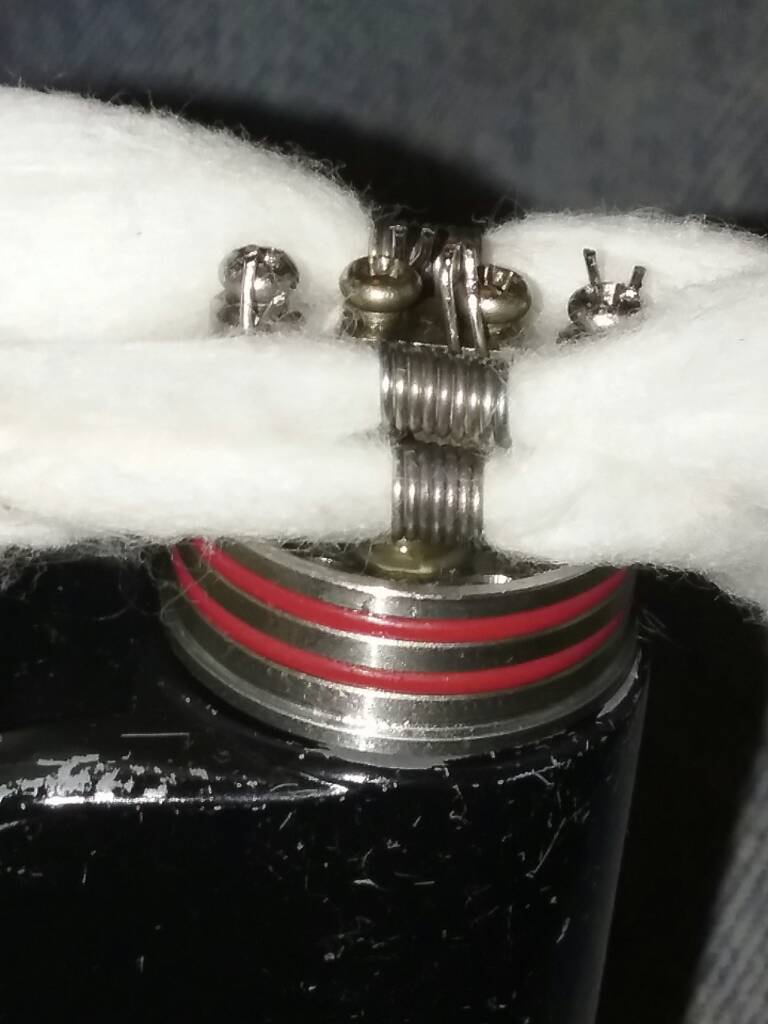

Twisted 26 ga A1 tops 2.4 mm 8 wrap. Bottems 3mm 6 wrap. .20 ohm Has a short pause followed by a quick rampup at 4.5 volts

Sent from my SM-J100VPP using Tapatalk



[scarecrowjenkins]

Alright thanks, i just got my fused claptons perfected, i posted it a couple posts up, ill order some more 40G cause thats the smallest they have where i order, the aliens are next on my list, thanks again!

No problemo! My personal opinion is that 36g is the best for alien coils. It probably has the best balance between buildability and flavor. The difficulty level jumps dramatically once you go over 36g, or at least it did for me haha



[ironman]

Fused 26ga ni80 with 38ga ni80 clap tons. Hits like a mofo and tasty



[CrazyChef]

Looks good! Fused Claptons are my "go to" coil now. I haven't tried making aliens yet. Gonna try my first one tonight.



[CrazyChef]

Didn't come out very well. Gotta practice some more!



[ej1024]

So vu wouldn't let me post here until I used my gmail account to reconfirm my account but here's what I did today

ugly as hell forsure.
Twisted 26 ga A1 tops 2.4 mm 8 wrap. Bottems 3mm 6 wrap. .20 ohm Has a short pause followed by a quick rampup at 4.5 volts

Sent from my SM-J100VPP using Tapatalk

OMG


VAPE ON



[BUDKISS]

Didn't come out very well. Gotta practice some more!

Oh Yeah. The practice part of the alien wire build takes so much time and patience and (tons of wasted wire) wire. Ugh. I found for folks that i have taught how to do this is to start with three 24g K and 32gK outer wrap. It gives you an idea on how to do so without twisting wire and messing up the outer wrap. Once you can nail that coil without mistakes then move to 3 x 26g and 34g.... then 3 x 28g and 36g.... when you get it down you can nail 3x30g with 40g outer (which is tough, really tough to build flawless but amazing to vape).
I have been playing with a 3x28 with 38 outer and staging it with a single 24g Ni80. A M A Z I N G !!!



[ej1024]

Nothing special.
Quad coil
26 g NICHROME
8 wraps
2.5 diameter
FLAVOR/VAPOR
0.2 hitting it at 80 watts.



VAPE ON



[scarecrowjenkins]

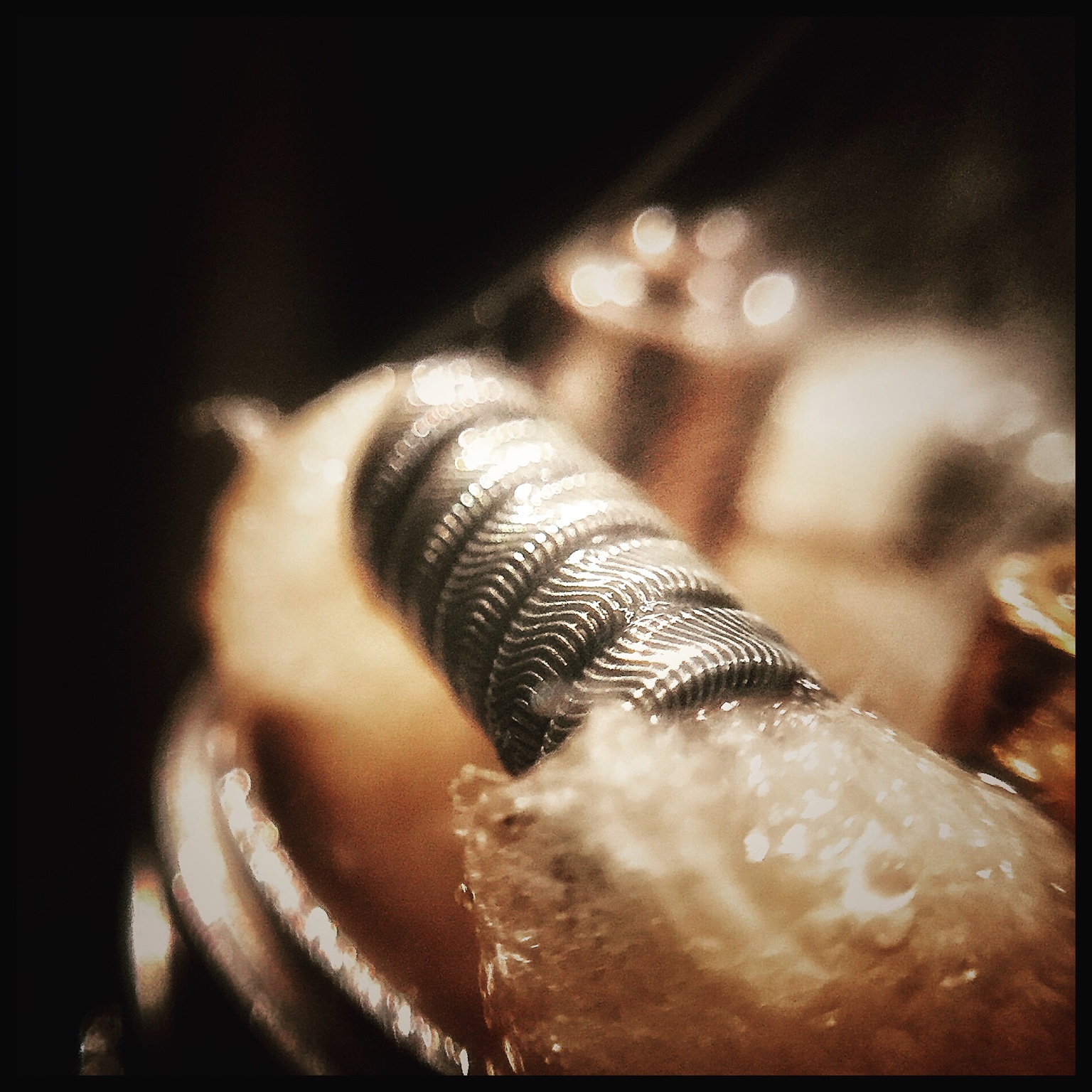

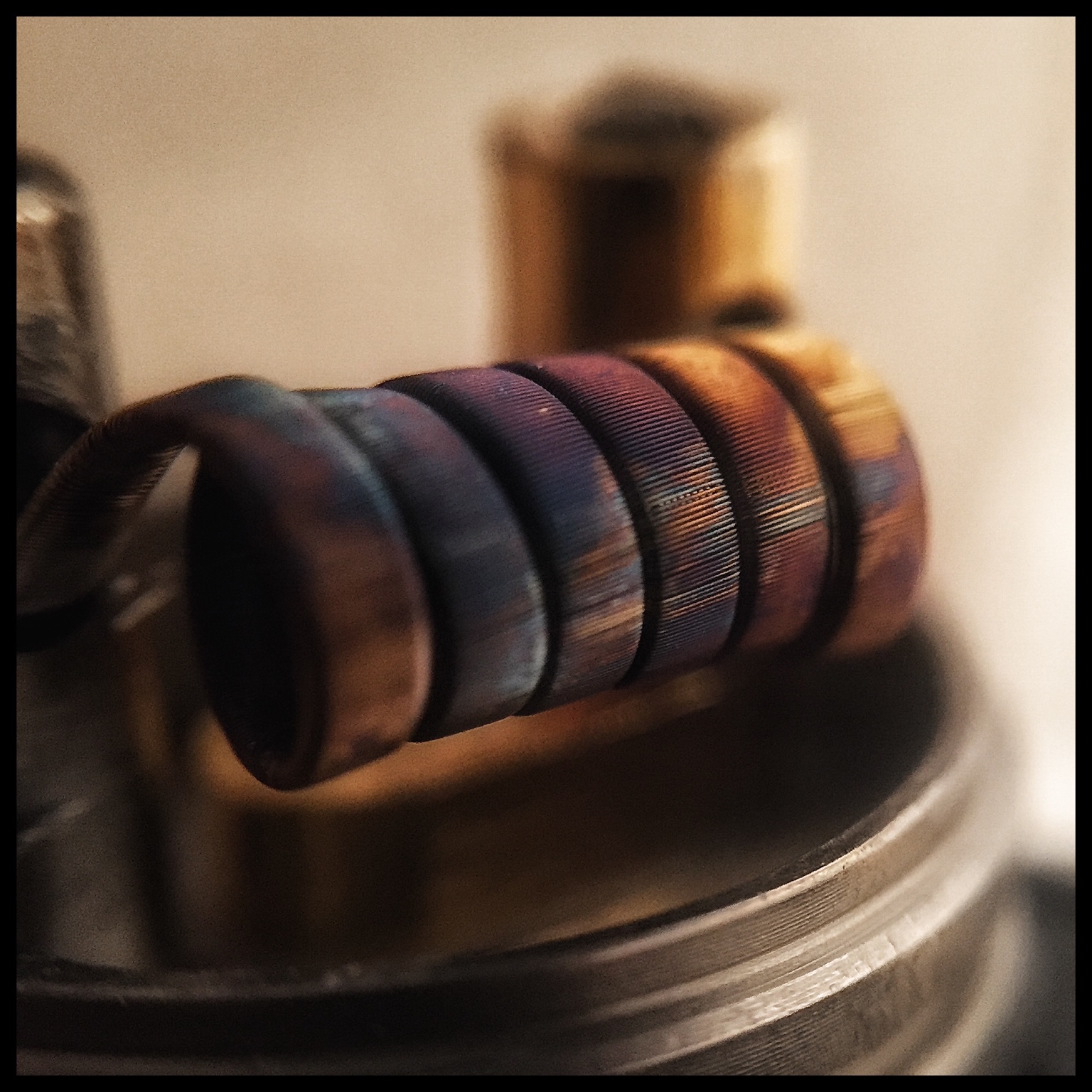

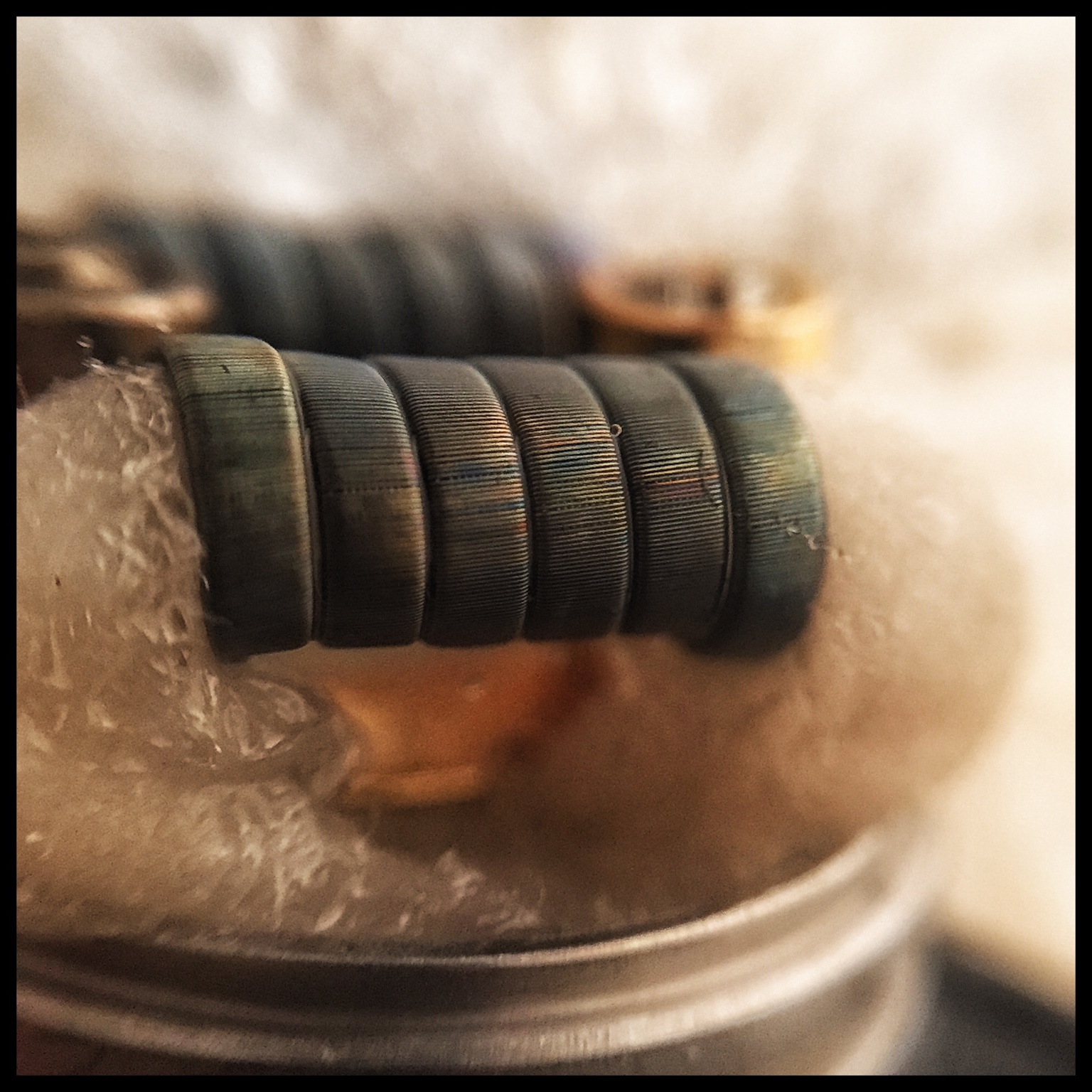

Framed Stapled Aliens.
~6 ply .3mm ribbon
~26g A1 frames
~Wrapped in 36g N80
Dual 5 wraps around a 2.4mm bit fires right at .1 ohms. I had to dry fire each coil individually to get them up over the .1 mark for the sigelei, which was a frustrating process. I was very eager to vape these.
Vaped about 5mls on these so far. They're quite dreamy. Flavor is very articulate, and very complex. Kinda like having a front seat to the marching band, where you can hear each individual instrument.....in your mouth. Vapor production is smooth and dense. And plentiful.
Anyways, now onto the fun part....PICS!

And here's a piece of the end where the wire ran out so you can see the insides a bit, since thats where all the magic happens



[ej1024]

OMG


VAPE ON

How's the VAPE?


VAPE ON



[VapeRN]

Framed Stapled Aliens.

I may have just popped coil wood over this. Beautiful.


Sent from my iPhone using Tapatalk
