Share your CoilPorn / Specialty Coil Builds / Advanced Building Techniques

[sleepyi]

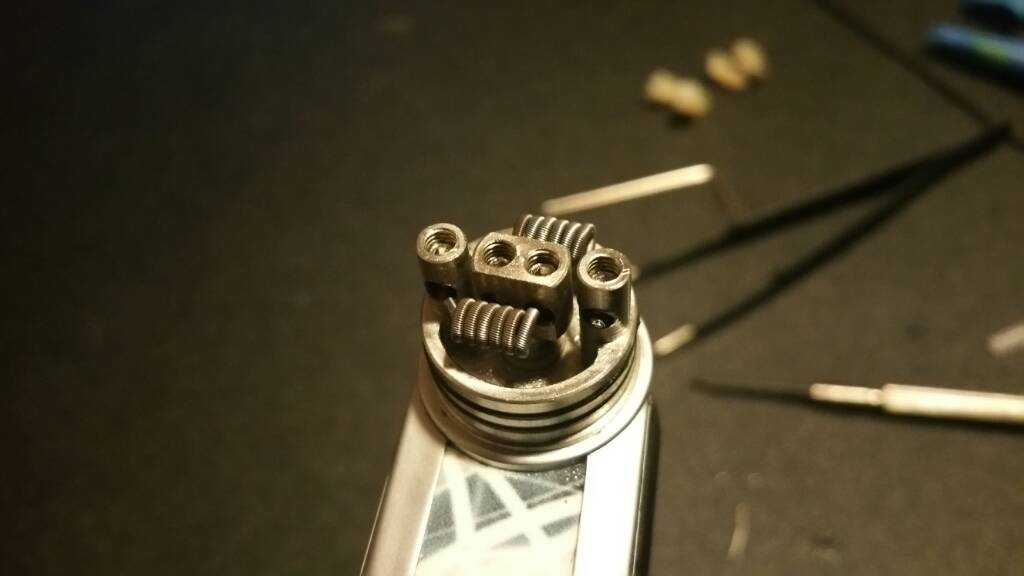

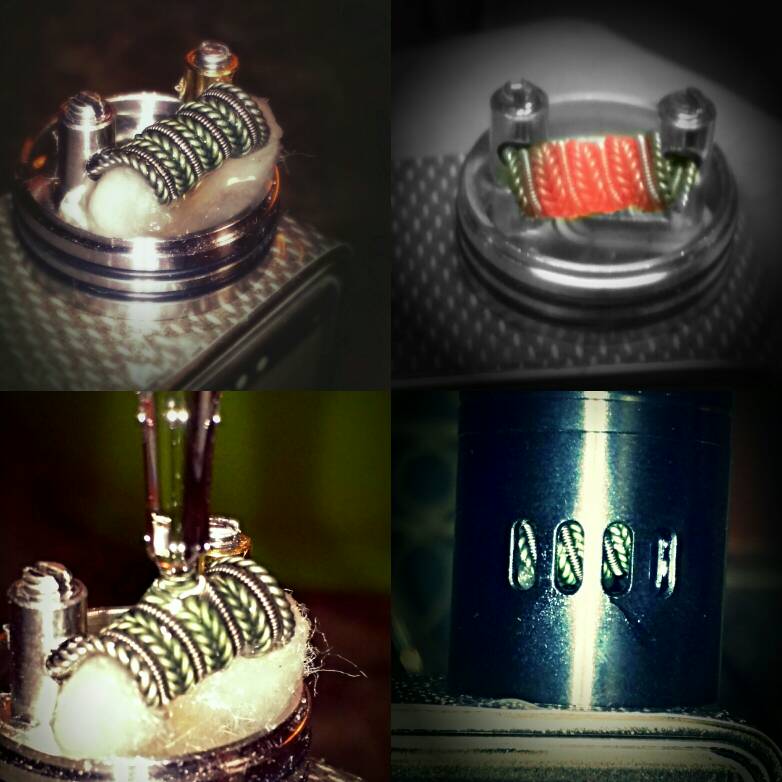

Pulled these coils out to be replaced with a NiCr80 build. Also, I hand wrapped these wires as I don't own a drill or a swivel/rotating-thing-thing. Only tools I used to make the wire were a vice grip wrench and 2 pens. Took me roughly 10mins to wrap 10inches of the parallel strands (prep work took some time too and I was distracted chatting with my brothas on Skype).

Fused Clapton wire: 24g kanthal + 26g kanthal wrapped with 28g kanthal with id: 2.4mm. Dual coil setup resistance came out to 0.15



[ej1024]

Pulled these coils out to be replaced with a NiCr80 build. Also, I hand wrapped these wires as I don't own a drill or a swivel/rotating-thing-thing. Only tools I used to make the wire were a vice grip wrench and 2 pens. Took me roughly 10mins to wrap 10inches of the parallel strands (prep work took some time too and I was distracted chatting with my brothas on Skype).

Fused Clapton wire: 24g kanthal + 26g kanthal wrapped with 28g kanthal with id: 2.4mm. Dual coil setup resistance came out to 0.15

Damn that's gonna be a thick wire
Let me try it lol hand wrap pararell quicker I think


VAPE ON



[CrazyChef]

Oh Yeah. The practice part of the alien wire build takes so much time and patience and (tons of wasted wire) wire.

Yup! I followed Squid Dude's instruction on YouTube and used 26/36 Ni80. I'll be using your suggestions next to get it right. Thanks!



[scarecrowjenkins]

I may have just popped coil wood over this. Beautiful.


Sent from my iPhone using Tapatalk

Hahaha thanks!!



[iLiptiKal]

Haven't posted in a bit and everyone is sharing some nice stuff the last couple days so I thought I'd join in. Here's some wire I've done lately followed by an interlock alien stovetop in various stages of colour.

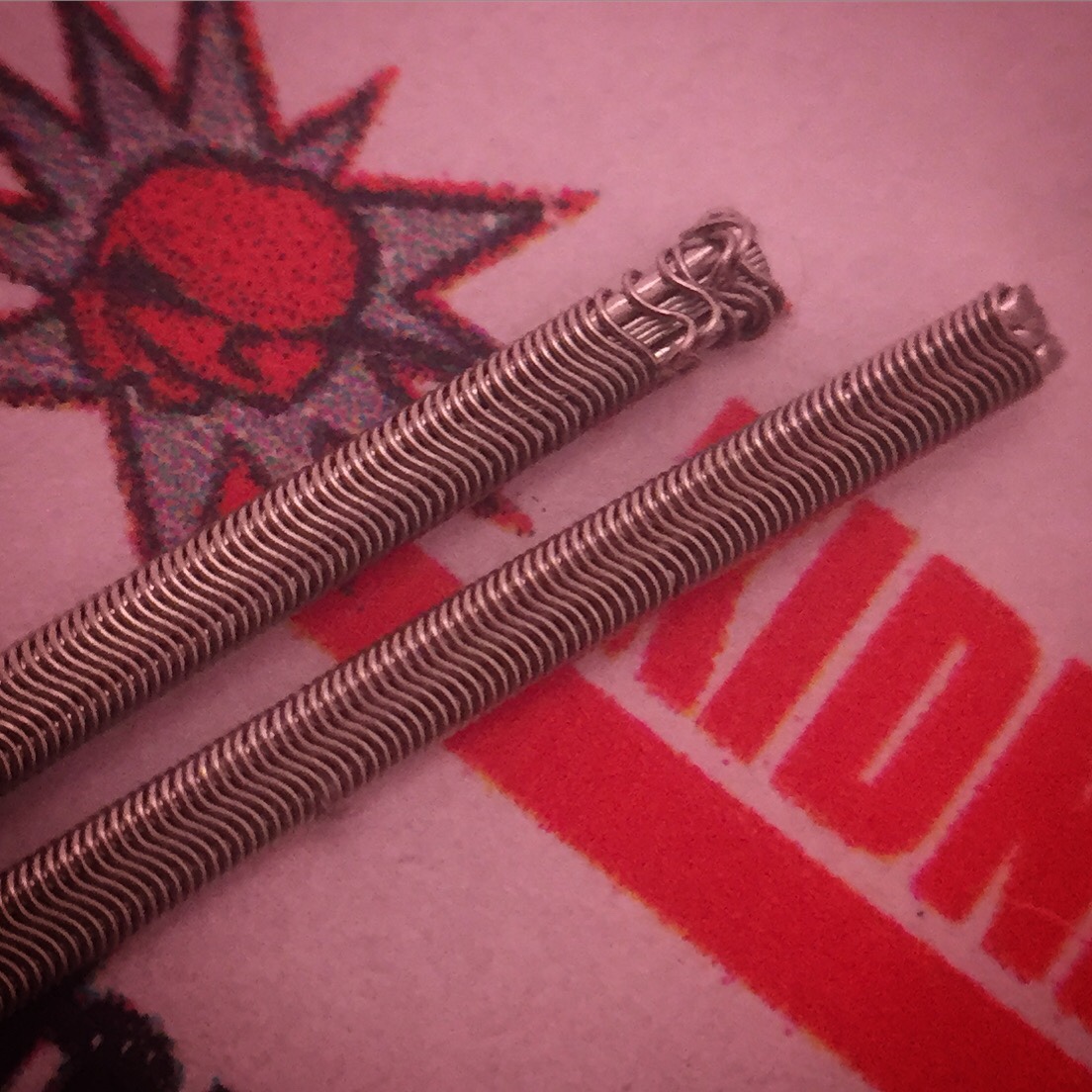

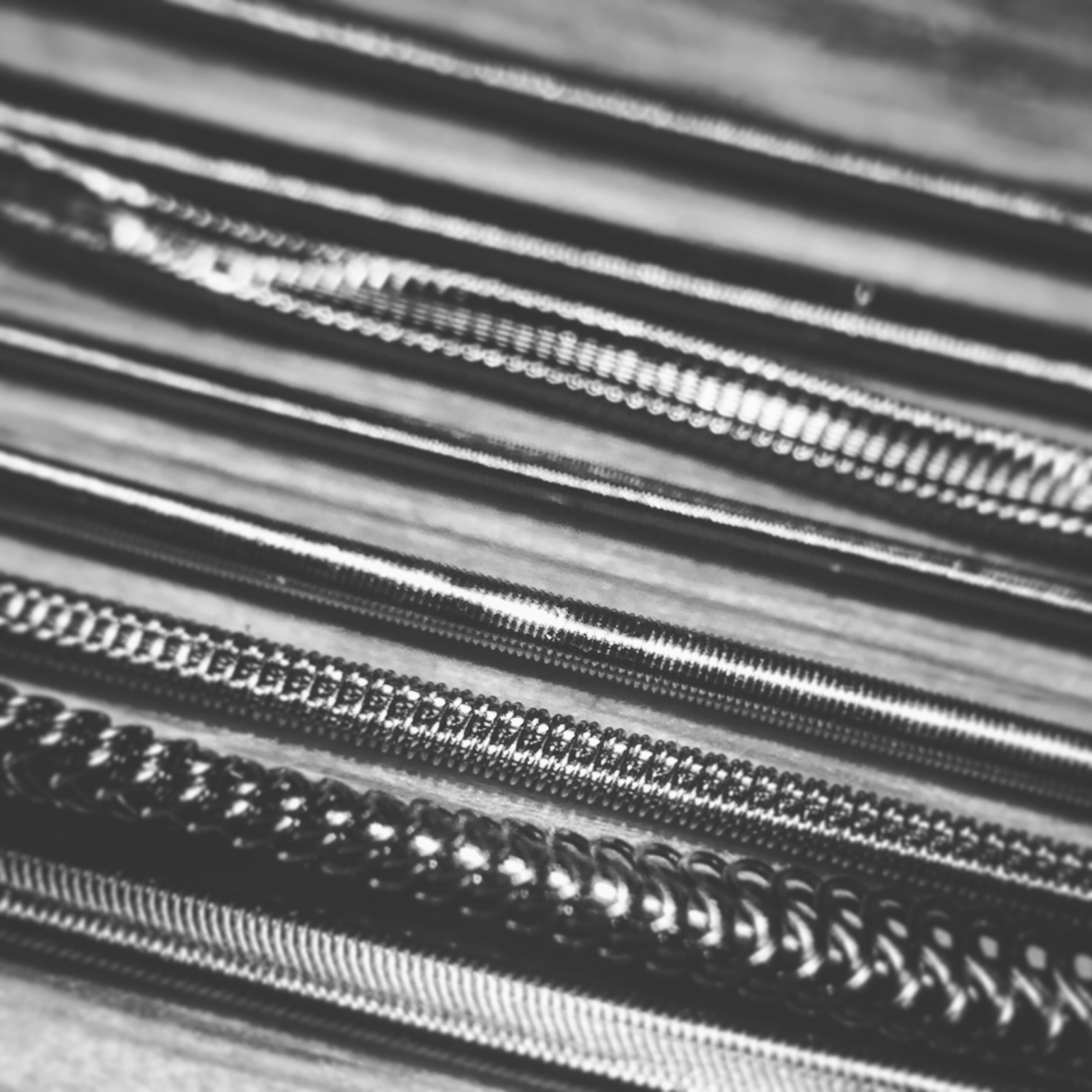

Various sticks of wire

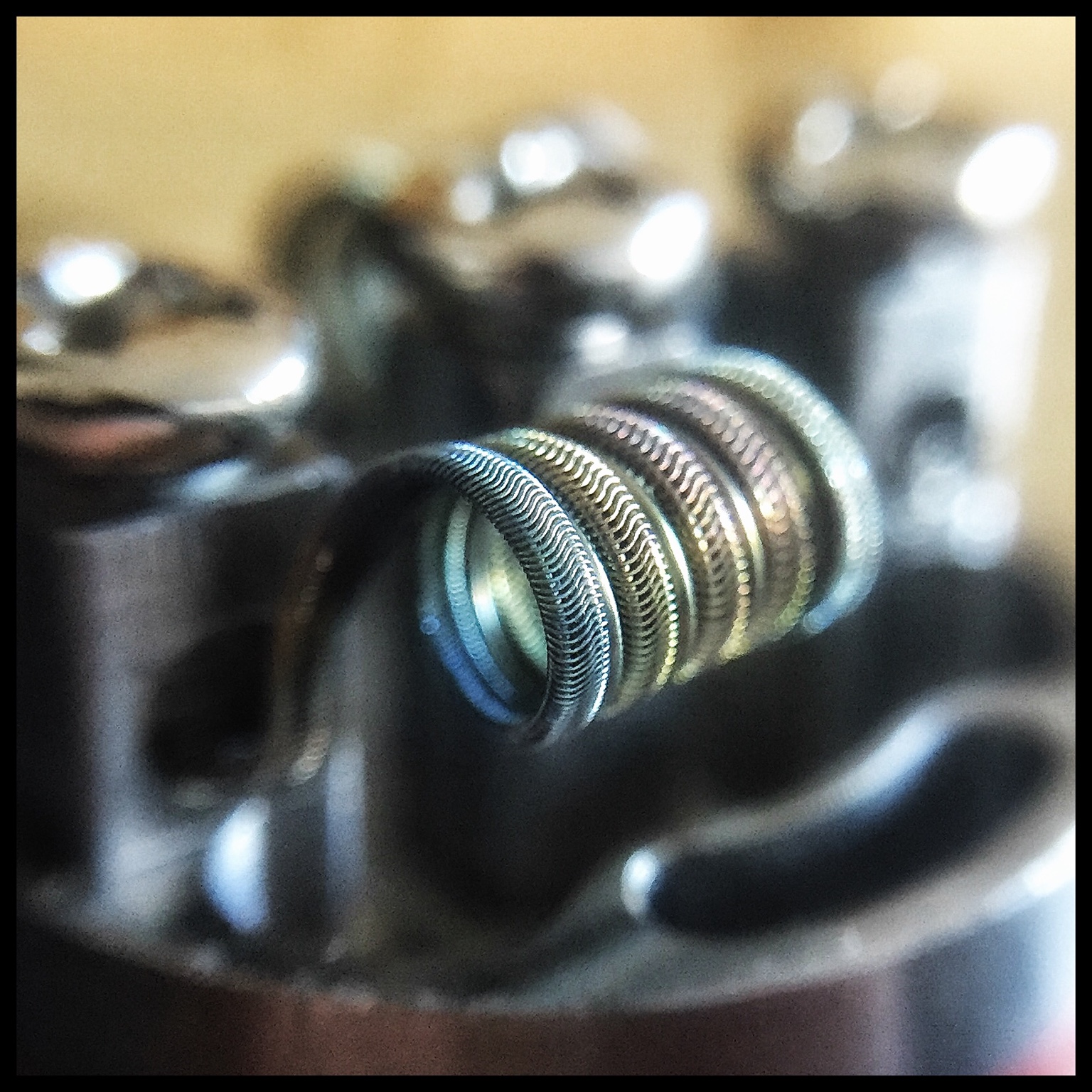

Two 32/40 fused claptons twisted, then helixed in 36

Aliens. Stapled up top triple-core on bottom. 26g cores, 36g alien. 0.5mm ribbon in the staple core.

Interlocking Alien Stovetop
2x 26g cores 2x 32g alien wraps

Sent from my iPhone using Tapatalk



[CrazyChef]

I found for folks that i have taught how to do this is to start with three 24g K and 32gK outer wrap.

Gonna try this right now.



[CrazyChef]

Okay, so, uhhh... It didn't go so well. In fact, it was awful! I'm not sure where I went wrong, but boy is it UGLY!

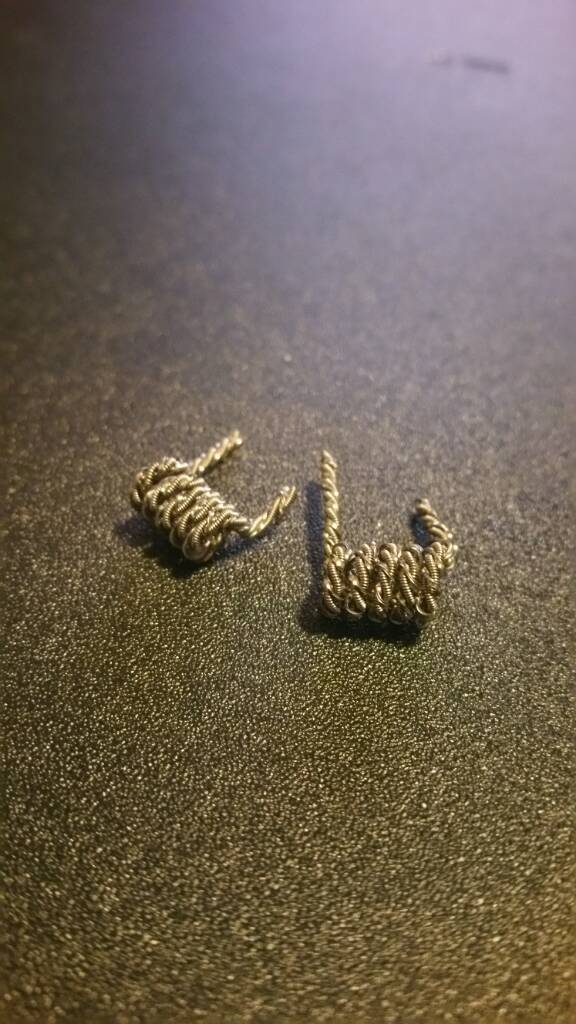

So, ladies and gentlemen, may I present to you the newest coil to be had: THE UGLY ALIEN

So I says to myself, I says "Self - I wonder if she even fires?".

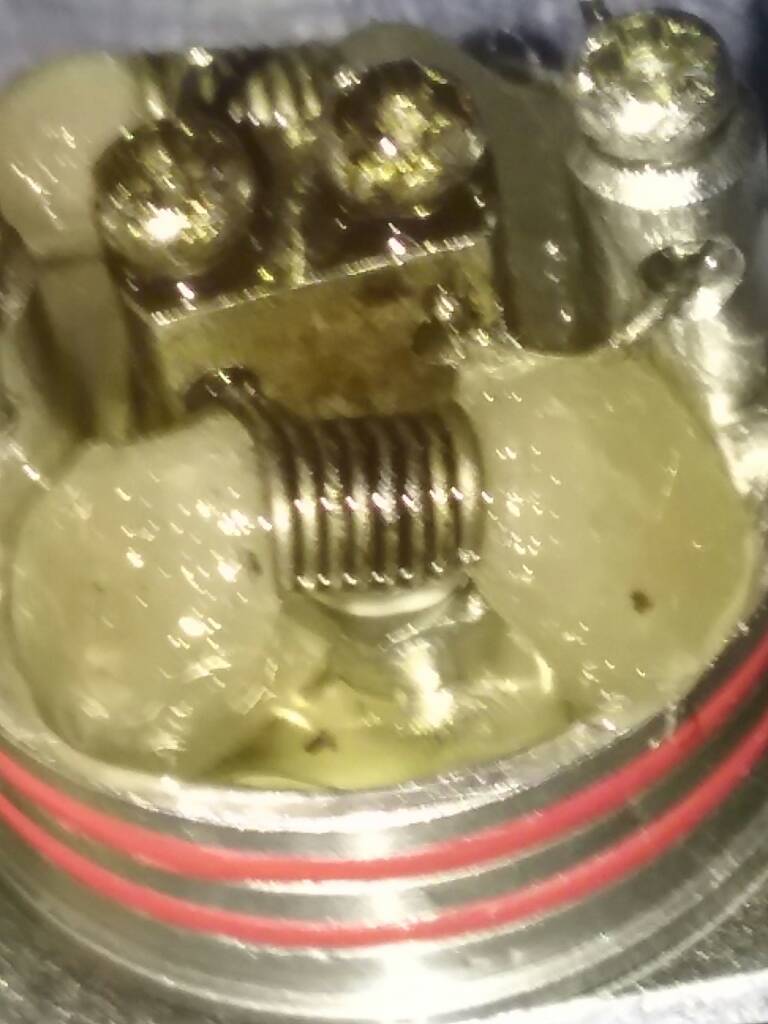

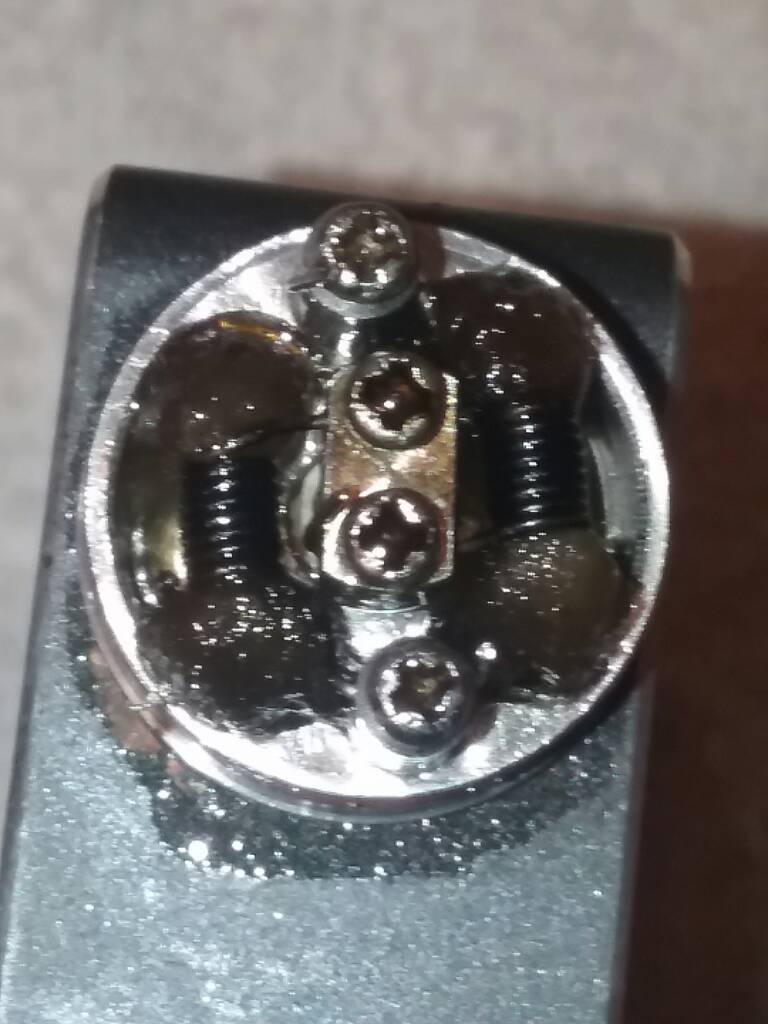

So, I mounted her up, pulsed her with absolutely no shame (okay, maybe a little), got her nice and wet, and took a pic:

Believe it or not, this ugly alien vapes pretty "not bad". I wasn't expecting that at all!
Anyways, I'll try again later. I'm pretty sure I did one of two things wrong (or both): Overstretched the wrapping wire, and/or let the boys bunch up in the middle. Can't really tell.

Here's a short video of the vapor it makes:



[blakemorder]

Okay, so, uhhh... It didn't go so well. In fact, it was awful! I'm not sure where I went wrong, but boy is it UGLY!
So, ladies and gentlemen, may I present to you the newest coil to be had: THE UGLY ALIEN

So I says to myself, I says "Self - I wonder if she even fires?".

So, I mounted her up, pulsed her with absolutely no shame (okay, maybe a little), got her nice and wet, and took a pic:

Believe it or not, this ugly alien vapes pretty "not bad". I wasn't expecting that at all!
Anyways, I'll try again later. I'm pretty sure I did one of two things wrong (or both): Overstretched the wrapping wire, and/or let the boys bunch up in the middle. Can't really tell.

Here's a short video of the vapor it makes:

That's pretty much how my last two aliens turned out

Sent from my XT1095 using Tapatalk



[itsmenotyou]

OMG


VAPE ON

Just now seen this but I only kept it for a short time. It took to much power to ramp up and vape how I like so I had to pull them and go back to a tried and true 24ga duals at .30 lol



[ej1024]

Just now seen this but I only kept it for a short time. It took to much power to ramp up and vape how I like so I had to pull them and go back to a tried and true 24ga duals at .30 lol

Mwahahahahahajahahahahahahaha


VAPE ON



[CrazyChef]

That's pretty much how my last two aliens turned out

I may have forgotten to reverse the drill direction, also - I can't remember.



[blakemorder]

I may have forgotten to reverse the drill direction, also - I can't remember.

I usually get about 2 inches of good wire out of six, I just keep a groove. It's super frustrating because I get soo close and it messes up. I'll be trying 26g core next time to see if the bigger wire is a little easier.

Sent from my XT1095 using Tapatalk



[scarecrowjenkins]

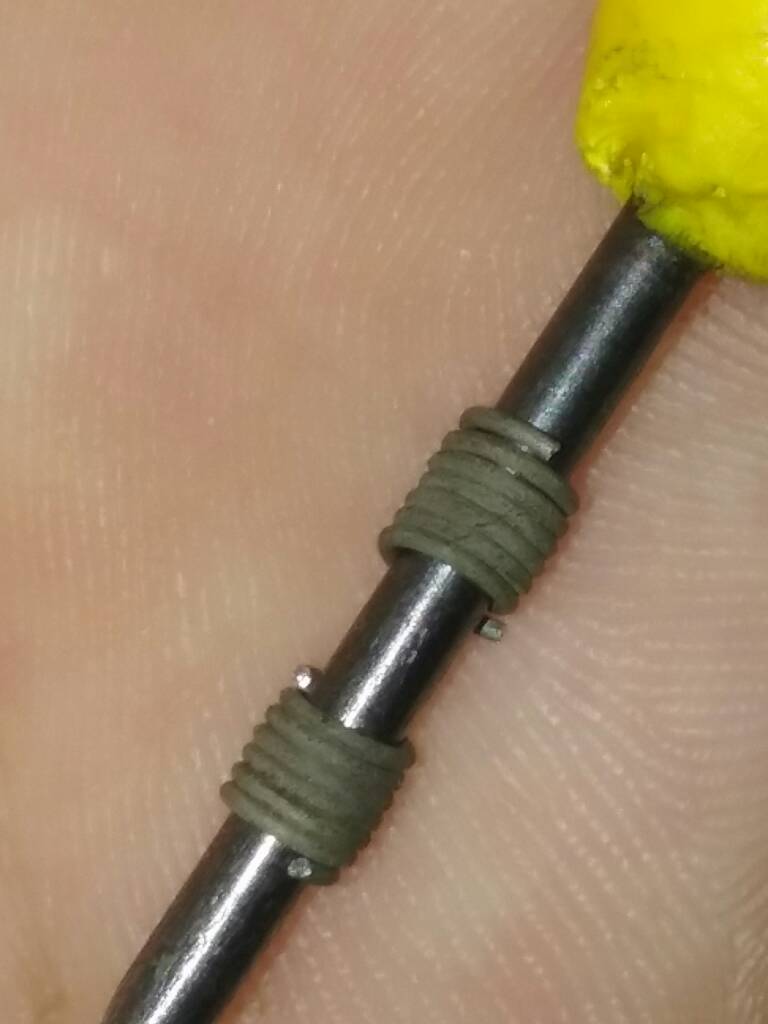

First attempt with 42g Aliens. 30g cores paralleled w/ 28g all Nichrome build. I'll edit this after i vape on em, i haven't had a chance to wick 'em up yet. All i can say is that 42g poses some unique and unexpected challenges



[itsmenotyou]

Man that 3milky musketeers is a coil killer. But it's so damn good.

sent from a dumb operated smartphone



[itsmenotyou]

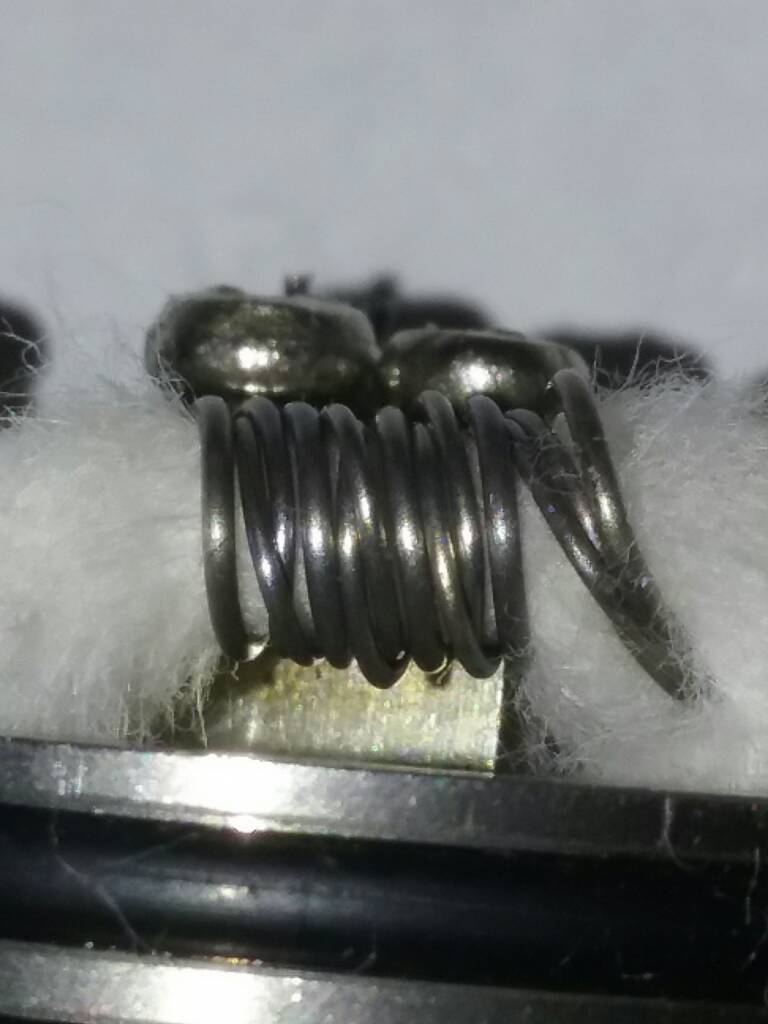

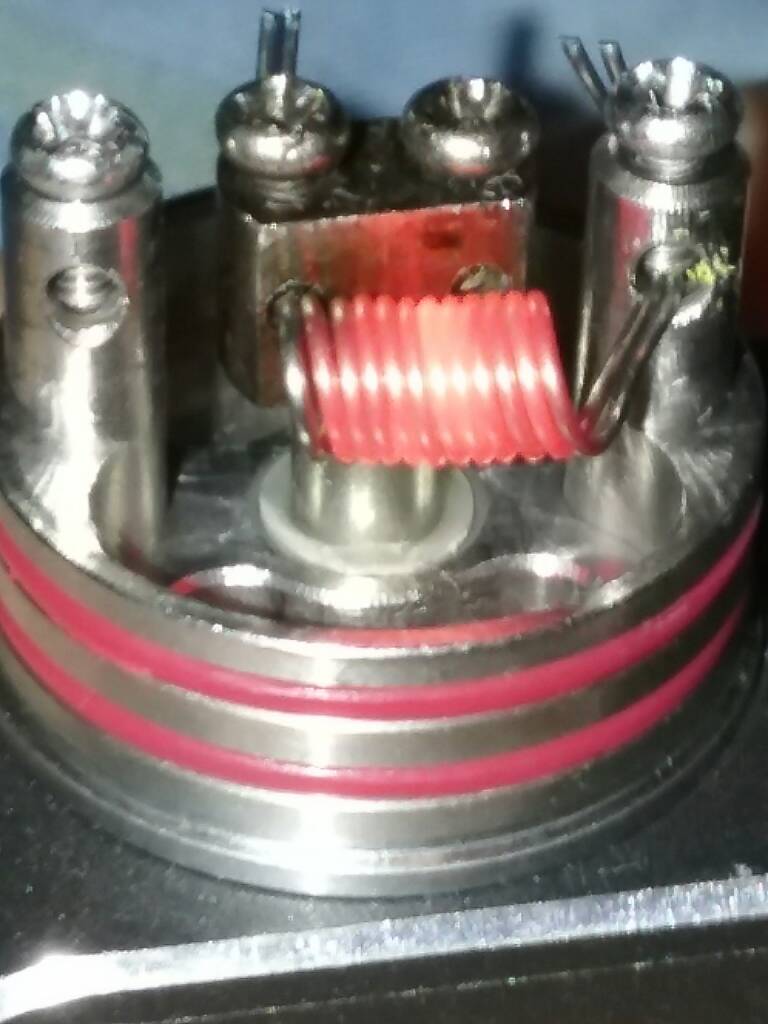

24ka1 2.4mm 7 wrap at .31^^

sent from a dumb operated smartphone



[CrazyChef]

Oh Yeah. The practice part of the alien wire build takes so much time and patience and (tons of wasted wire) wire.

By George, I think I've got it!

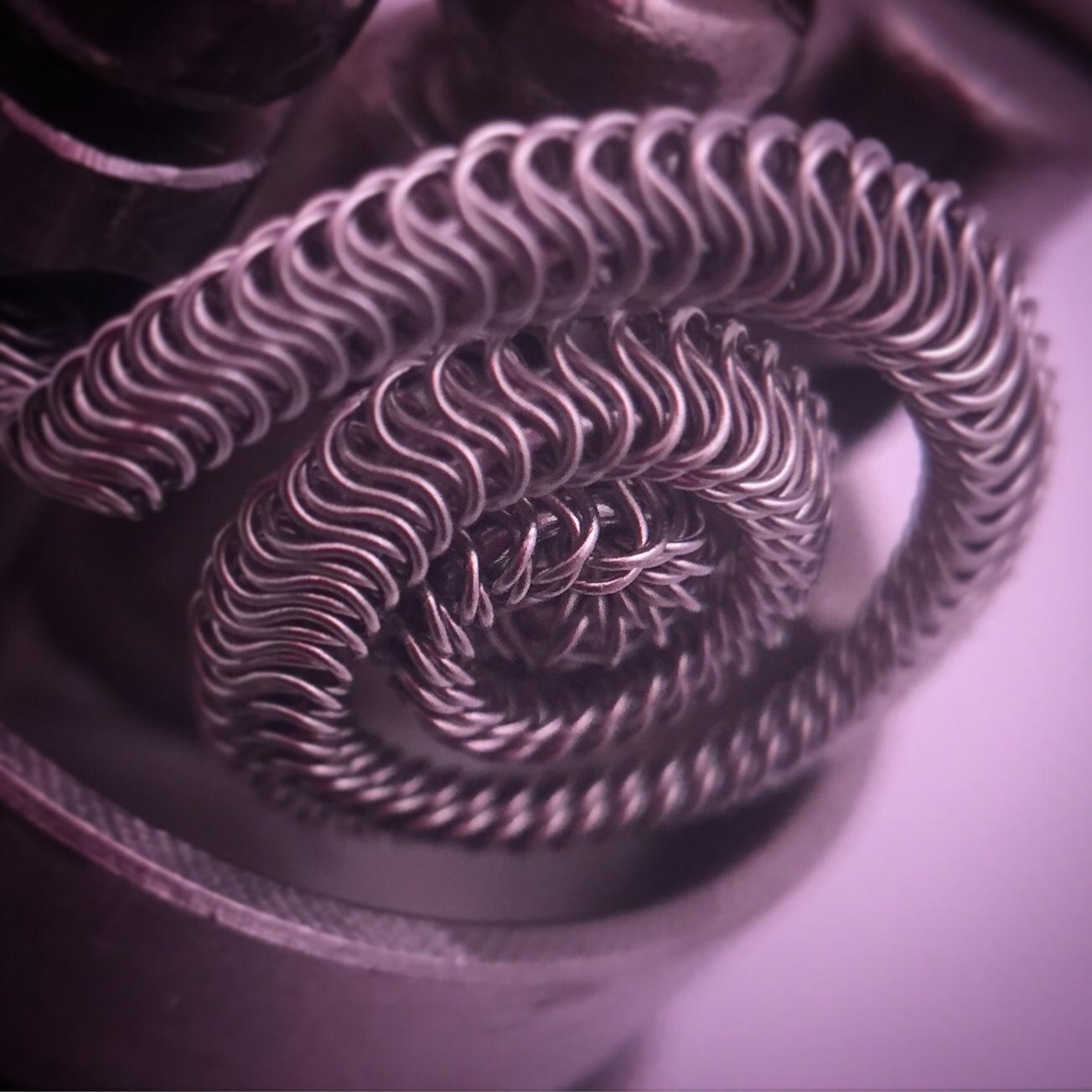

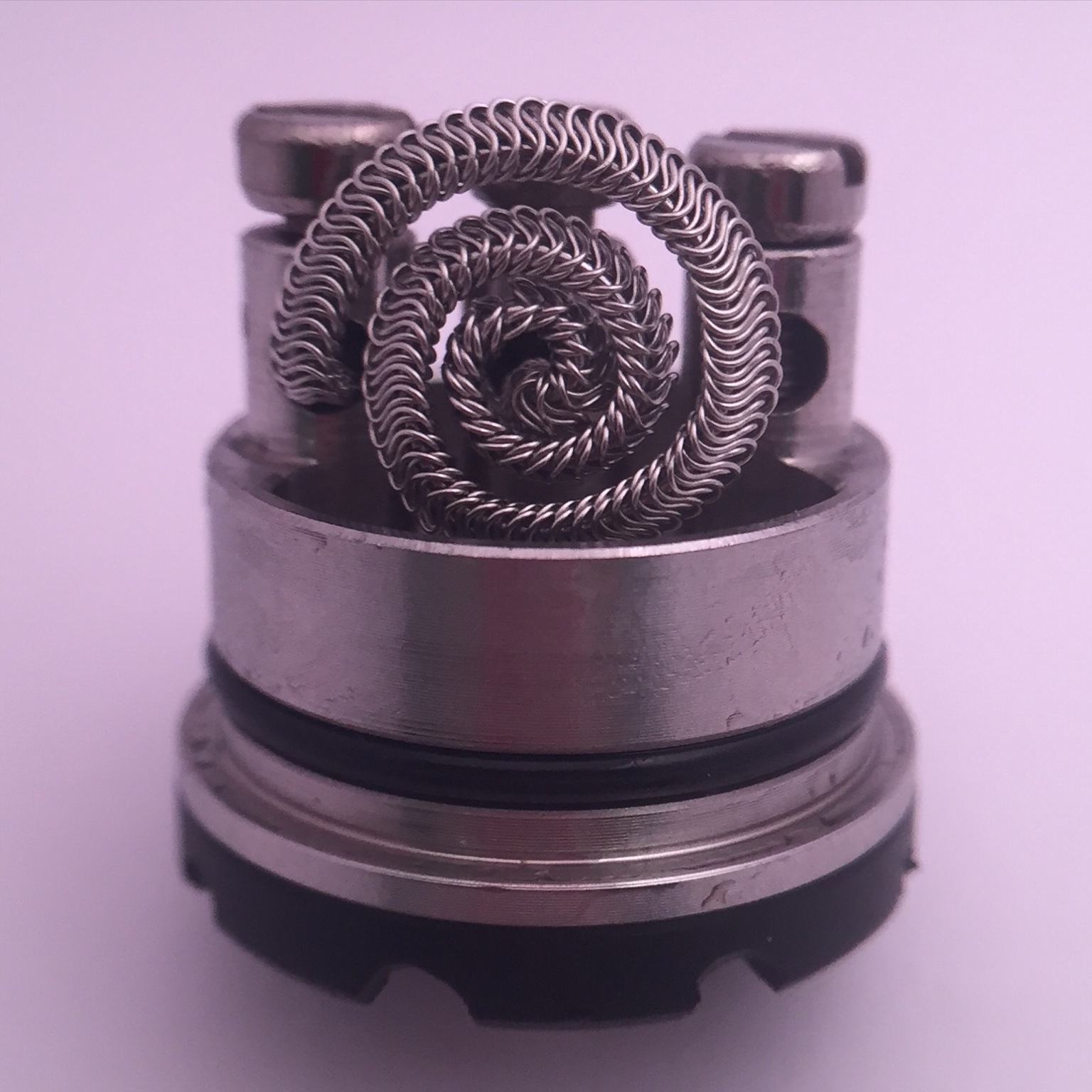

28/32 N80 Alien, 24 N80 staging, 2.5mm ID, 0.21Ω



[VapeRN]

^ that's a lot of metal. Can that measly wisp of cotton keep up with that beast?


Sent from my iPhone using Tapatalk



[CrazyChef]

Yup!
Damn thing is 13mm wide!



[blakemorder]

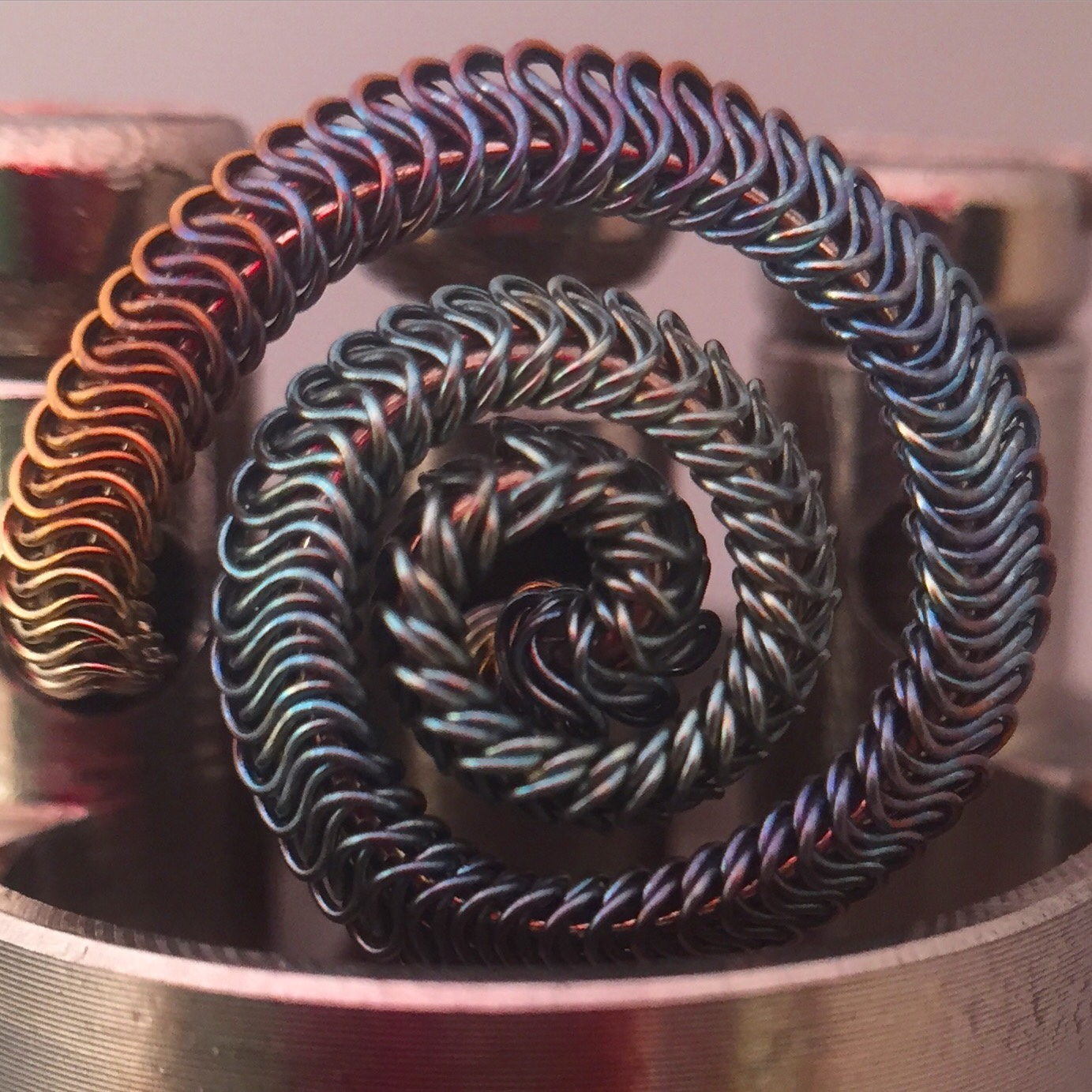

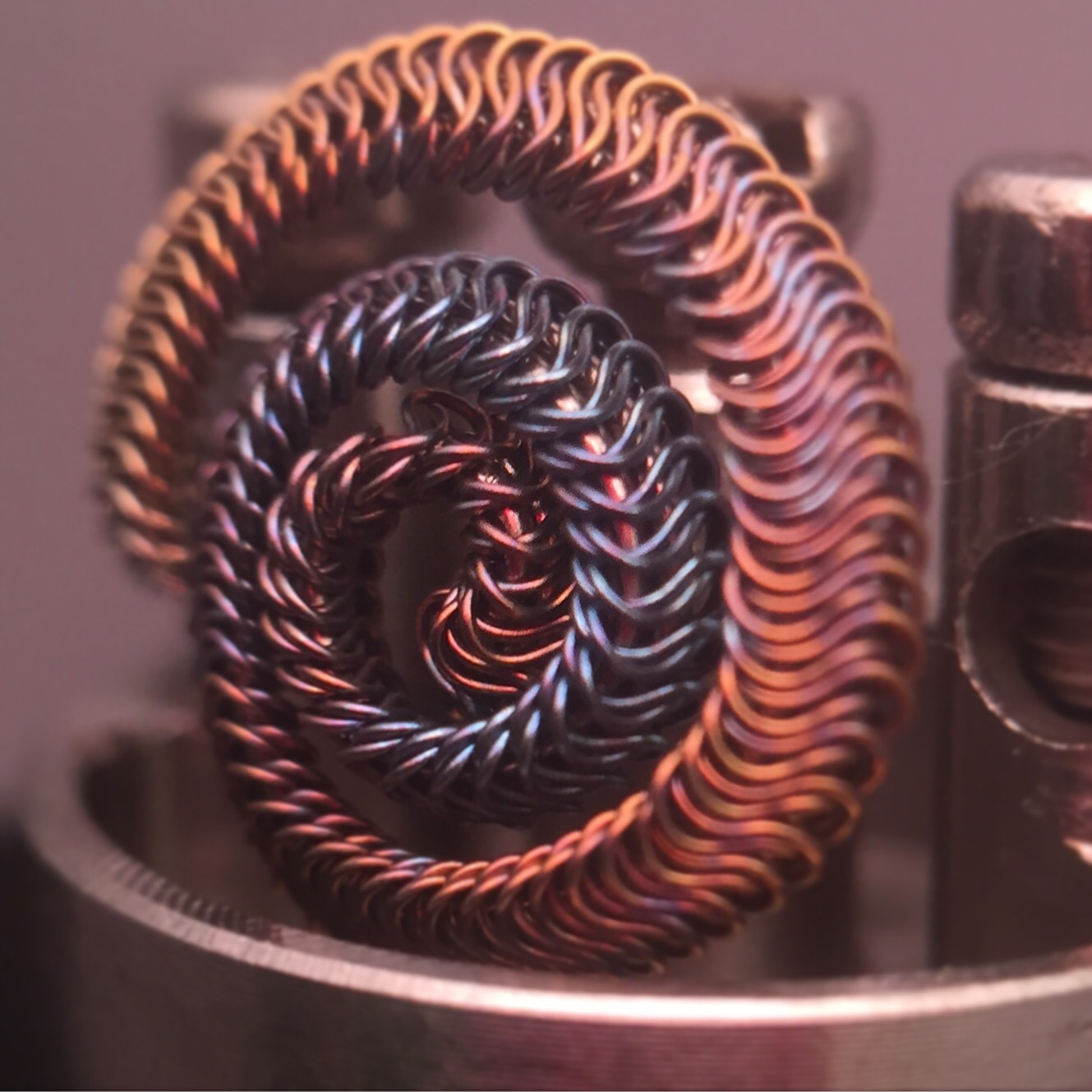

Played with some torching tonight

Sent from my XT1095 using Tapatalk



[ironman]

Played with some torching tonight

Sent from my XT1095 using Tapatalk

Titanium?



[blakemorder]

Titanium?

No, 26g k1 cores and n80 wrap. I don't have a tc mod so I haven't messed with ti yet

Sent from my XT1095 using Tapatalk



[ej1024]

Man that 3milky musketeers is a coil killer. But it's so damn good.

sent from a dumb operated smartphone

That's center post is moving!!


VAPE ON



[itsmenotyou]

My insulator is getting worn out lol. I can't tighten the positive pin anymore or it reads as a dead short

sent from a dumb operated smartphone



[CrazyChef]

that's a lot of metal.

I wanted to make 2 smaller coils out of it, but the 4 leads wouldn't have fit into the center post. All of my 4 hole atties have coils in them that I don't want to change yet.



[itsmenotyou]

I wanted to make 2 smaller coils out of it, but the 4 leads wouldn't have fit into the center post. All of my 4 hole atties have coils in them that I don't want to change yet.

That is hell man. But truly it's a sign. Time to get more 4 post
(Edited for spelling and grammer)
sent from a dumb operated smartphone



[itsmenotyou]

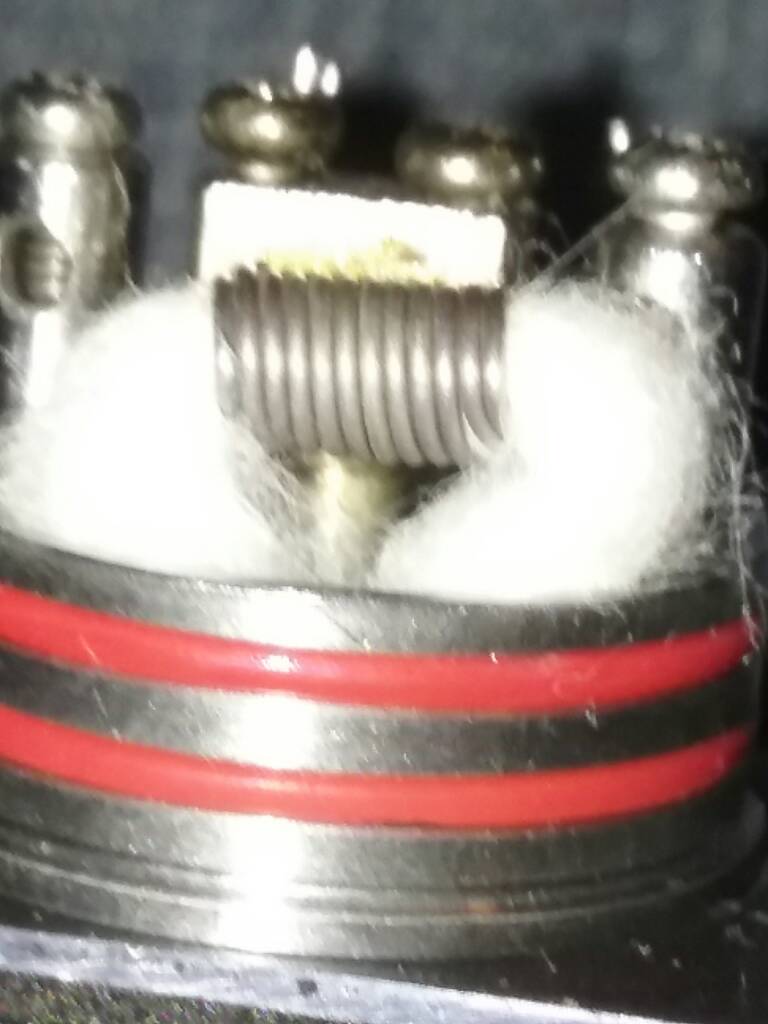

Made these last night. Already getting gunky. I vape to much

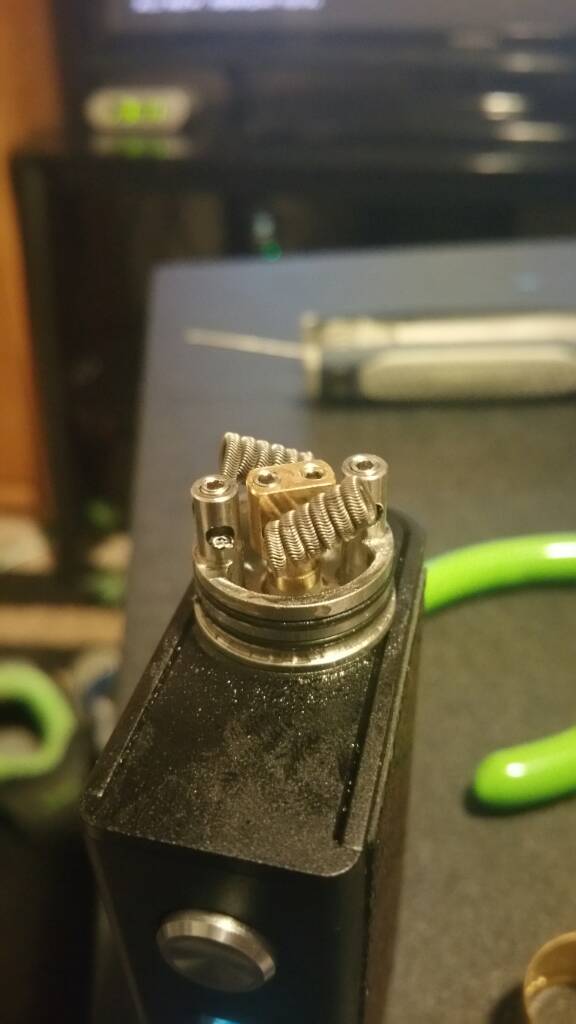

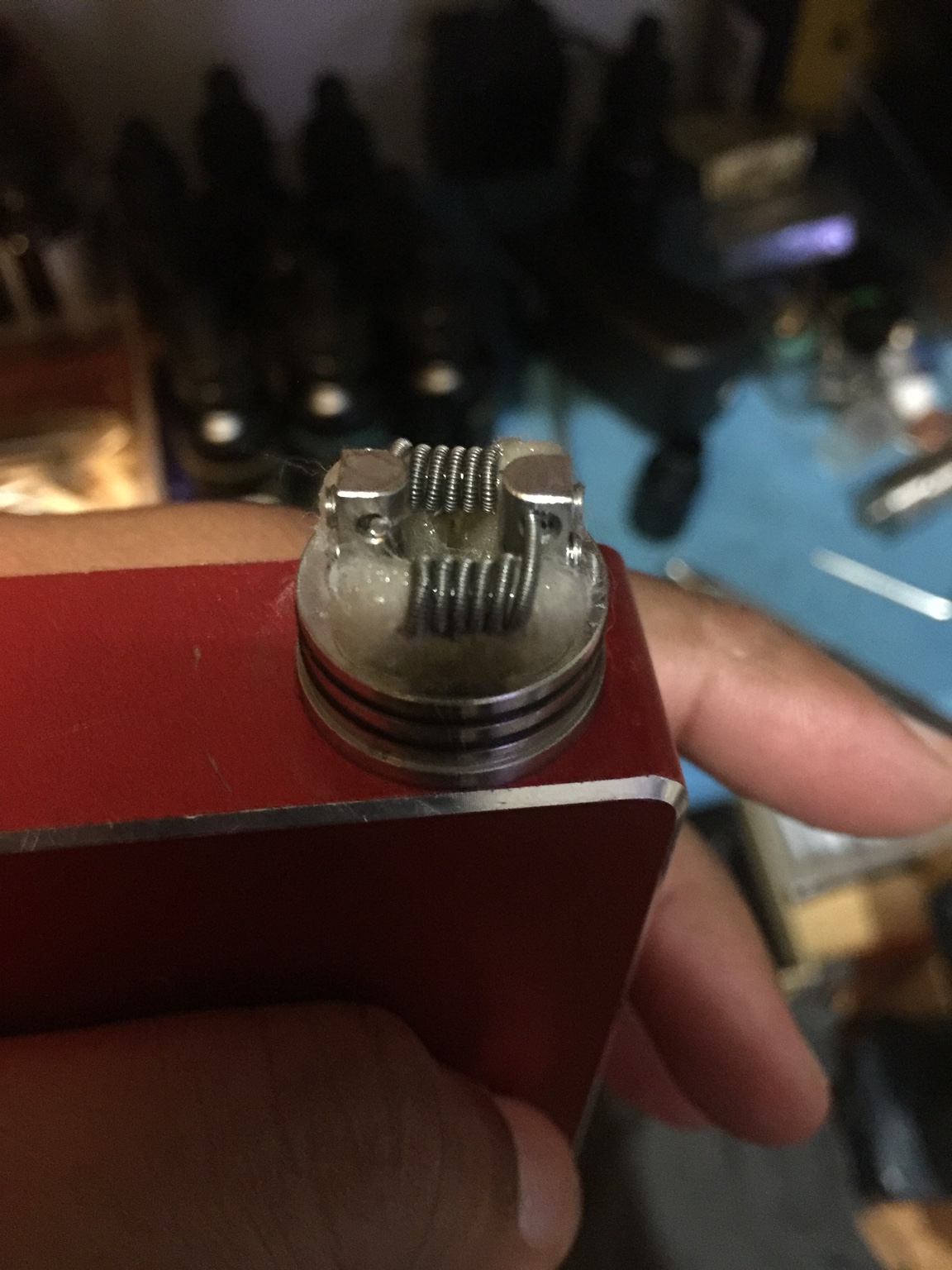

24a1 8 wrap 2.4mm. 31 ohm. Bounces from .29-.31

sent from a dumb operated smartphone



[itsmenotyou]

Well^ that didn't last long. Put the topcap back on and instantly burnt cotton even being that juicy. Shotty wicking strikes again

sent from a dumb operated smartphone



[CrazyChef]

Hey, it happens to the best of us!



[itsmenotyou]

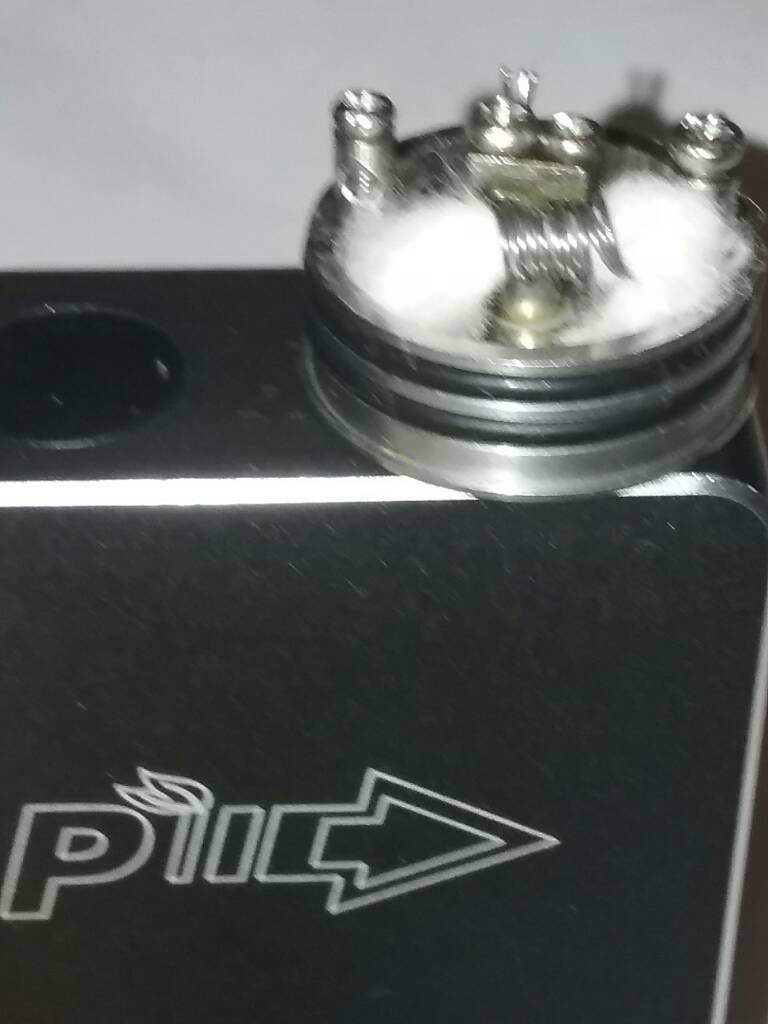

Finally got some good pics here.

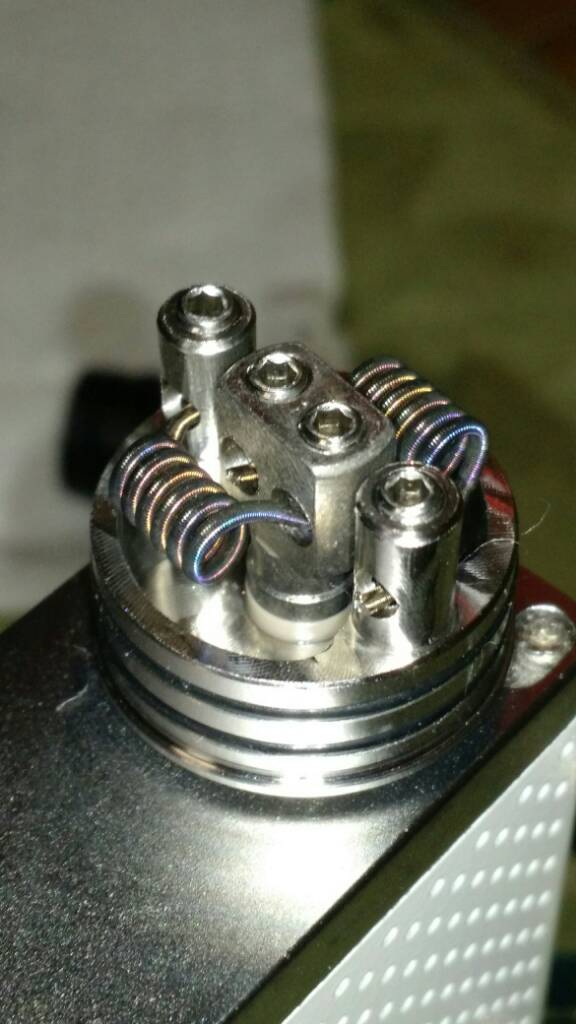

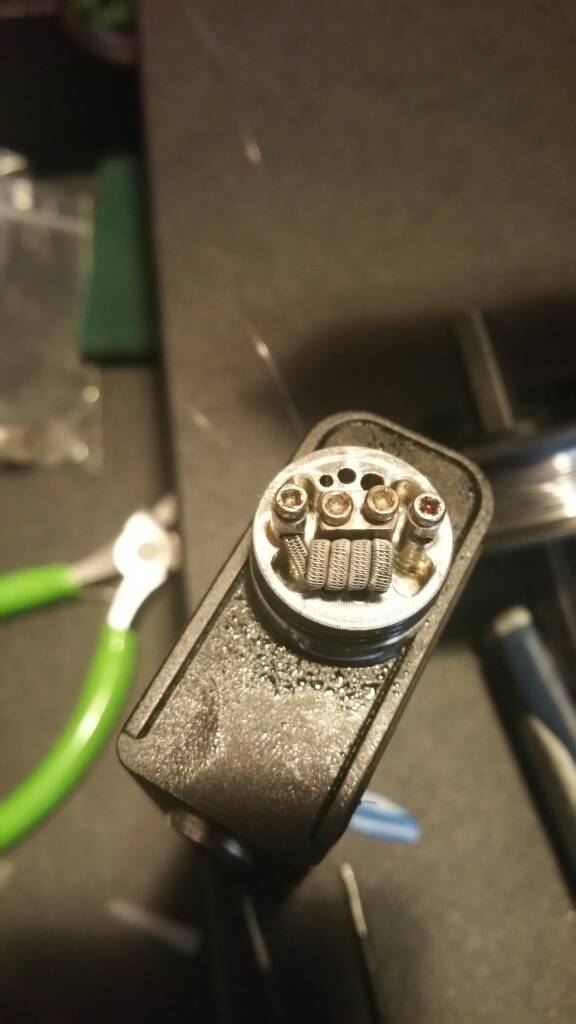

24a1 parallel 3 mm at .27ohm

And this was the first fire up without tweaking the coil. I'm gettin better at wrapping coils

sent from a dumb operated smartphone



[VapeRN]

So I fired up my drill last night to make some 36/24 KA1 fused Claptons and made about 2 inches of beautiful wire then the drill all but died on me. So I sadly aborted the claptoning and twisted the 24 strands together loosely and made dual 7 wrap lightly twisted coils instead. Reading .22 and actually these vape like a champ!! I really love the flavor and vapor production. Not a total loss after all. Bob Ross echoes in my head, "a happy little accident".



Sent from my iPhone using Tapatalk



[itsmenotyou]

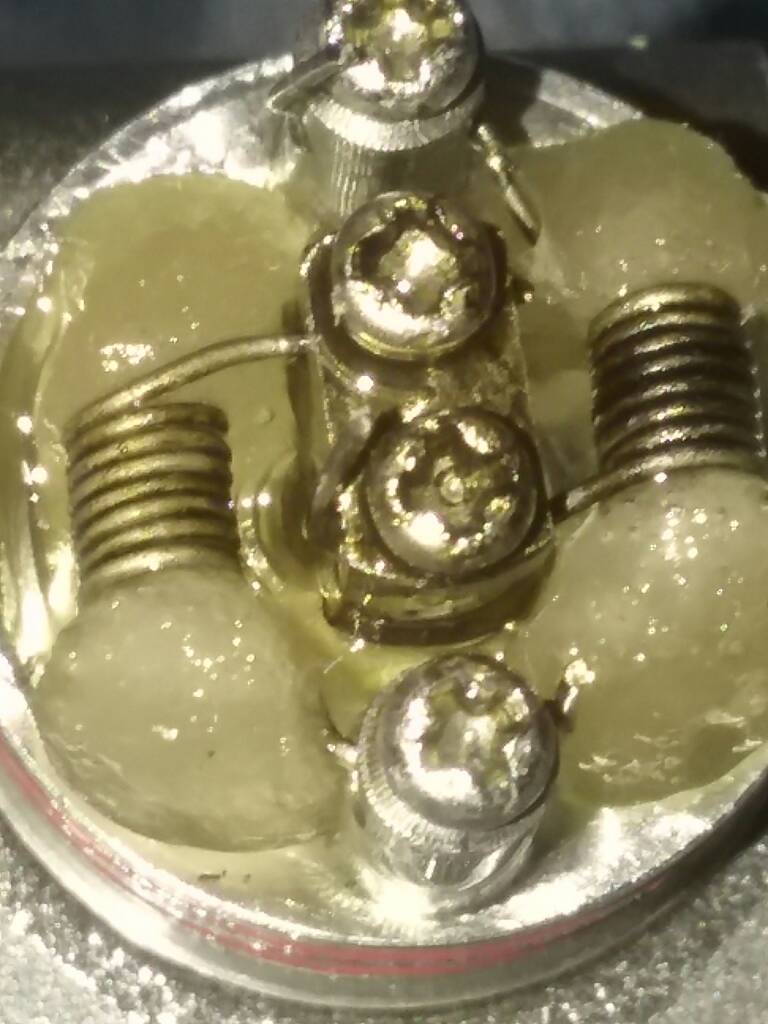

Very loosely twisted 24a1 5 wrap .16 ohm tasty coulds at 3.6 volts. Haven't cranked it up yet

ETA: the left side coils a little wonkey
sent from a dumb operated smartphone



[3unu(h-80m83r]

Builds I've been doing since I started advanced builds

Sent from my SM-N915V using Tapatalk



[itsmenotyou]

I kinda think these coils are past their prime

sent from a dumb operated smartphone



[ej1024]

Here's the story to this coil

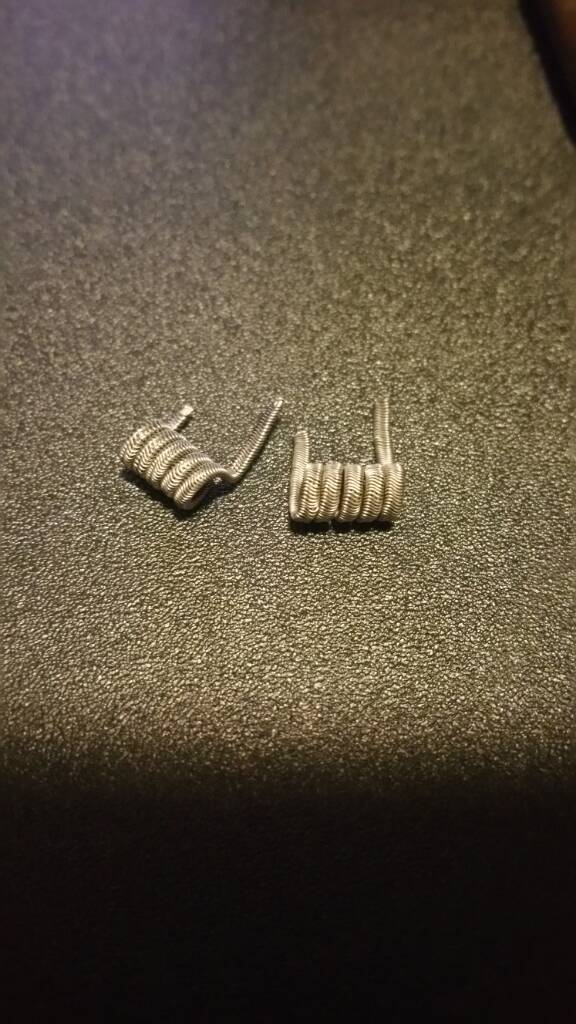

I was practicing a fused Clapton, 26 g NICHROME 80 and 32g kanthal
I end up doing a fused twisted Clapton, as u can all see it's not perfect, but OMG
This coil came out .23 ohms, vaping at 70 watts 3.8 volts on my OG SIG 150 it's so good, I can't imaging once I perfect my fuse Clapton
THE HYPE IS REAL!!


VAPE ON



[TF Vaping]

Starter build for my new arrival the phenotype-L

Sent from my Nexus 6 using Tapatalk



[Number3124]

Starter build for my new arrival the phenotype-L

Sent from my Nexus 6 using Tapatalk

So that's a zipper staggered by a clapton correct?



[TF Vaping]

So that's a zipper staggered by a clapton correct?

Not sure of the terminology but that sounds right. Its two spiral wires separated by a Clapton.

Sent from my Nexus 6 using Tapatalk



[iLiptiKal]

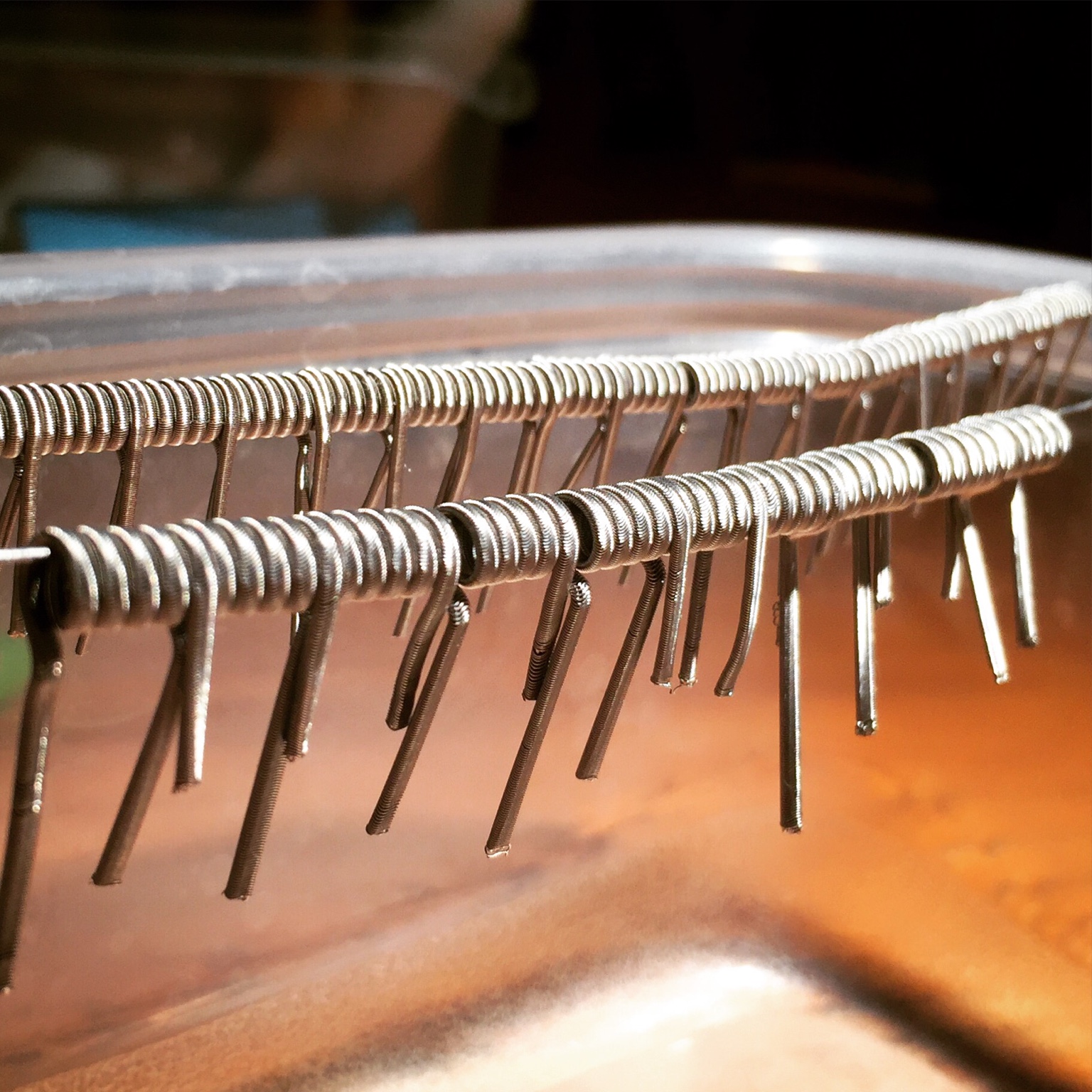

Filled another order today. Ten pairs of fused claptons, five pairs of alien framed staples, and three pairs of stapled helix coils.

All lined up

Close up of the aliens

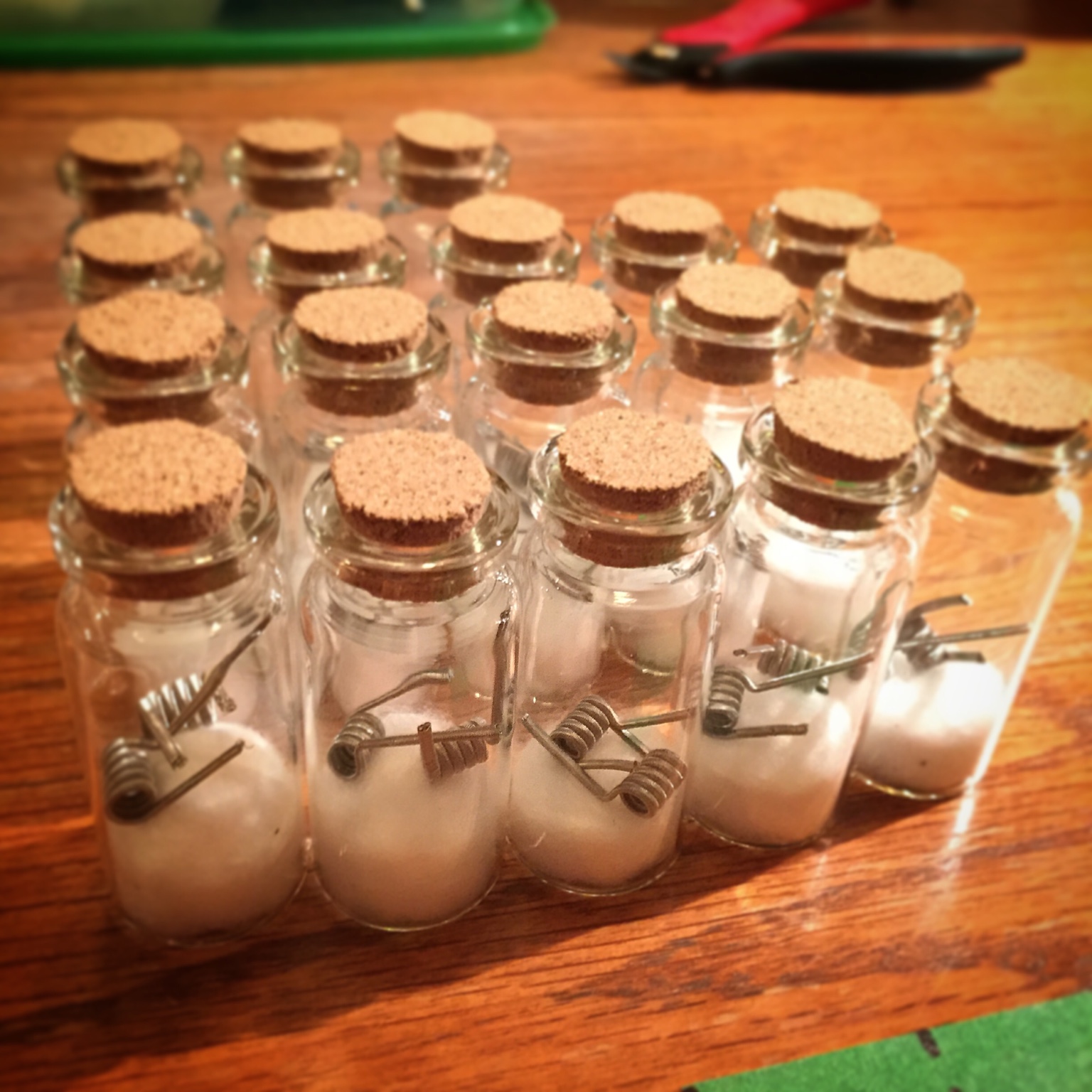

New packaging

Sent from my iPhone using Tapatalk



[itsmenotyou]

Filled another order today. Ten pairs of fused claptons, five pairs of alien framed staples, and three pairs of stapled helix coils.

In all lined up

Close up of the aliens

New packaging

Sent from my iPhone using Tapatalk

I like your packaging

sent from a dumb operated smartphone



[iLiptiKal]

I like your packaging

sent from a dumb operated smartphone

Thanks man! I changed it up from my first order and I like these a lot more too.


Sent from my iPhone using Tapatalk



[itsmenotyou]

They are both nice but the glass with cork looks more "professional" in my humble opinion

sent from a dumb operated smartphone



[ej1024]

Filled another order today. Ten pairs of fused claptons, five pairs of alien framed staples, and three pairs of stapled helix coils.

In all lined up

Close up of the aliens

New packaging

Sent from my iPhone using Tapatalk

What's the ohms on this coils bro
How much?


VAPE ON



[iLiptiKal]

It's what I had originally wanted but couldn't find at the time so I had to settle with the paint jars. I agree with you though @itsmenotyou, the glass is an improvement and more professional.


Sent from my iPhone using Tapatalk



[iLiptiKal]

What's the ohms on this coils bro
How much?


VAPE ON

Fused claptons are 26g/36gN80 6 wraps on 2.5mm for around 0.18ohms

Aliens are 2x 26gN80, 4x 0.5mm A1 ribbon, 36gN80 alien. 5 wraps on 3mm, about 0.12 ohms

Stapled helix are twisted 28A1g, 4x0.5mm A1 ribbon, 36gN80 helixes. 5 wraps on 3mm again about 0.12 ohms.

I don't really have pricing set up for custom orders, but if you're interested shoot me a DM and we can chat further. These are for my local shop, and therefore wholesale pricing that I can't really chat about.


Sent from my iPhone using Tapatalk



[itsmenotyou]

Twisted 26a1 parallel with 24ga a1. 3mm. 4 wrap. .26 ohms. Flavor is amazing vapor is on par for only running at 3.3 volts for right now until it breaks in completely

sent from a dumb operated smartphone



[ej1024]

Fused claptons are 26g/36gN80 6 wraps on 2.5mm for around 0.18ohms

Aliens are 2x 26gN80, 4x 0.5mm A1 ribbon, 36gN80 alien. 5 wraps on 3mm, about 0.12 ohms

Stapled helix are twisted 28A1g, 4x0.5mm A1 ribbon, 36gN80 helixes. 5 wraps on 3mm again about 0.12 ohms.

I don't really have pricing set up for custom orders, but if you're interested shoot me a DM and we can chat further. These are for my local shop, and therefore wholesale pricing that I can't really chat about.


Sent from my iPhone using Tapatalk

Ok thanks


VAPE ON



[ej1024]

FINALLY!!!!

My first CLAPTON
22g NICHROME 80 32 kathal
2mm in diameter
I'm gonna enjoy this....18ohms


VAPE ON



[turnBat]

half staggered fused clapton.



[TF Vaping]

Never tried a fused Clapton before decided to give it a shot.

Sent from my Nexus 6 using Tapatalk



[TF Vaping]

Did a staggered fused Clapton... A salute all you guys using 32+ ga wire daily. I don't believe diabetics finger tips hurt more than mine right now.

Sent from my Nexus 6 using Tapatalk
