I suppose i'll offer a little feedback since nobody else has haha! You're well on your way! I would definitely get my hands on some 36g or 38g for making claptons, the difference in flavor is absolutely astounding. Until then, try and wrap the two clapton wires absolutely as close together as possible-that way when you remove one wire you're left with perfectly even spaces to fuse them together. But for a first go with 32g thats not bad at all! There is a method for making these that is difficult to explain, when someone finally makes a youtube video for it i will certainly post it. But for now twistedmesses video remains the best video for these. In case you haven't seen it:

Keep at it man, thats a hell of a lot better than my first try!

Thank you for the kind words and advice. I have watched that video. I just hate wasting wire, so I used my thumbnail to space the clapton.



[scarecrowjenkins]

Thank you for the kind words and advice. I have watched that video. I just hate wasting wire, so I used my thumbnail to space the clapton.

There's a trick-you can make a small loop of wire and use that the same way you used your fingernail. Just put the core through the loop and once you start wrapping it'll space the clapton wire perfectly once you get it going. Its hard to explain but it's actually quite simple



[BUDKISS]

You can also wrap the core on one gauge thicker wire decide it and then insert the thinner gauge and stretch it. It will be uniformly spaced every time. Cut that piece in two, line the up Parallel and then make your fused wrap.

I have found ball bearing swivels to be super helpful in coil making.

Side note just pounded out a ton a ready to ship advanced coils if anyone is interested pm me or head to the custom, made to order thread.



[scarecrowjenkins]

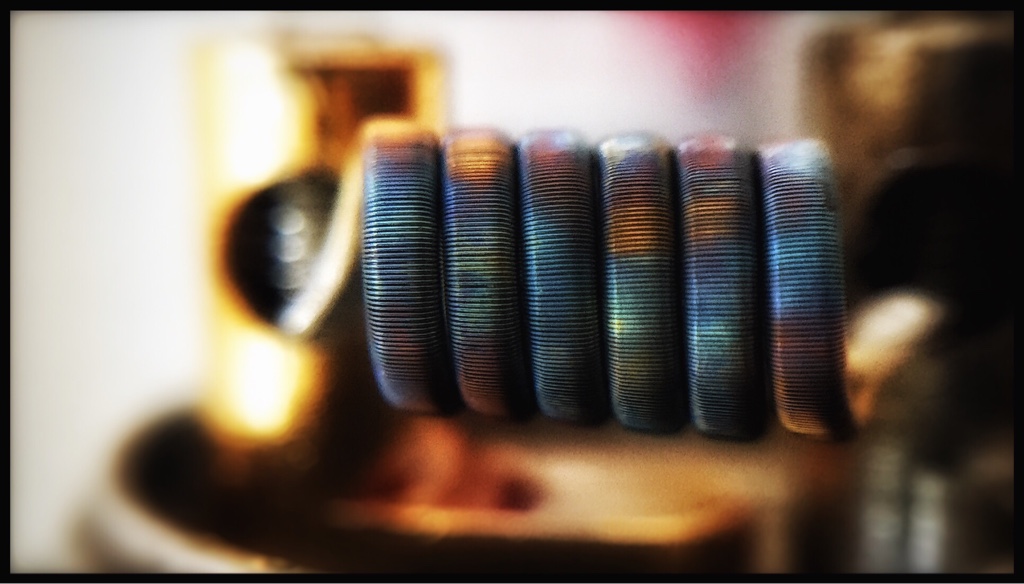

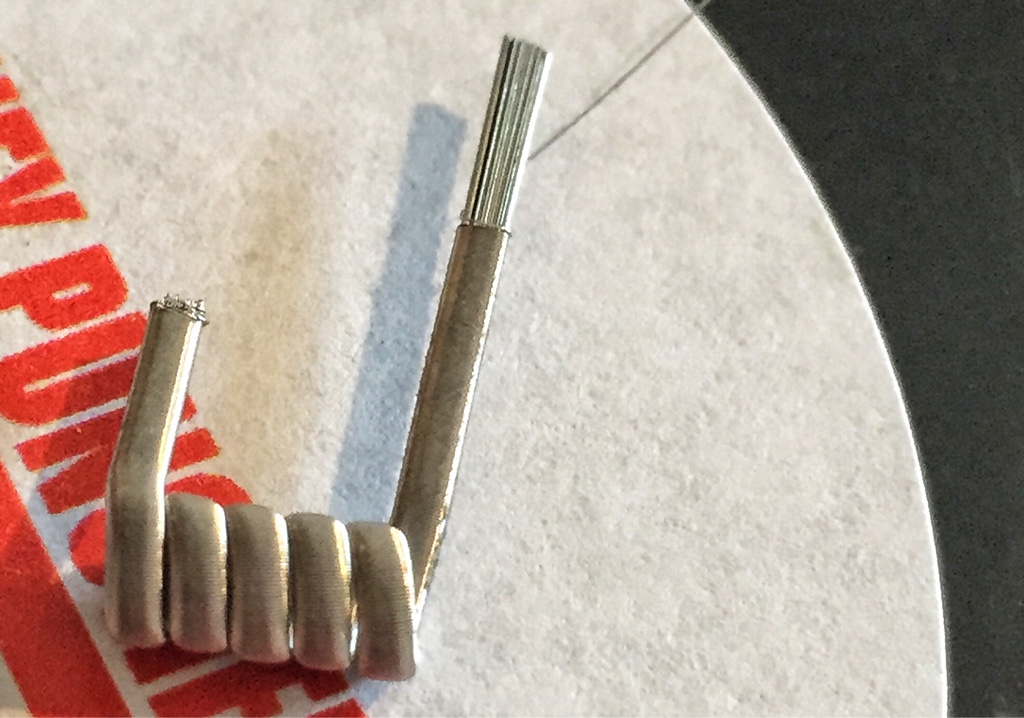

Framed Staple Claptons.
8 strands of .5mm ribbon stacked vertically with 28g N80 on each side. Wrapped in 40g N80.

Sorry about the pajamas.

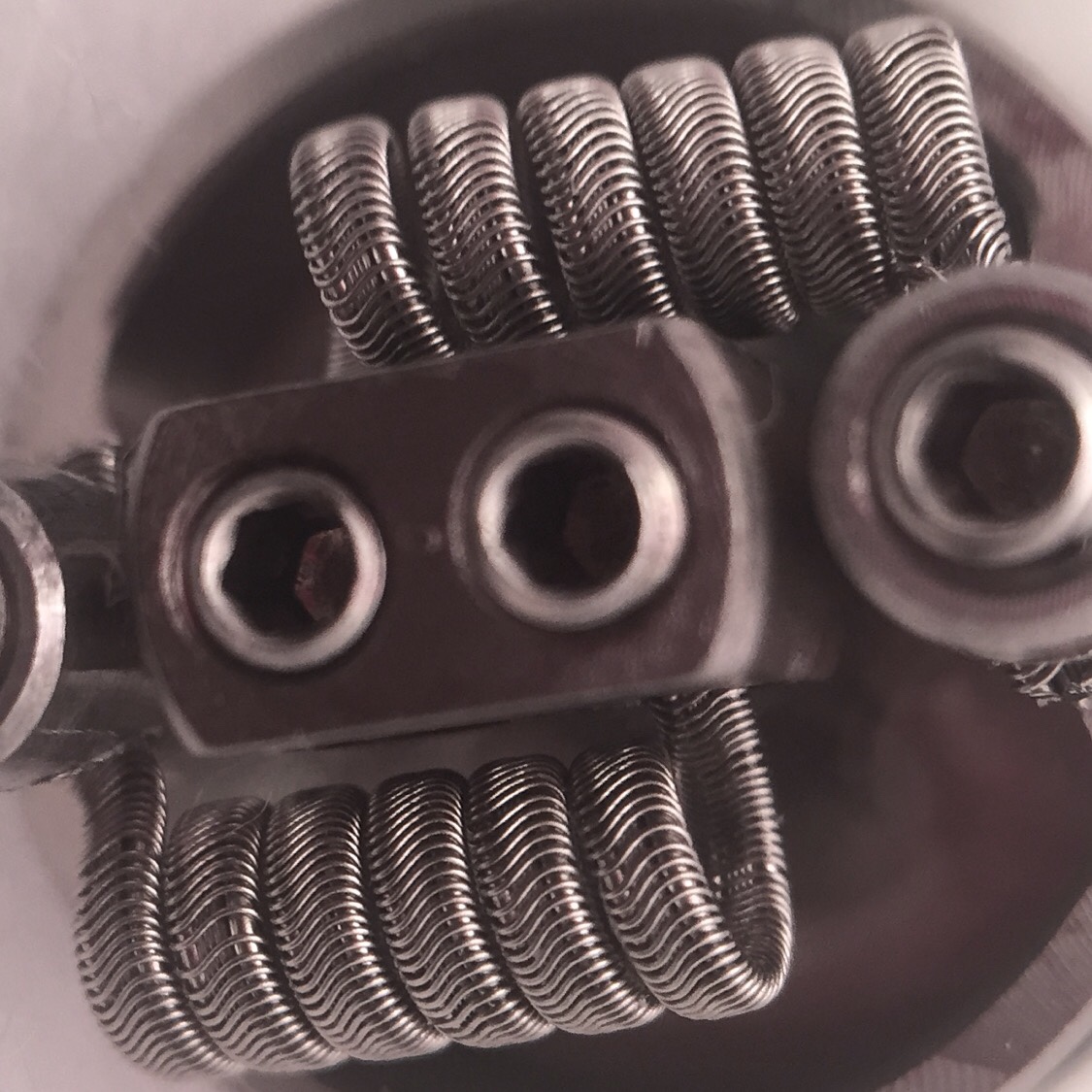

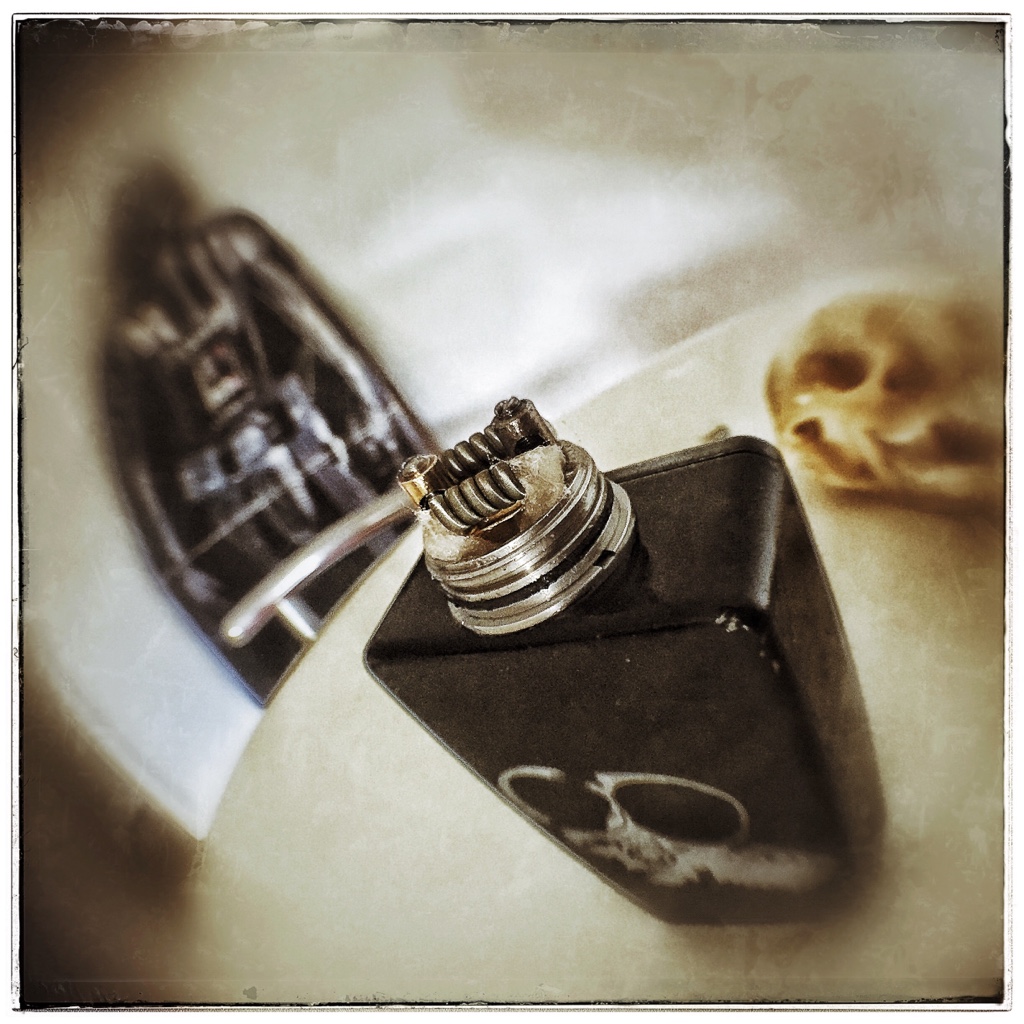

Dual 5 wrap around 3mm bit clocks in at .095 ohms. Sitting in the Anarchist/Aria Built Phenotype-L RDA.
Really like this build. A little challenging to wrap nicely since the ribbon is wrapped sideways (standing on its side) and it naturally wants to lay flat. It vapes beautifully, very smooth considering the low resistance. Vapes more like a .13 as far as heat. Flavor is outstanding, and very complex. You can almost taste each individual flavor. Well worth the 30-40 min build time for sure.
::EDIT::

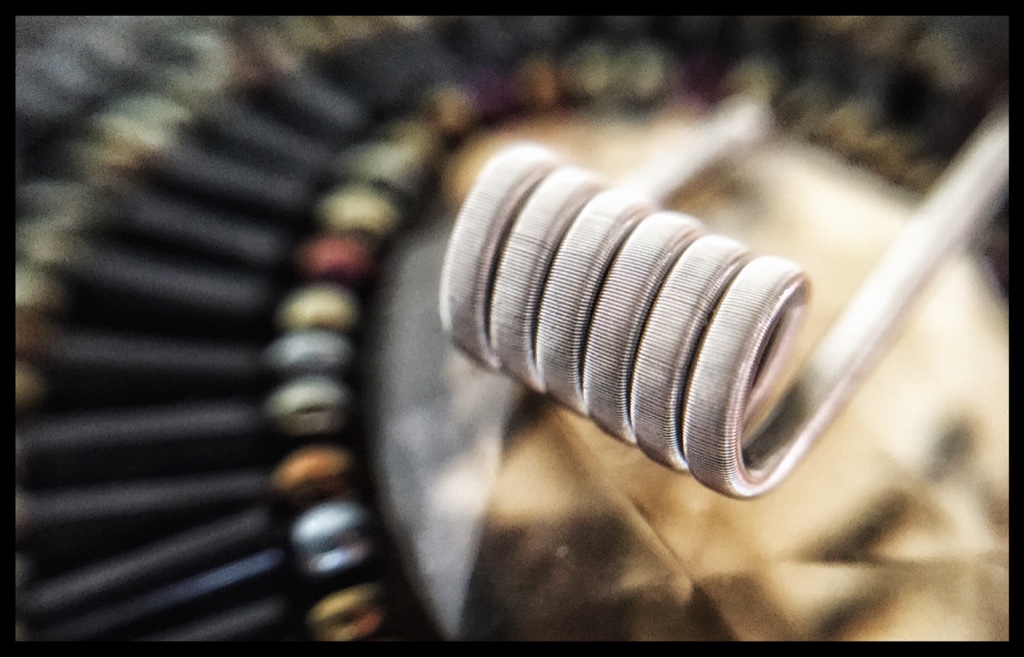

Scored a macro lens.....better photos



[itsmenotyou]

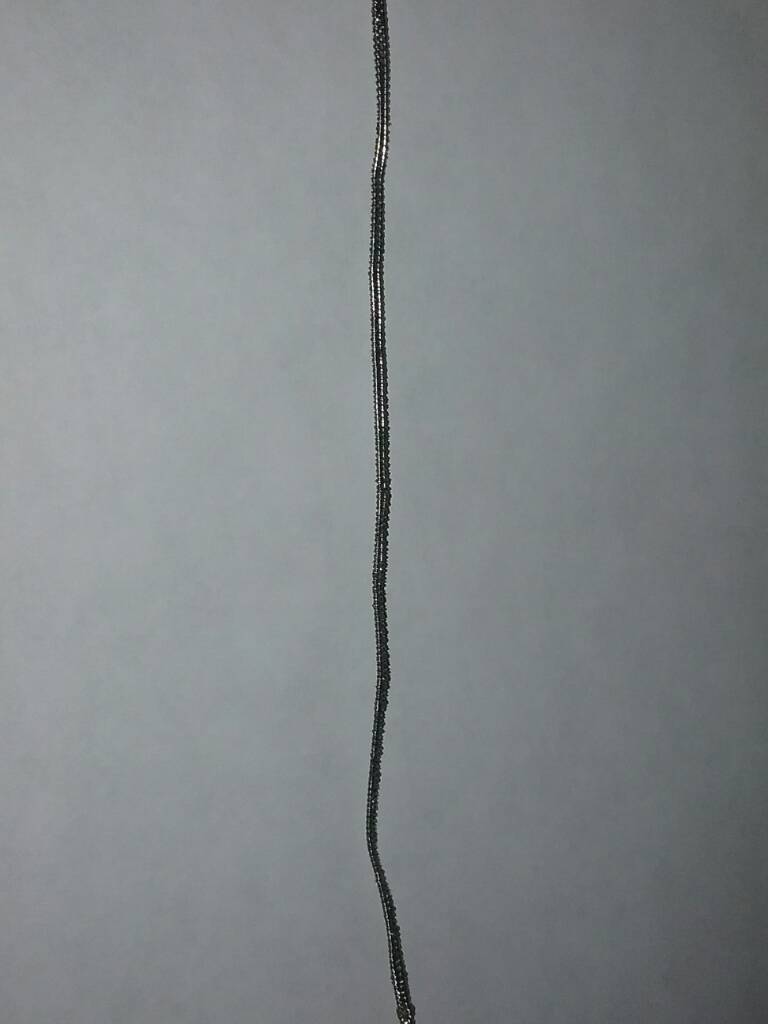

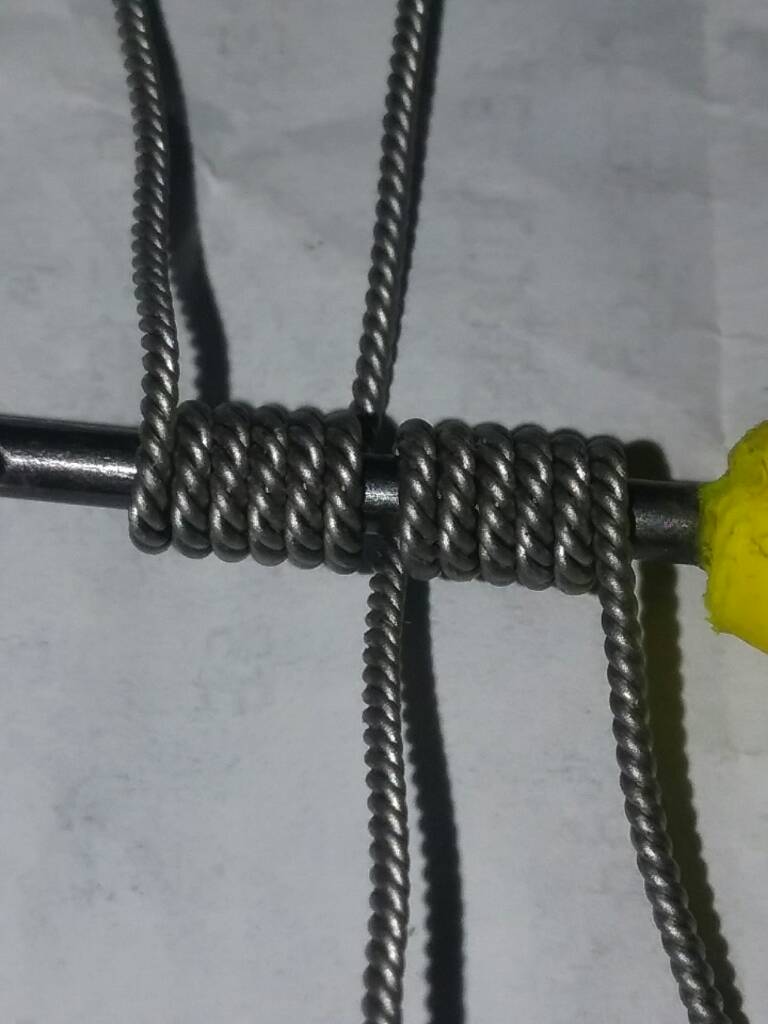

Tightly Twisted 26 twisted tightly with loosely twisted 24

sent from a dumb operated smart phone



[itsmenotyou]

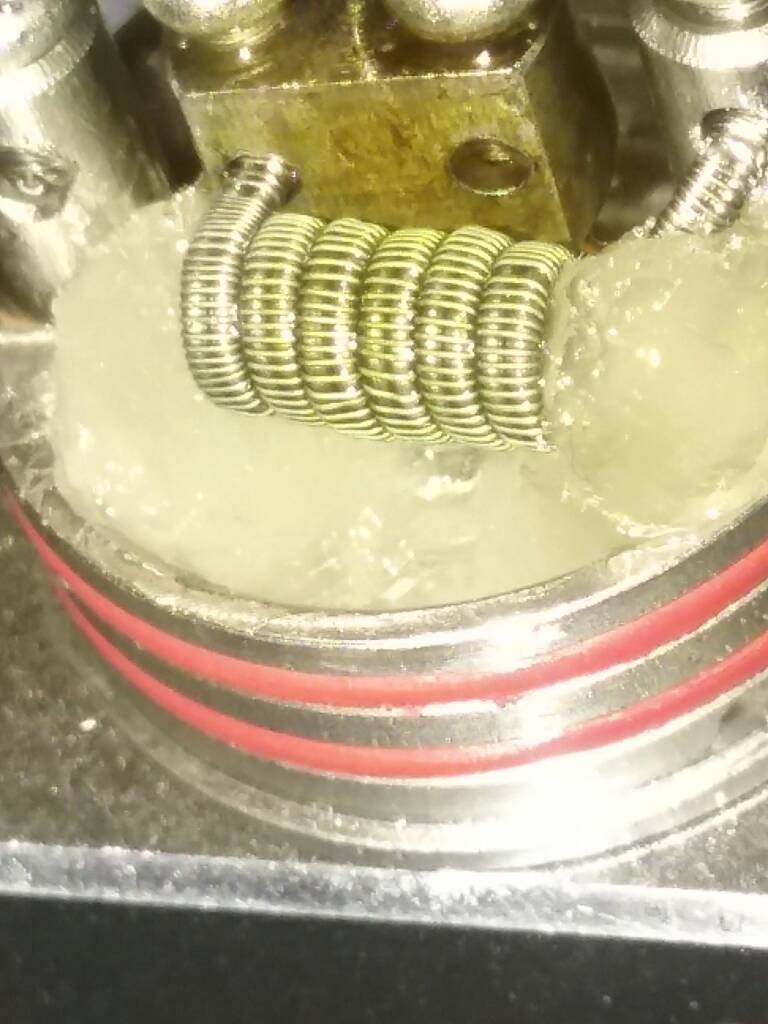

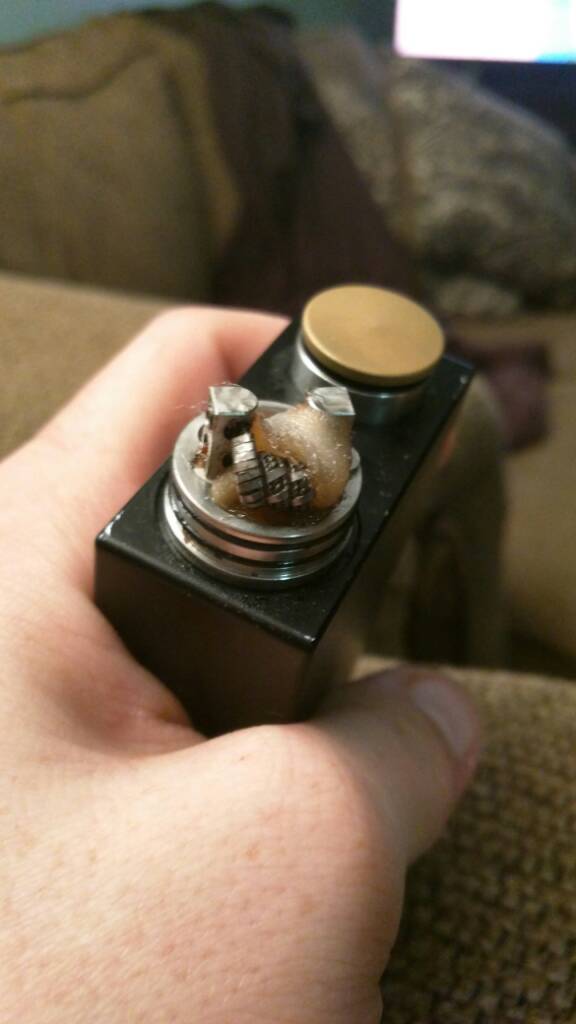

7 wrap on a mutation xl

sent from a dumb operated smart phone



[BUDKISS]

very very nice.... keep em coming.



[itsmenotyou]

Sorry y'all
My skills suck compaired to y'all.
You guys have some damn good skill. I'm lucky to get a fused clapton good enough to use haha.



[BUDKISS]

Sorry y'all
My skills suck compaired to y'all.
You guys have some damn good skill. I'm lucky to get a fused clapton good enough to use haha.

I'd be happy to help you out.



[itsmenotyou]

Ill try some fused clapton wire here in a little bit and post the results haha



[itsmenotyou]

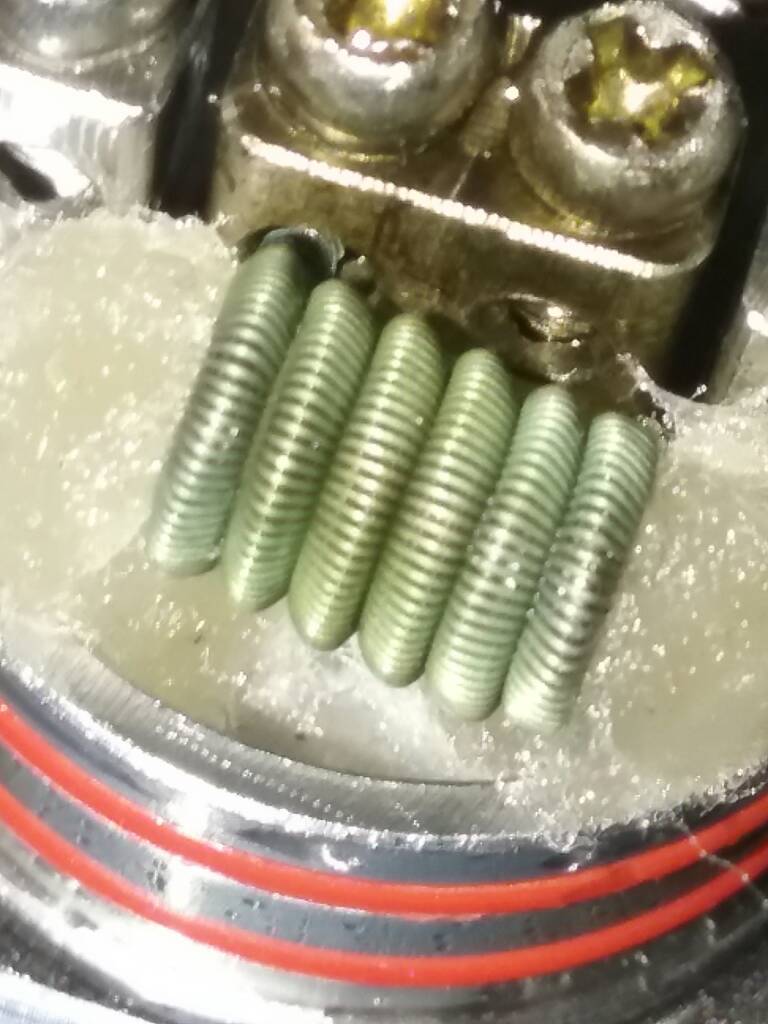

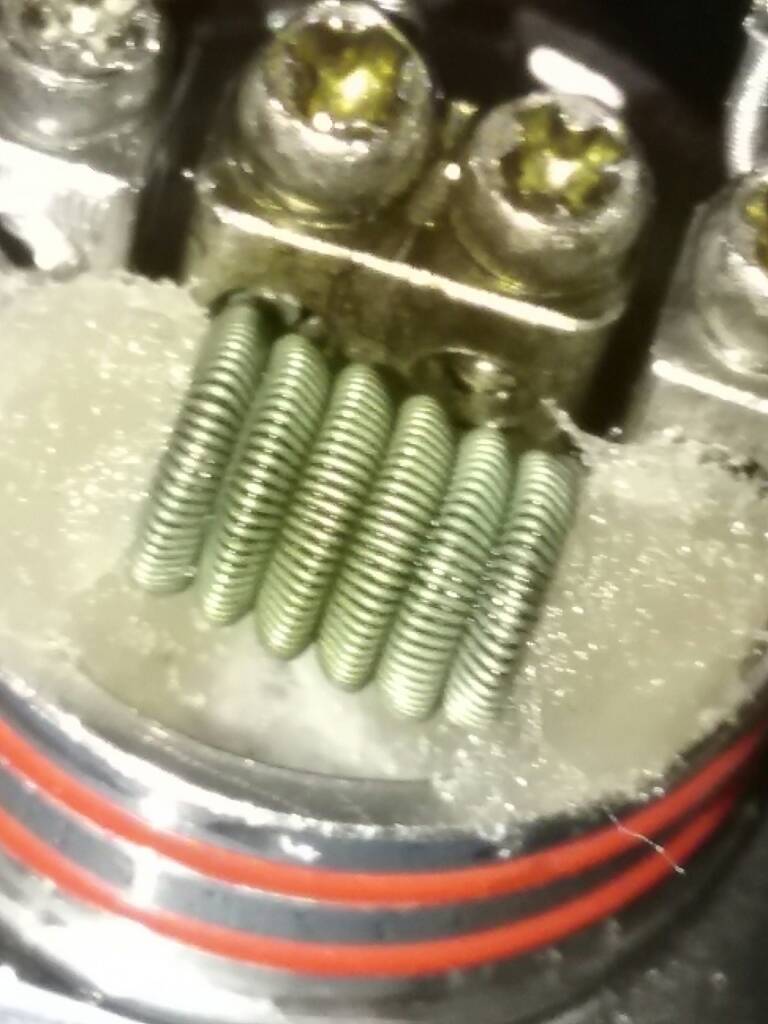

So I went threw about 35 ft of 36 ga tonight trying fused Claptons. I gave up for tonight and just did a 24/36 ga clapton

7 wrap. Cube rda ohmed out to .61

sent from a dumb operated smart phone



[itsmenotyou]

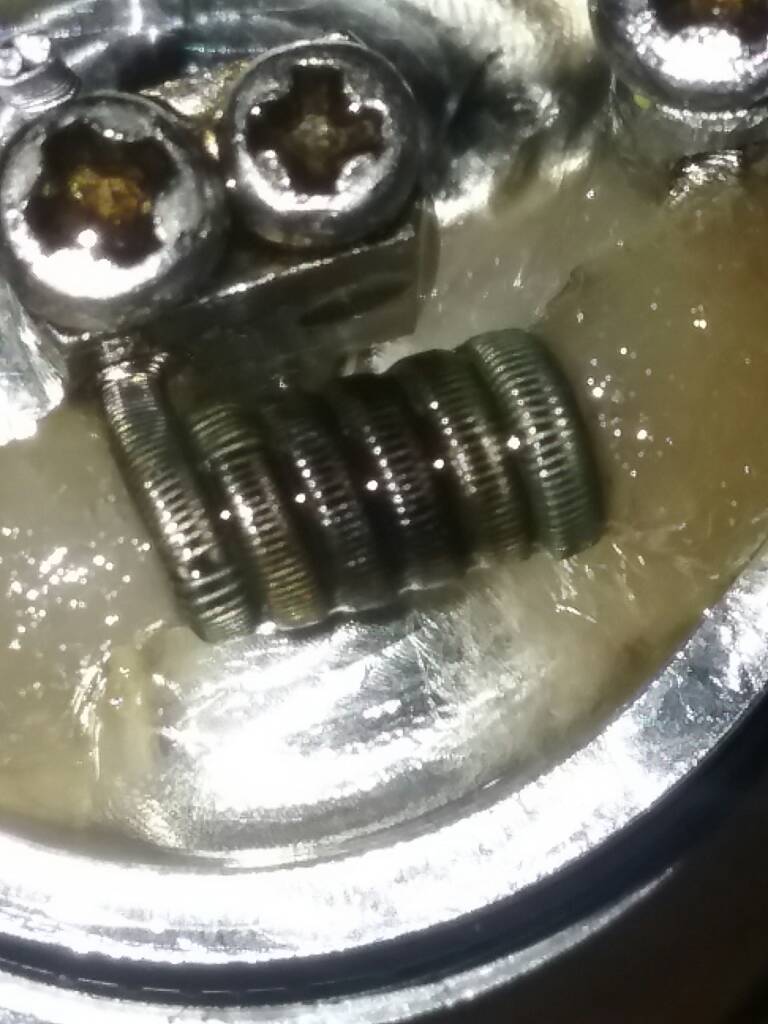

Sloppy wire

sent from a dumb operated smart phone



[itsmenotyou]

sent from a dumb operated smart phone



[BUDKISS]

Staged heating coil with alien wire (28g x3 and wrapped with 34g). Nichrome80 24g in between the wraps.



[itsmenotyou]

Lol we went from my low quality wire back to straight up art. I love you guys haha

sent from a dumb operated smart phone



[Arizona]

Some nice lookin coils in here. Dang.



[BUDKISS]

Hey gang...thanks for the posts. Keep em coming.

So i have been working on making a TINY alien coil and finally got it mastered.
This is 30g Ni80 (3 strands) alien wrapped with 34g Ka1 and then I staggered it with 24g Ka1.
3mm diameter, 6/5 wraps, dual on Twisted Messes RDA. Came to .13 ohms



[BUDKISS]

Here is a huge coil set I am sending out to a VU member from my 'made to order custom coil service' thread in unlisted vendors

I am totally loving passing on my work for other people to enjoy.



[iLiptiKal]

Nice amount of shipping going out @BUDKISS!

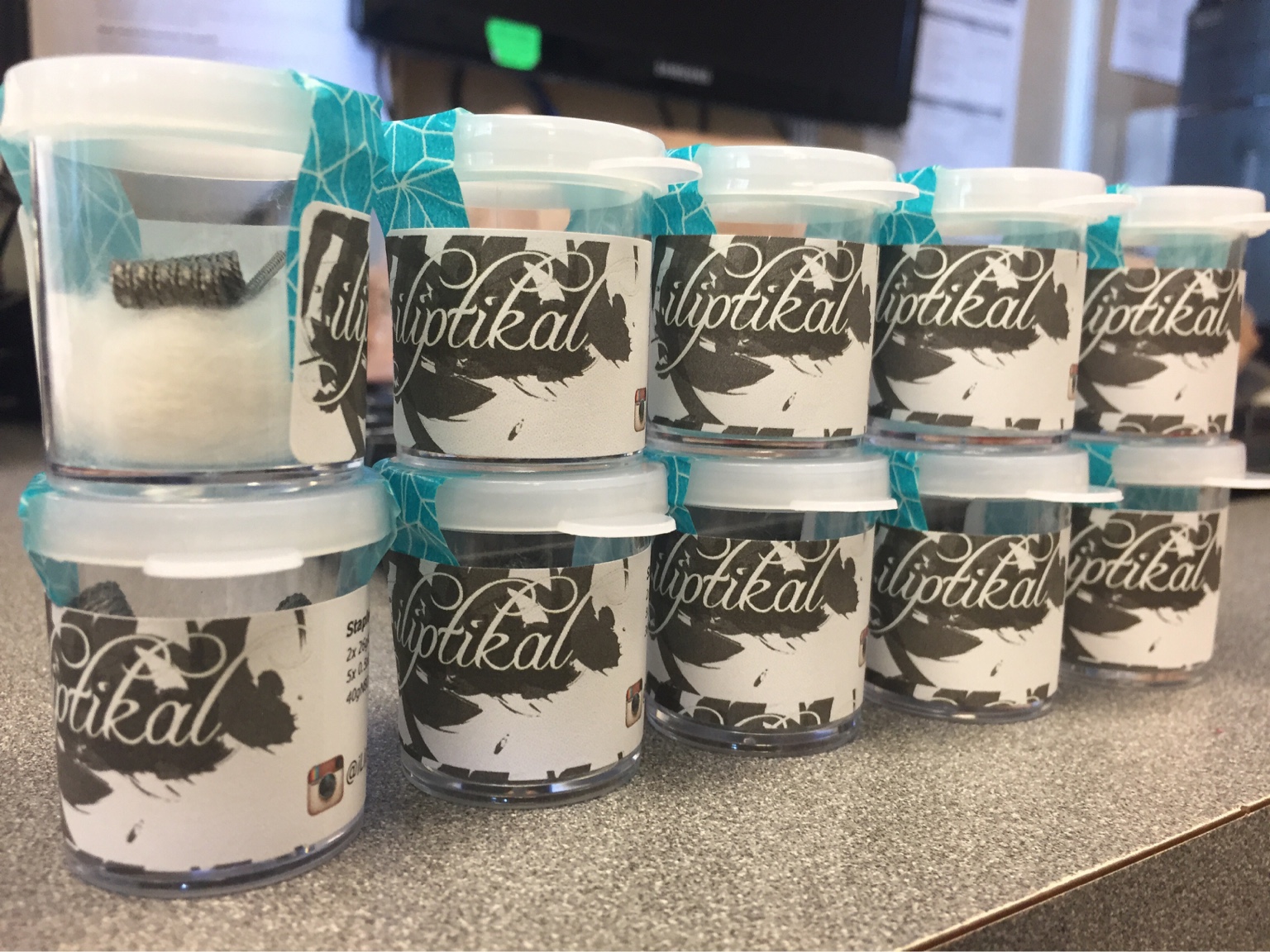

I'm actually delivering my first retail order today also. My local B&M ordered ten pairs of stapled helix coils, shown here in my own retail packaging.

Sent from my iPhone using Tapatalk



[BUDKISS]

Great job. What were the specs on the coils?

I haven't really been selling coils to local shops. When I am there however someone always hits me up for something. I am committed however to take good care of the VU family.
If I can help anyone out please let me know.



[iLiptiKal]

Specs are:
2x 28gA1 on the sides
5x 0.5x0.1mmA1 in the middle
40gN80 helix (4-6 pieces depending on the wire spacing)
3mm ID 5 wrap

In dual the resistance came to 0.12 on my test pair.


Sent from my iPhone using Tapatalk



[Ldiddy33]

@BUDKISS you have some sic (awesome) builds. You ever thought about doing tutorial vids? I love coil porn. I'm just now getting into the "advanced" coil builds and as soon as I get something worthy of posting I'll throw some up here. Love this thread though.



[BUDKISS]

@BUDKISS you have some sic (awesome) builds. You ever thought about doing tutorial vids? I love coil porn. I'm just now getting into the "advanced" coil builds and as soon as I get something worthy of posting I'll throw some up here. Love this thread though.

Thank you ldiddy very much. Kind words.
I've thought about making tutorials but there are so many better builders doing it right now so I bow in homage and defer to them.
Lately I've just been enjoying selling these set ups to VU members in my "unlisted vendors thread". I like passing on my work for others to use and enjoy.



[itsmenotyou]

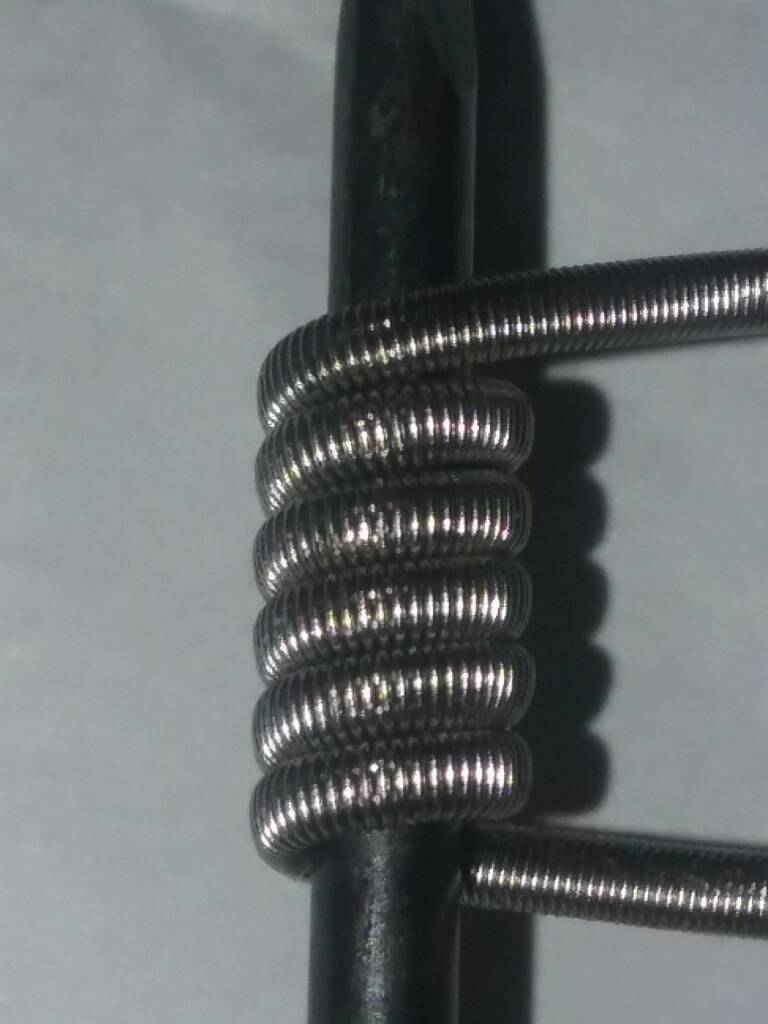

2 24 ga cores with 32ga clapton

Getting pretty builds lol. Maybe my next master will be the fused Clapton.

sent from a dumb operated smart phone



[itsmenotyou]

2x24 clapton with 36 ga and well. I hate 36 ga

sent from a dumb operated smart phone



[TF Vaping]

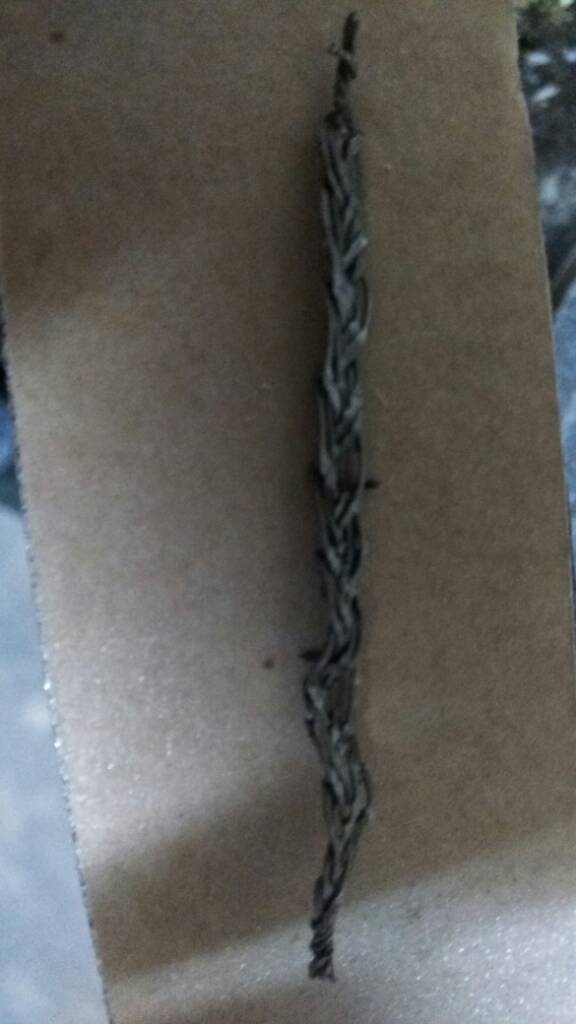

I thought I'd play around at work and do a flattened braided coil. Went well, when I began to flatten out the wires the expanded a lot further than I intended and the braid separated ALOT its a neat pattern(I think) but it will not. I repeat will not fit in the sum bitch'n rda. Lmao
Throw this on a list of shit I cannot do.
It was flat, when I began to coil it is when it started giving the jagged edges you see in the picture. I bet I could do it with 30ga.

So I just did a Clapton and called it a night for playing, and got back to work.
Y'all are some talented people. I suck

Don't look under the Bridge



[itsmenotyou]

3x26ga core wires with 32 ga clapton

sent from a dumb operated smart phone



[iLiptiKal]

Been trying to step up my alien game. Here's my latest alien framed staple.

2x 26gN80
4x 0.5mmA1 ribbon
36gN80 alien clapton


Sent from my iPhone using Tapatalk



[BUDKISS]

Nice alien. It is a pita to keep them tight when wrapping the coil. Ugh.

I did a titanium version (2 core 24 ) that was surprisingly great in TC mode.

Keep those posts coming. If anyone is interested in purchasing coils PM me or check out my custom, made to order coil service thread. Love to pass on these great set ups to those who don't have time or patience to make them.



[itsmenotyou]

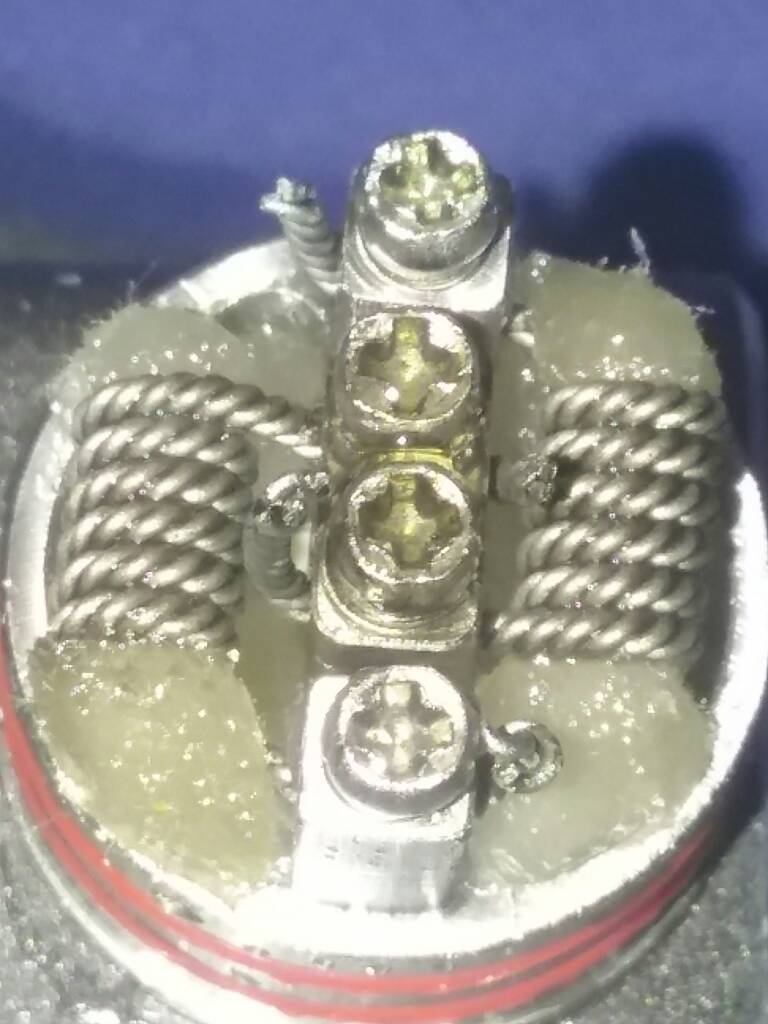

Twisted 24 ga 5 wraps on a 2.4mm screw driver. I'll update with ohms once I get it installed.

sent from a dumb operated smart phone



[blakemorder]

Got a twisted messes so i had to build something new. My First fused clapton, took 3hrs to get enough wire. 2x28g k1 36g n80 5 wraps. .27 ohm

Sent from my XT1095 using Tapatalk



[BreeZyCloudZ]

My latest build and first Ive made, pretty proud of it. Stacked quad coil 22g 6 wrap bottom 24g 6 wrap top .14 ohm



[BUDKISS]

That build would rock on a velocity



[BreeZyCloudZ]

That build would rock on a velocity

Ohh its killer, i just changed the top to a smaller diameter and its perfect, after parallel, may be my favorite build for clouds



[scarecrowjenkins]

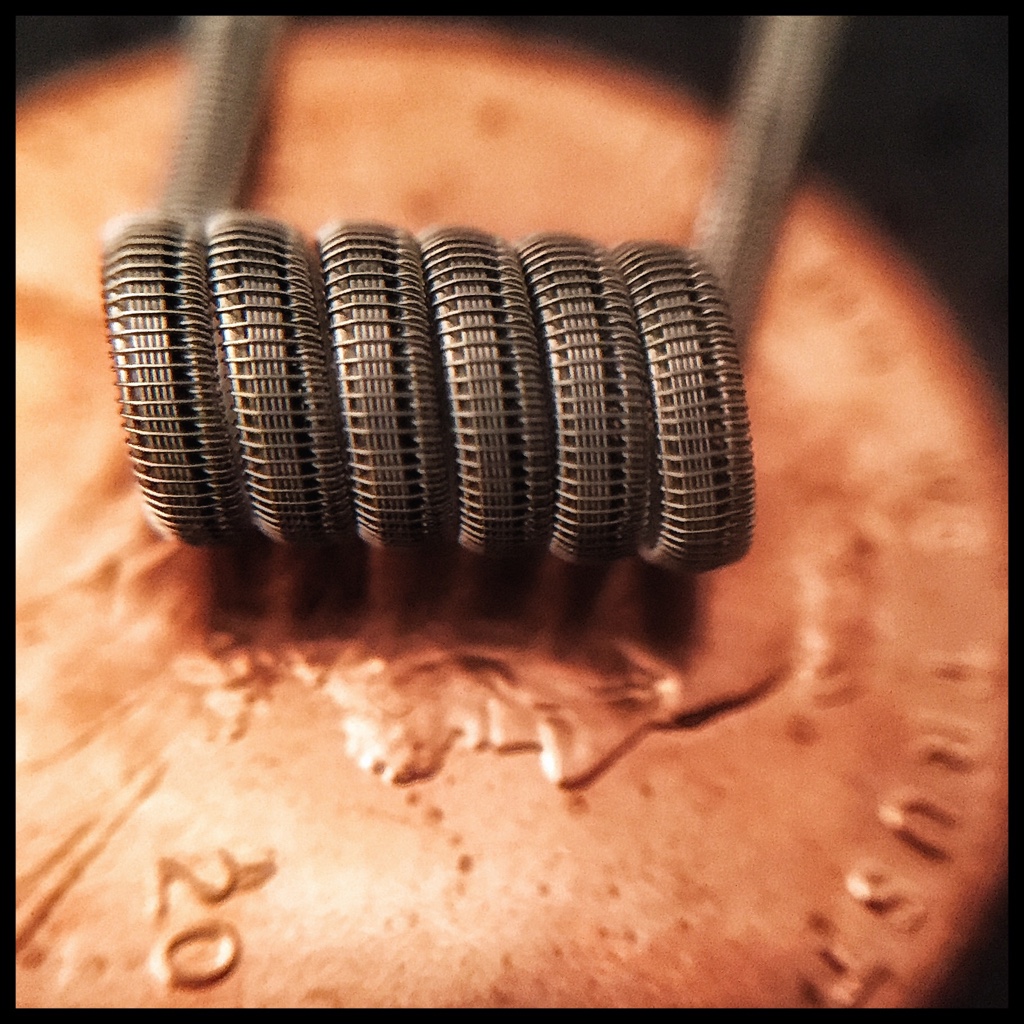

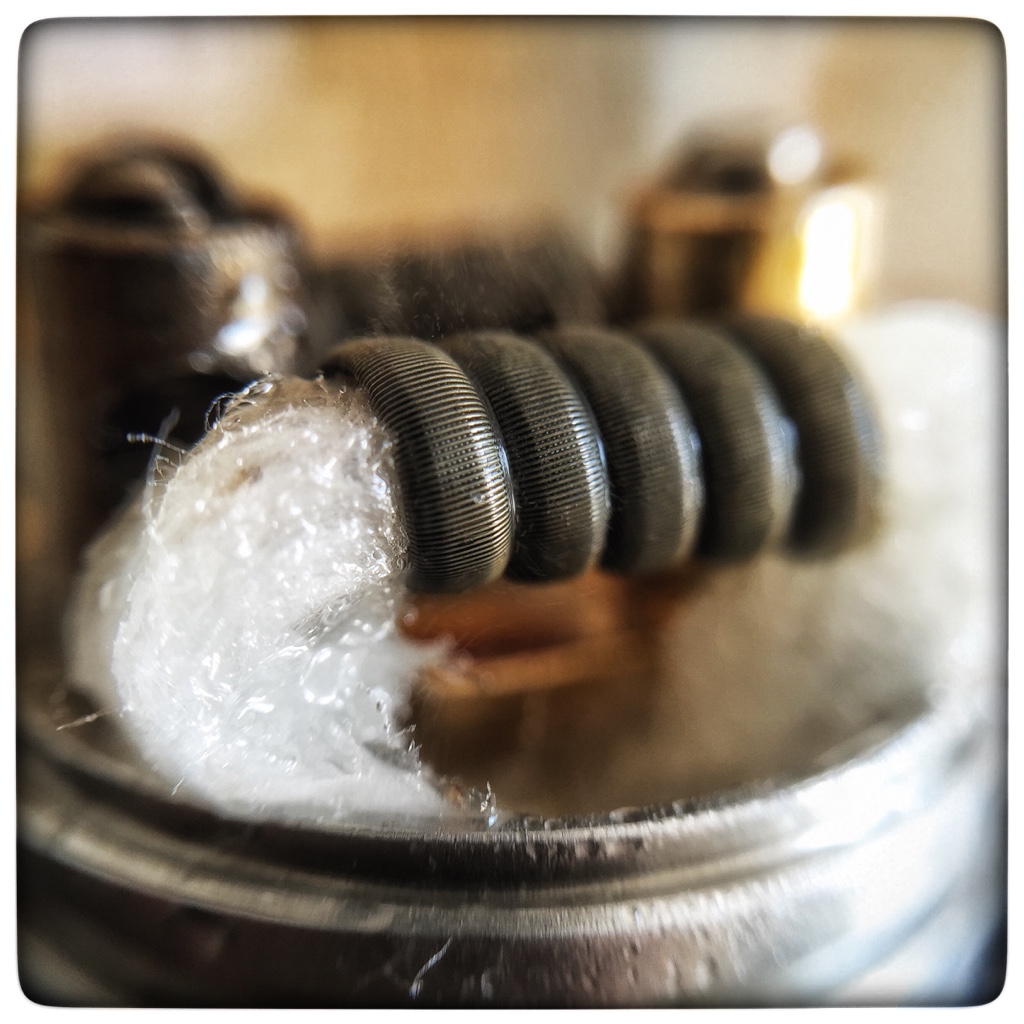

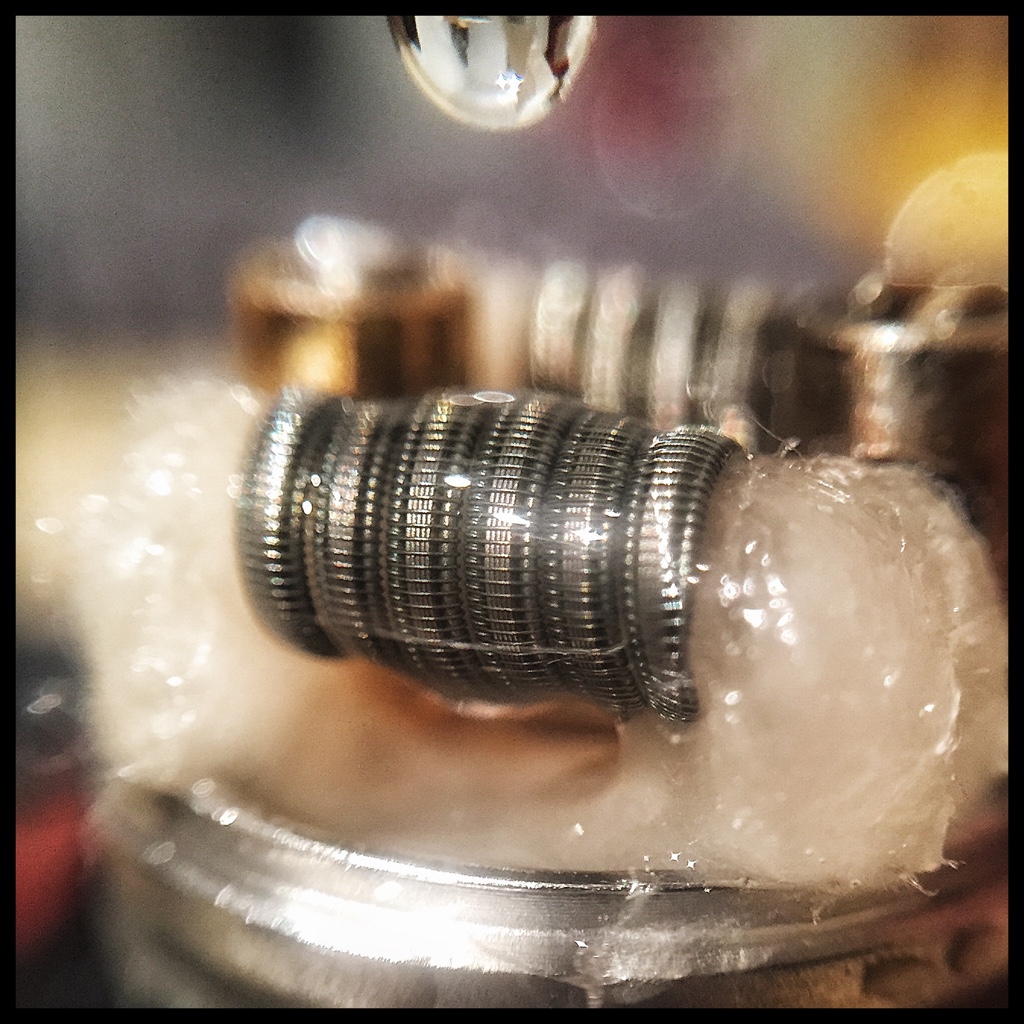

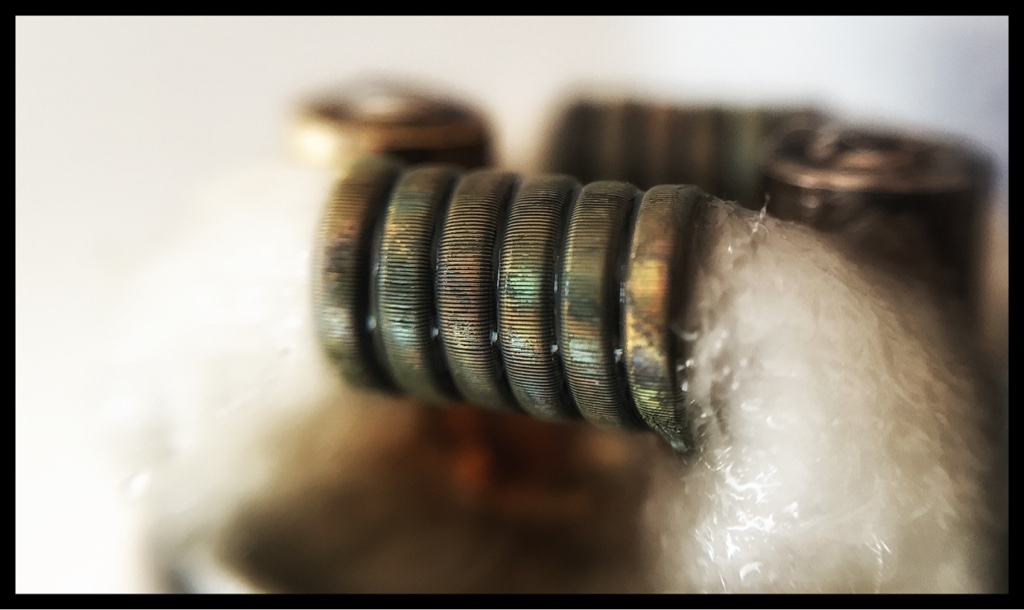

24g/42g Twistedmesses Nichrome 80 Fused claptons. Dual 6 wraps on a 3mm bit is exactly .1 ohms. Delicious build, especially for the work involved. This Twistedmesses N80 is just gorgeous during the dry firing phase. Wonderful colors coming out in this wire. Definitely the best <15 min build. Minimal work/maximum flavor. Built by way of M.Terk swivel method



[BUDKISS]

m terk is a beast. love his stuff.
Great work. I dont have anything smaller than 40. want to get 50g but havent done so yet.
I bet this build would be crazy with a staged heating wrap between. love the colors btw



[itsmenotyou]

24g/42g Twistedmesses Nichrome 80 Fused claptons. Dual 6 wraps on a 3mm bit is exactly .1 ohms. Delicious build, especially for the work involved. This Twistedmesses N80 is just gorgeous during the dry firing phase. Wonderful colors coming out in this wire. Definitely the best <15 min build. Minimal work/maximum flavor. Built by way of M.Terk swivel method

You sir also earn an "i hate you in the best way" haha

sent from a dumb operated smart phone



[scarecrowjenkins]

m terk is a beast. love his stuff.
Great work. I dont have anything smaller than 40. want to get 50g but havent done so yet.
I bet this build would be crazy with a staged heating wrap between. love the colors btw

Thanks! I would've added a parallel wire but the resistance was already pretty low. Typically i'll do that for a little added "oomph" but this was already a hot, hard hitting build. I had to dry fire the coils one at a time until the resistance climbed over the .1 mark since i wanted to run it on the sigelei. The flavor on the 42 is damn good, about the same as the 40



[scarecrowjenkins]

You sir also earn an "i hate you in the best way" haha

sent from a dumb operated smart phone

Haha thank you! Quite an honor!!



[itsmenotyou]

3 peices of 24 ga a1 twisted. Gonna see how they work out at 150+watts. Will update

sent from a dumb operated smart phone



[scarecrowjenkins]

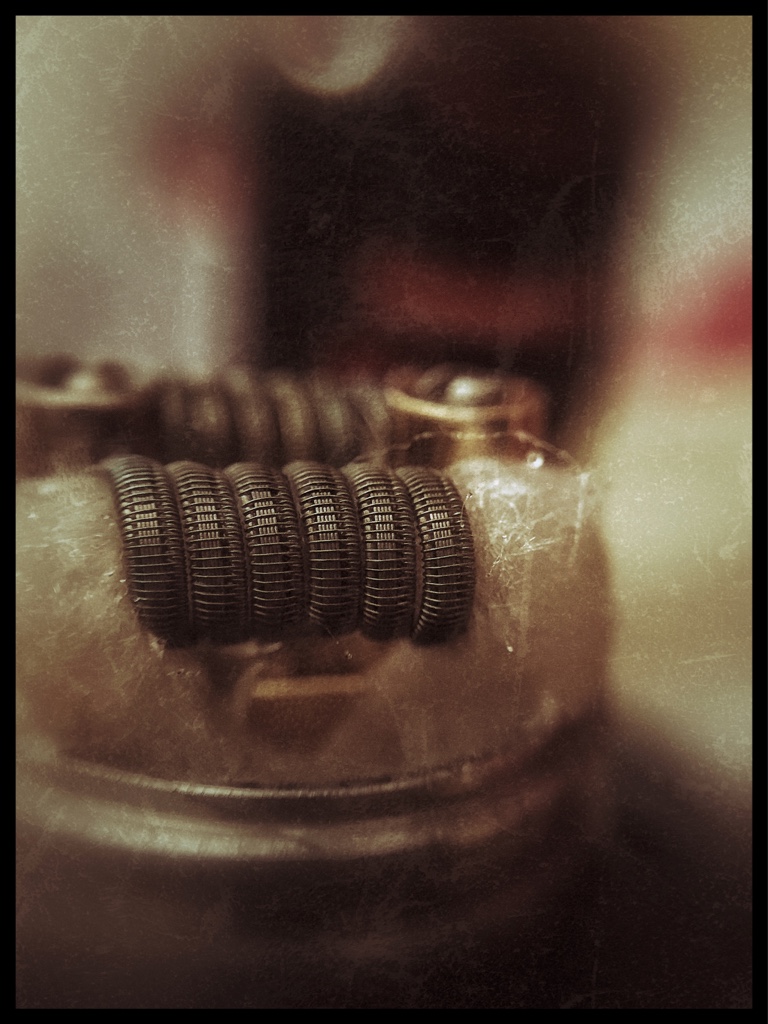

Half-staggered/stapled/fused clapton. 28g frames, one of them is staggered w/40g. 6 pieces of .5 ribbon wire sandwiched vertically between them and then all wrapped up in 42g. 40/42g Twistedmesses Nichrome 80. Ribbon is A-1. I would have taken more/better photos but i REALLY wanted to vape on this build. Freaking DELICIOUS. Flavor is spectacular, and vapor is total cloud chasing status. The video is of this build at 3.7v which is about the same as a mech mod. Dual 6 wraps 3mm ID is .14 ohms. Cheers!



[itsmenotyou]

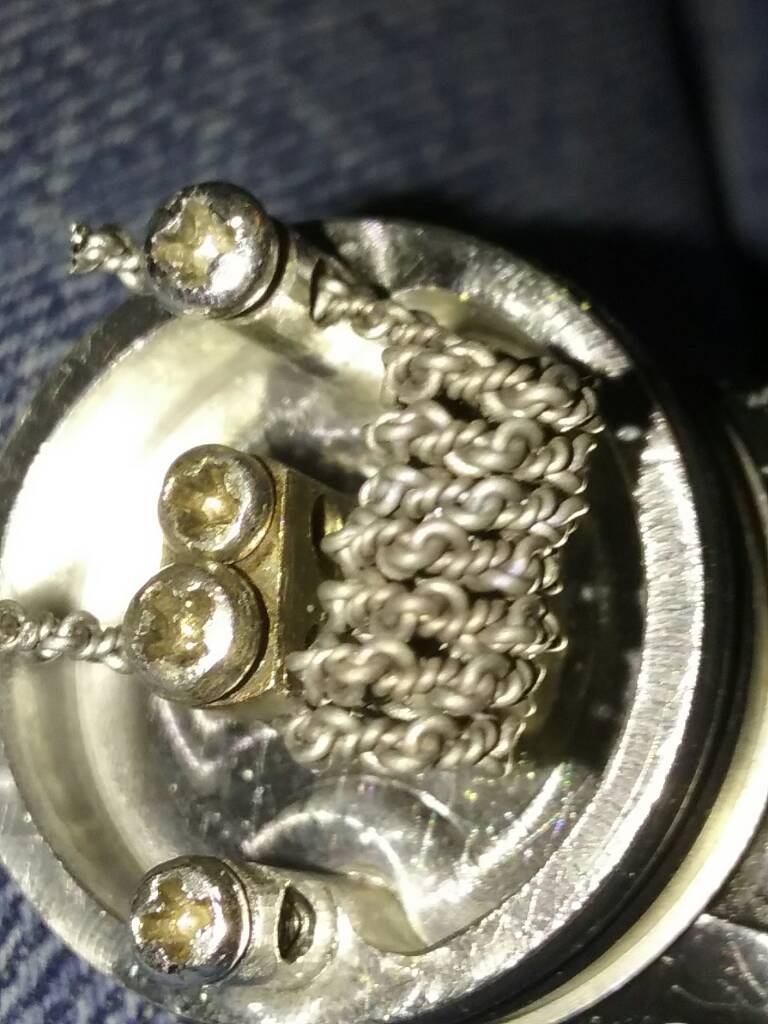

3pieces of 24 ga a1 twisted. 5 wraps around a 2.4mm screw driver. Came in at .13

sent from a dumb operated smart phone



[TF Vaping]

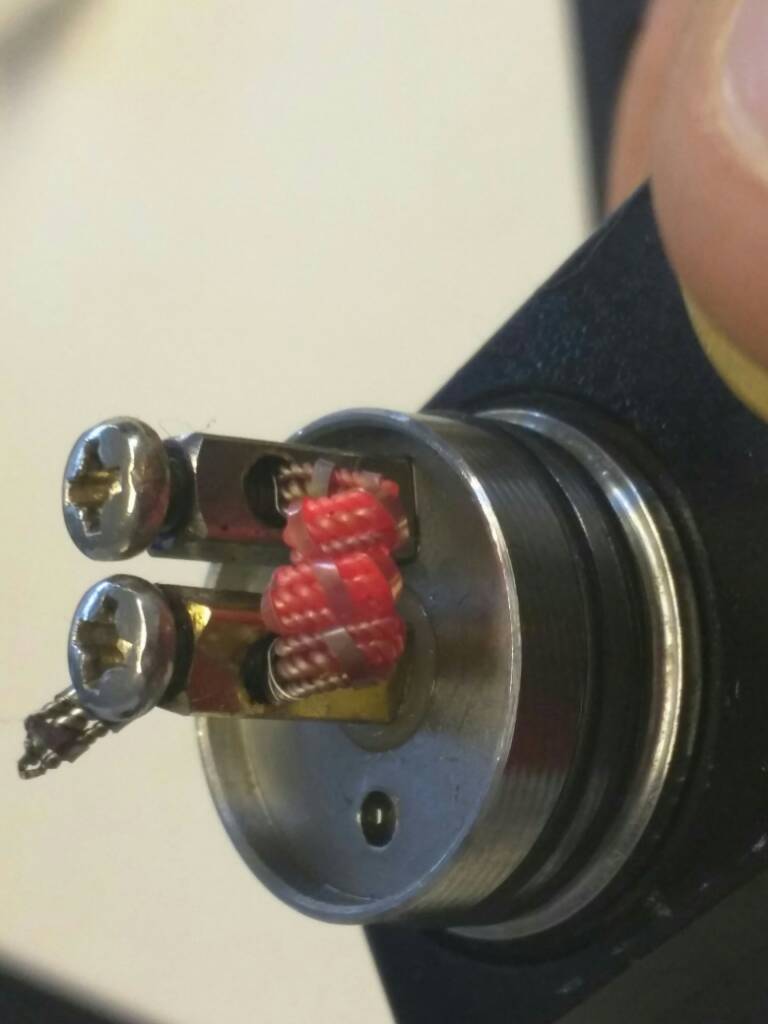

Don't know what to call it, but its twisted 2 28 kanthal paralleled with 26 nichrome 80 wrapped with .05 ribbon. Had to drill out the post holes on my velocity to fit it.

Sent from my Nexus 6 using Tapatalk



[Ldiddy33]

It looks like the ammo belt that feeds a mini-gun on the end going into the top post that's exposed. Awesome build!!!


Sent from my iPhone using Tapatalk



[itsmenotyou]

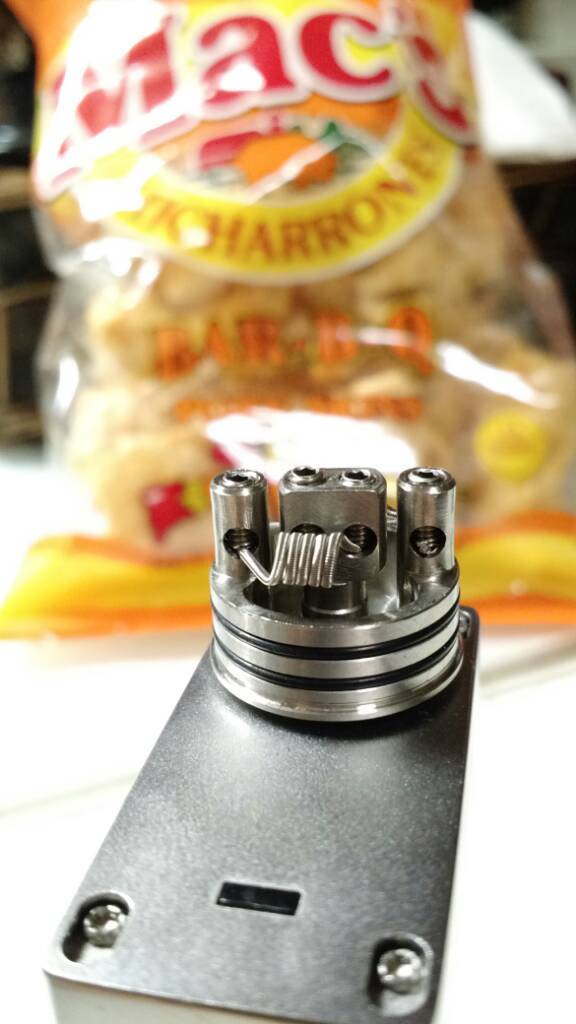

2x 24 ga ka1 with 36 ga n80 .25 ohm 5 wraps on 2.4mm

sent from a dumb operated smart phone



[TF Vaping]

Already posted and scrapped this one but I found some left over wire, Buddy ask me how it did and I never took fire pics, so figured I'd share here too.

It was cool because you'd see the nichrome core and ribbon brighten up a split second before the kanthal sides. More of a neat looking coil before a vaping coil. Passes the time

Sent from my Nexus 6 using Tapatalk



[BUDKISS]

I love the way a mix of wire fires on a dragon skin coil. Very cool



[itsmenotyou]

Low quality coil porn?

2x24 with 36. Trying to get used to working with the 36

sent from a dumb operated smart phone



[BUDKISS]

Have you considered therapy?

Funny. Yes I have. I had it. Didn't take.



[CrazyChef]

2x24 with 36. Trying to get used to working with the 36

Kanthal? I'm getting a little better with 36g myself - but not good enough to post yet.
Also just got some 40g kanthal and Ni80 in today. They look like a friggin' human hair.
