Post your builds

Discussion in 'Coil Building' started by Vape_geek, Jun 25, 2014.

  1. MrMeowgi

    MrMeowgi The Vapin' Drummer Staff Member Senior Moderator VU Donator Diamond Contributor Member For 4 Years

    Blog Posts:
    0
    Joined:
    Sep 25, 2015
    Messages:
    14,672
    Good job man. Looks better than my triple cores

    Sent from my LM-Q610(FGN) using Tapatalk

  2. MrMeowgi

    MrMeowgi The Vapin' Drummer Staff Member Senior Moderator VU Donator Diamond Contributor Member For 4 Years

    Blog Posts:
    0
    Joined:
    Sep 25, 2015
    Messages:
    14,672

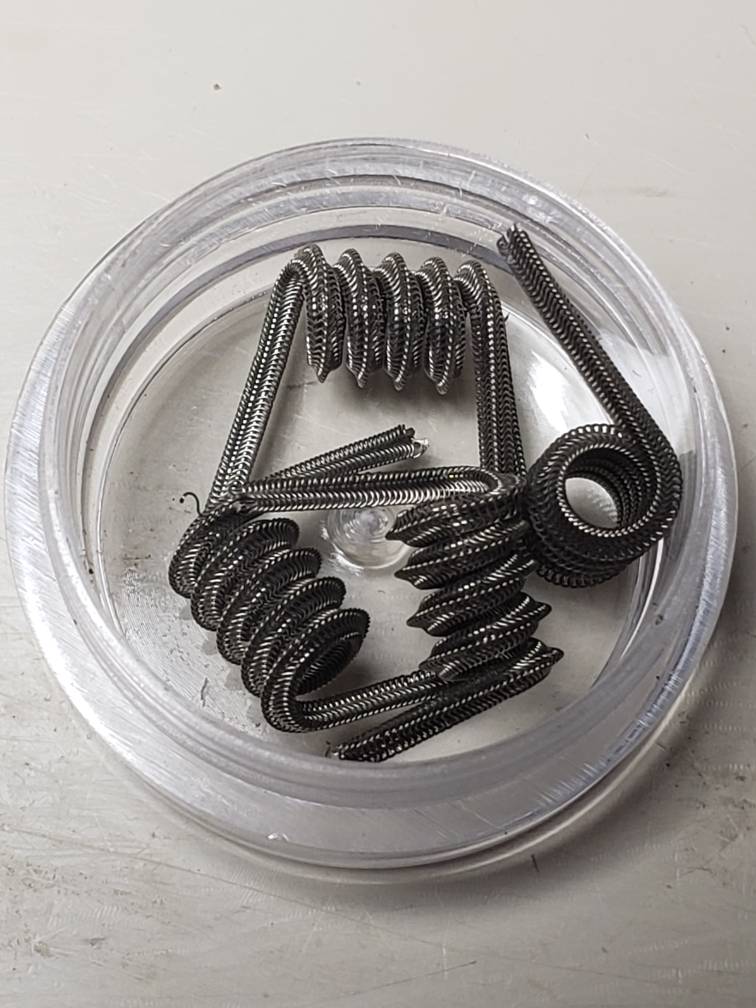

    Some mowhawks from Vaperoxx's grab bag o' goodies.[​IMG]

    Sent from my LM-Q610(FGN) using Tapatalk

    mach1ne, Shredtravolta, WPMac and 5 others like this.
  3. CrazyChef v2.0

    CrazyChef v2.0 Gold Contributor Member For 2 Years VU Challenge Team ECF Refugee Reddit Exile

    Blog Posts:
    0
    Joined:
    Mar 13, 2017
    Messages:
    4,502
    I beg to differ - those are fantastic! I can make 3 core aliens all day long, but STILL can't make a 3 core fused Claptons to save my life. Just can't seem to keep the cores from bunching up for some reason.

    Last edited: Nov 29, 2018
  4. zephyr

    zephyr Dirty Pirate Meg VU Donator Gold Contributor Member For 3 Years Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jan 6, 2017
    Messages:
    4,610

    Ditto to that! Those look awesome, and good Vapes, and you're a Builder now! :D

  5. WPMac

    WPMac Silver Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jul 9, 2018
    Messages:
    1,029
    Dude ... 38 is HARD to work with if your not used to it. That is fantastic!! My first 3 core I had to smack them with a ball been hammer to flatten them out lmao!

  6. bx10r

    bx10r Platinum Contributor Member For 3 Years

    Blog Posts:
    0
    Joined:
    Dec 19, 2016
    Messages:
    6,058
    Good job bro..

    Sent from my SM-G950U using Tapatalk

  7. WPMac

    WPMac Silver Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jul 9, 2018
    Messages:
    1,029
    Meg put up a video somewhere (I THINK it was in this thread?!?) showing someone's (don't remember who) technique for multi-round-core builds. It's the only way I do it now. As a matter of fact my cotter pin hardly ever comes out of my drill. Just some 18g galvanized steel I bent to shape. I use it for almost everything. Even for stagging ribbon stacks, and big ol fat builds where I just float the ribbon and use whatever round cores there are to attach to the pin. Every once in a while I'll pull it to clean off the clippings that cling to it lol


    Found the video -


  8. zephyr

    zephyr Dirty Pirate Meg VU Donator Gold Contributor Member For 3 Years Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jan 6, 2017
    Messages:
    4,610

    Haha, that is meeee :D I want to make more videos! I sound so chill :D

  9. WPMac

    WPMac Silver Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jul 9, 2018
    Messages:
    1,029
    Well I tried lol. Was supposed to be a hedgehog ... But even with goggles I couldn't see well enough to find the right stretch. Para-40g is bulky and springy from a 35g decore. Finding aliens from micro decores isn't to bad. But getting peaked variations is hard af!
    40g interlock over 6 ply .3/28 cores

    IMG_20181128_142332.jpg IMG_20181128_142756.jpg

    Last edited: Nov 29, 2018
  10. WPMac

    WPMac Silver Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jul 9, 2018
    Messages:
    1,029
    And a test run on some razorback enigma/squareliens,
    single 22g core , .3r decored from 28g

    IMG_20181129_112535.jpg IMG_20181129_112620.jpg

  11. mach1ne

    mach1ne Gold Contributor Member For 4 Years

    Blog Posts:
    0
    Joined:
    Feb 18, 2016
    Messages:
    1,658
    cthulhu 1928 came in today. 27 n80 freestyle pbusardo style mtl build (just made it wide enough to cover the deck, didnt count wraps or use steam-engine). came to .9 ohms. the rda seems very nice. the air ranges from a tight (but not too tight) mtl on the smallest hole, to just a little too loose for me on the largest one. largest hole might be a good restricted lung hit for someone who likes that. dat drip tip doe lol

    single shot, not stacked, light edit to the curves and saturation...

  12. zephyr

    zephyr Dirty Pirate Meg VU Donator Gold Contributor Member For 3 Years Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jan 6, 2017
    Messages:
    4,610

    Hedgehogs are hard ;-;


    Dangit, I just thought of that last week and yet you beat me to it! :sad:

  13. WPMac

    WPMac Silver Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jul 9, 2018
    Messages:
    1,029
    Well I can do bigger hedgehogs, like decoreing from 30g or lower. And I probably should not have done interlocks ... would have made it much more manageable.

    aaawww Didn't mean to steal your thunder :(

  14. bx10r

    bx10r Platinum Contributor Member For 3 Years

    Blog Posts:
    0
    Joined:
    Dec 19, 2016
    Messages:
    6,058

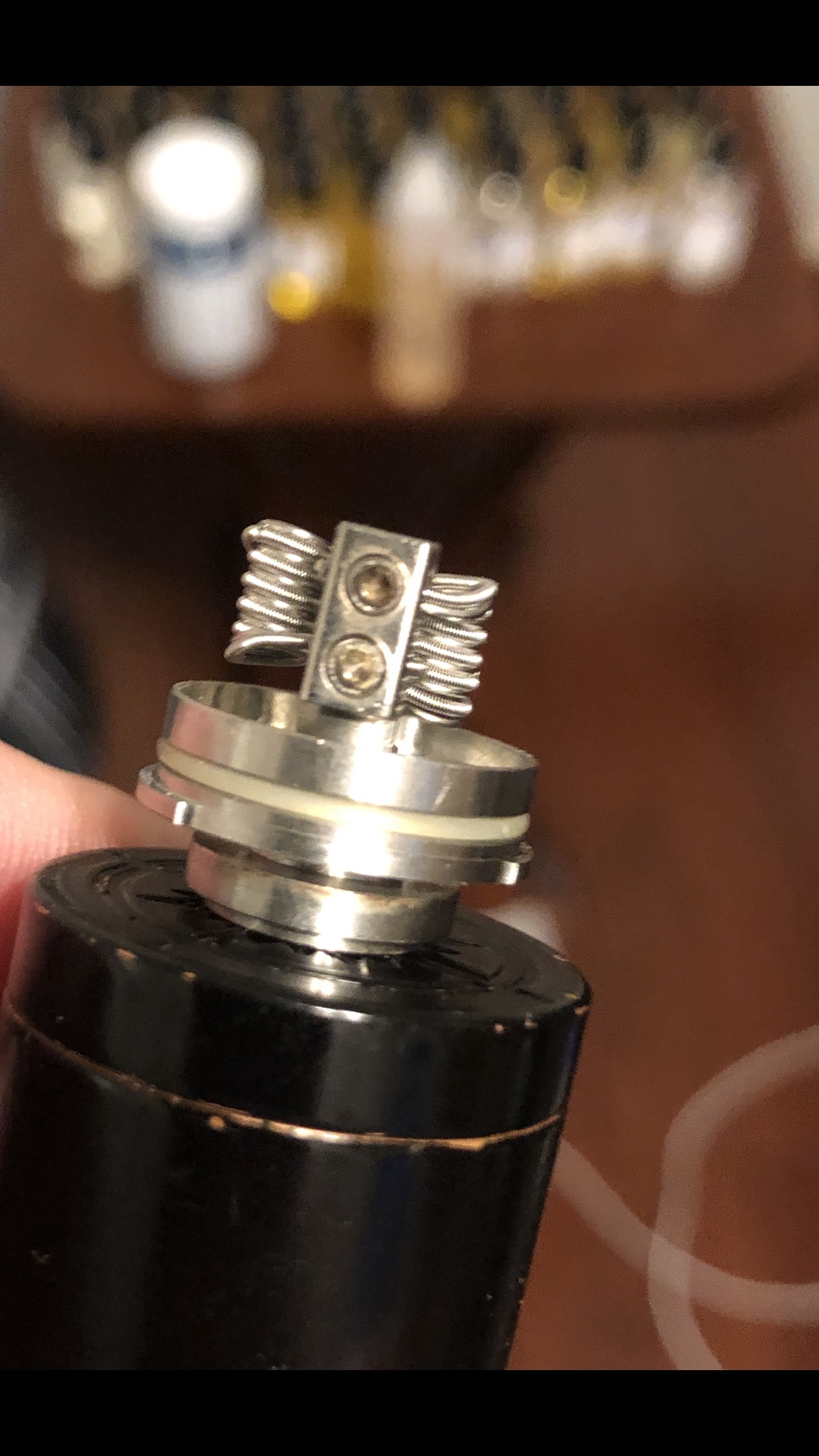

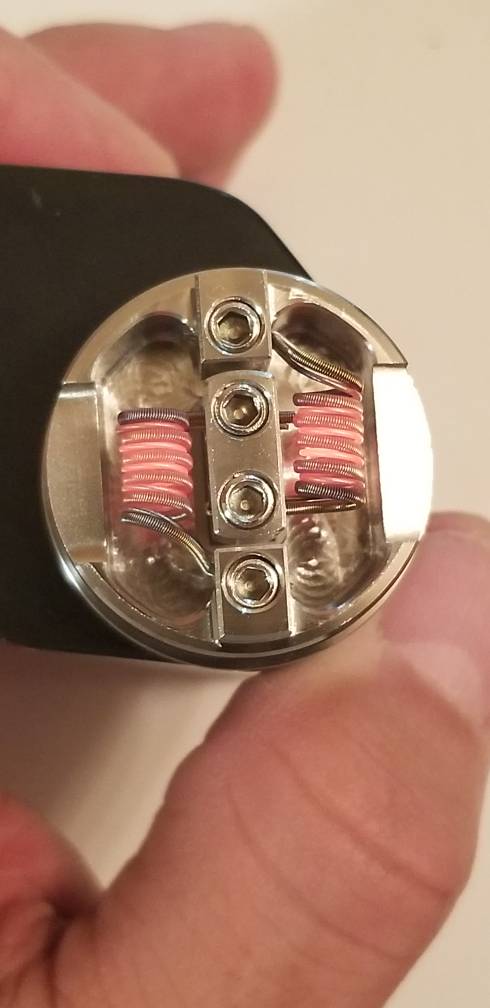

    Simple fuseds with a parrelel on the 30mm warhead
    2x28ni60/34ni80
    25 ss316 parellel
    Im all over the place with wire on this one[​IMG][​IMG][​IMG]

    Sent from my SM-G950U using Tapatalk

  15. ScReWbALL

    ScReWbALL Silver Contributor Member For 3 Years

    Blog Posts:
    0
    Joined:
    Jan 12, 2017
    Messages:
    1,310

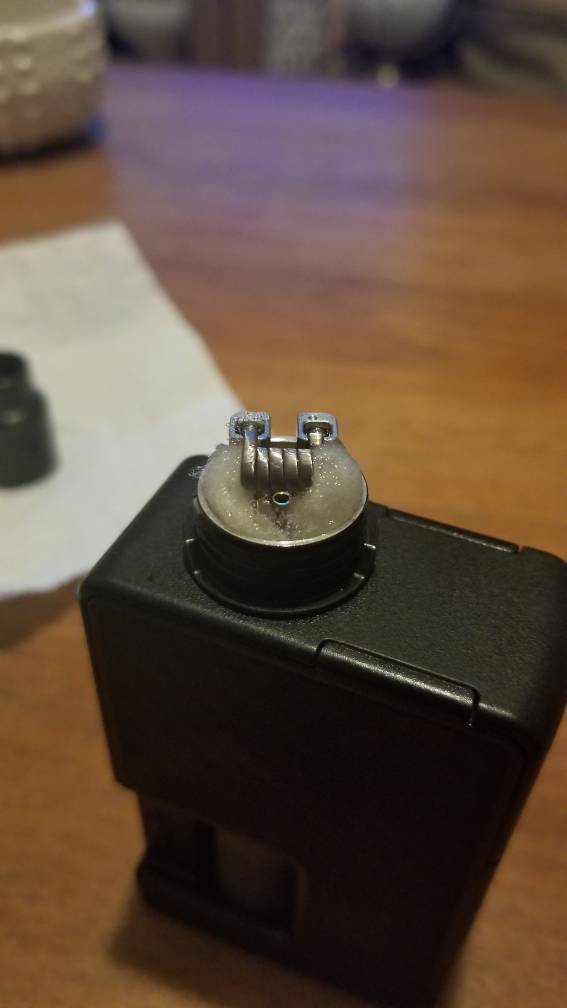

    How ironic! I was digging through my graveyard and ran across my old Aromamizer Supreme (the old one) and wondered if it would work on a tube and chose the same type of build...26/36N80 in parallel with a single strand of 26ga N80
    [​IMG][​IMG][​IMG][​IMG][​IMG]

    Fits flush on my old Broadside and no leaks and still vapes like a champ...who’d’ve thunk it.


    Do things by the book...just be sure that you are the author

  16. chrisakasparky

    chrisakasparky Silver Contributor Member For 2 Years

    Blog Posts:
    0
    Joined:
    Dec 28, 2017
    Messages:
    593
    I always liked staging with bare wire. It reminds me of when I started building coils and even twisting it was something new and exciting heh

  17. zephyr

    zephyr Dirty Pirate Meg VU Donator Gold Contributor Member For 3 Years Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jan 6, 2017
    Messages:
    4,610
    0.4 k ribbon, 28g ss430 frames, 46g k fuse
    2.5mm id 0.13 ohms

    PSX_20181130_130014.jpg PSX_20181130_130032.jpg

  18. WPMac

    WPMac Silver Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jul 9, 2018
    Messages:
    1,029
    Let's SSFC our SSFC :)
    Got about 4 inches ... trying to decide if I coil it or do something fancy with it.
    Inner - 6 ply .3, 28/42 ... Outer - 2x 2 ply .45, .43(~25.5g)/38


  19. MrMeowgi

    MrMeowgi The Vapin' Drummer Staff Member Senior Moderator VU Donator Diamond Contributor Member For 4 Years

    Blog Posts:
    0
    Joined:
    Sep 25, 2015
    Messages:
    14,672
    Art. Those coil mashups. Amazing build

    Sent from my LM-Q610(FGN) using Tapatalk

  20. raymo2u

    raymo2u VU Donator Platinum Contributor Member For 4 Years Unlisted Vendor

    Blog Posts:
    0
    Joined:
    May 31, 2015
    Messages:
    9,555

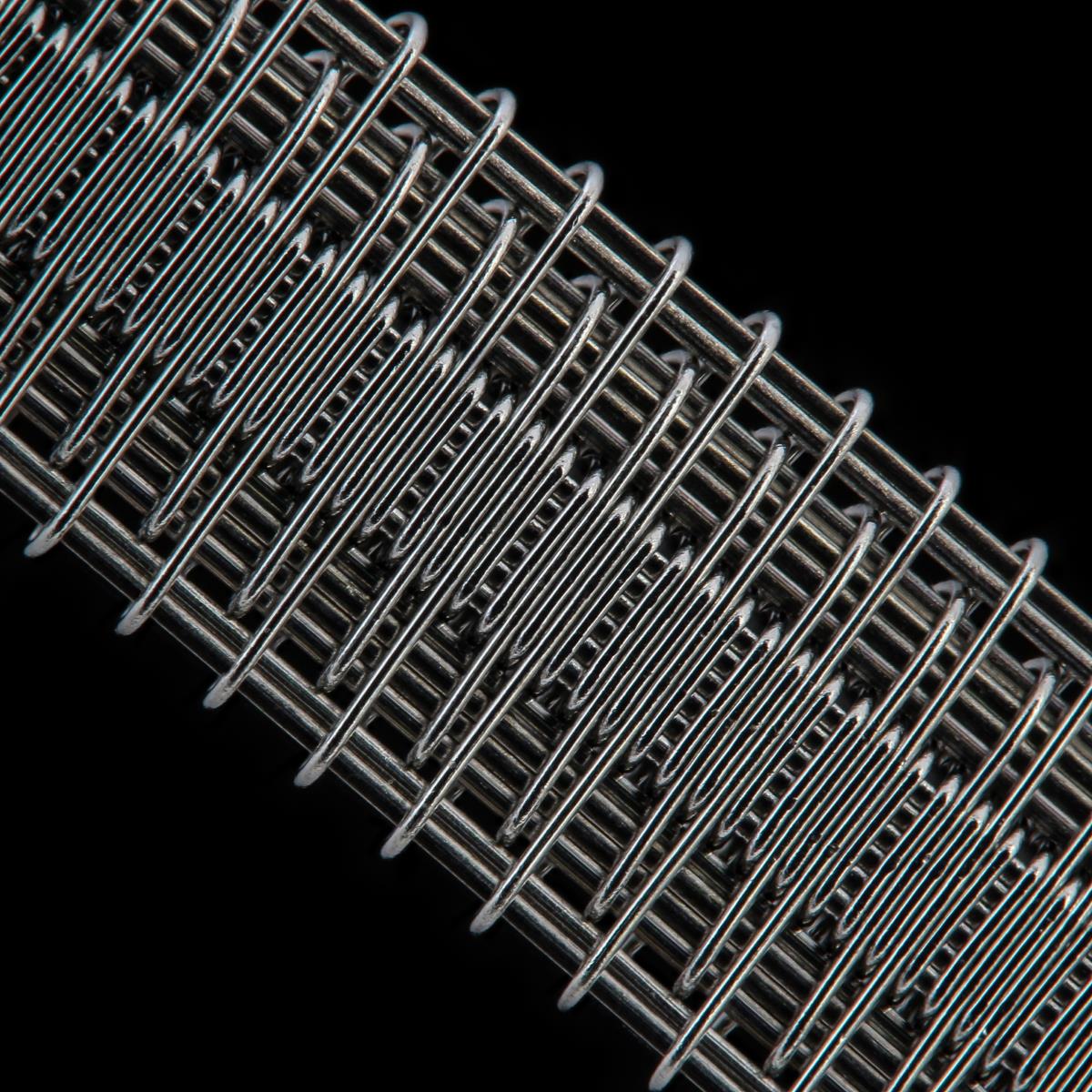

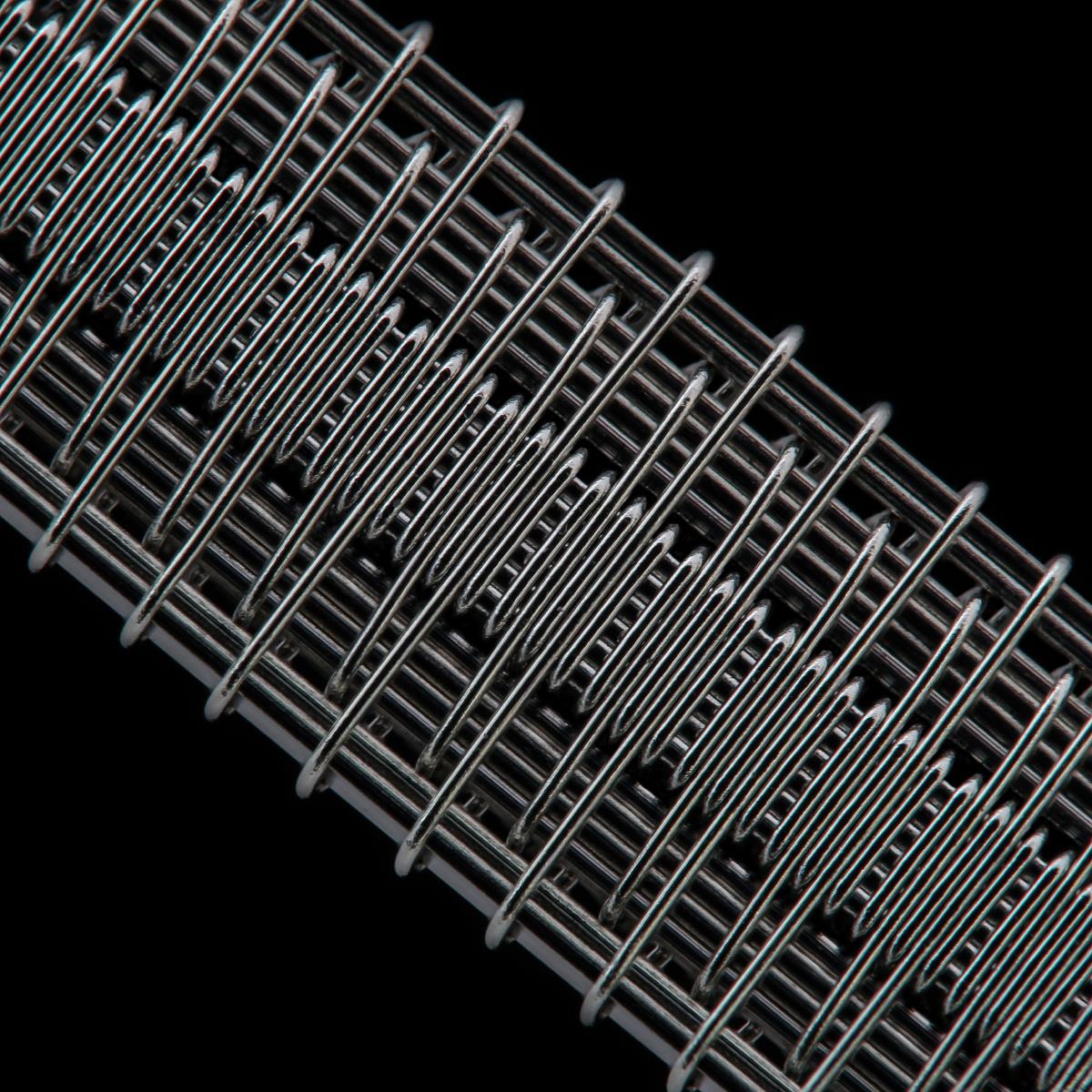

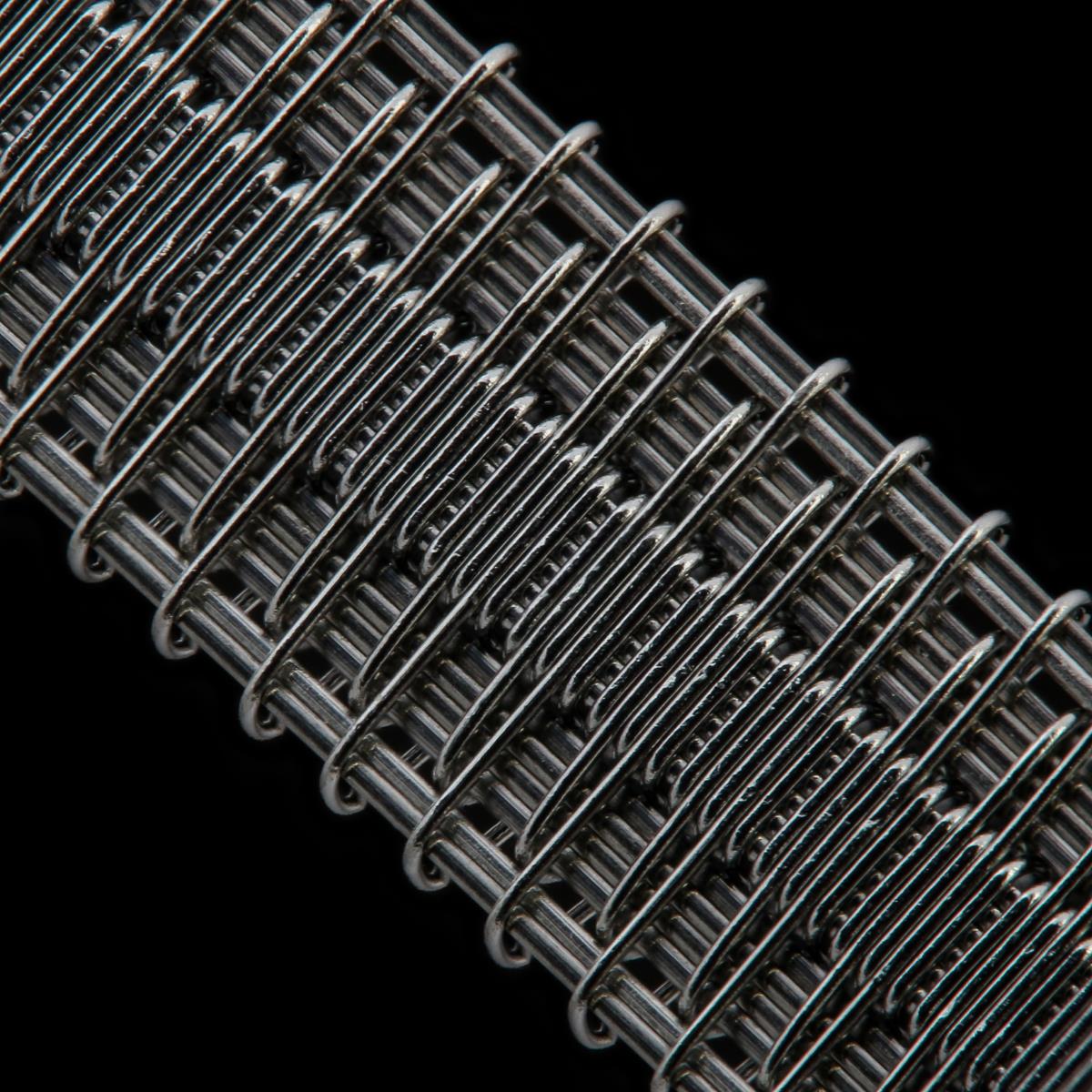

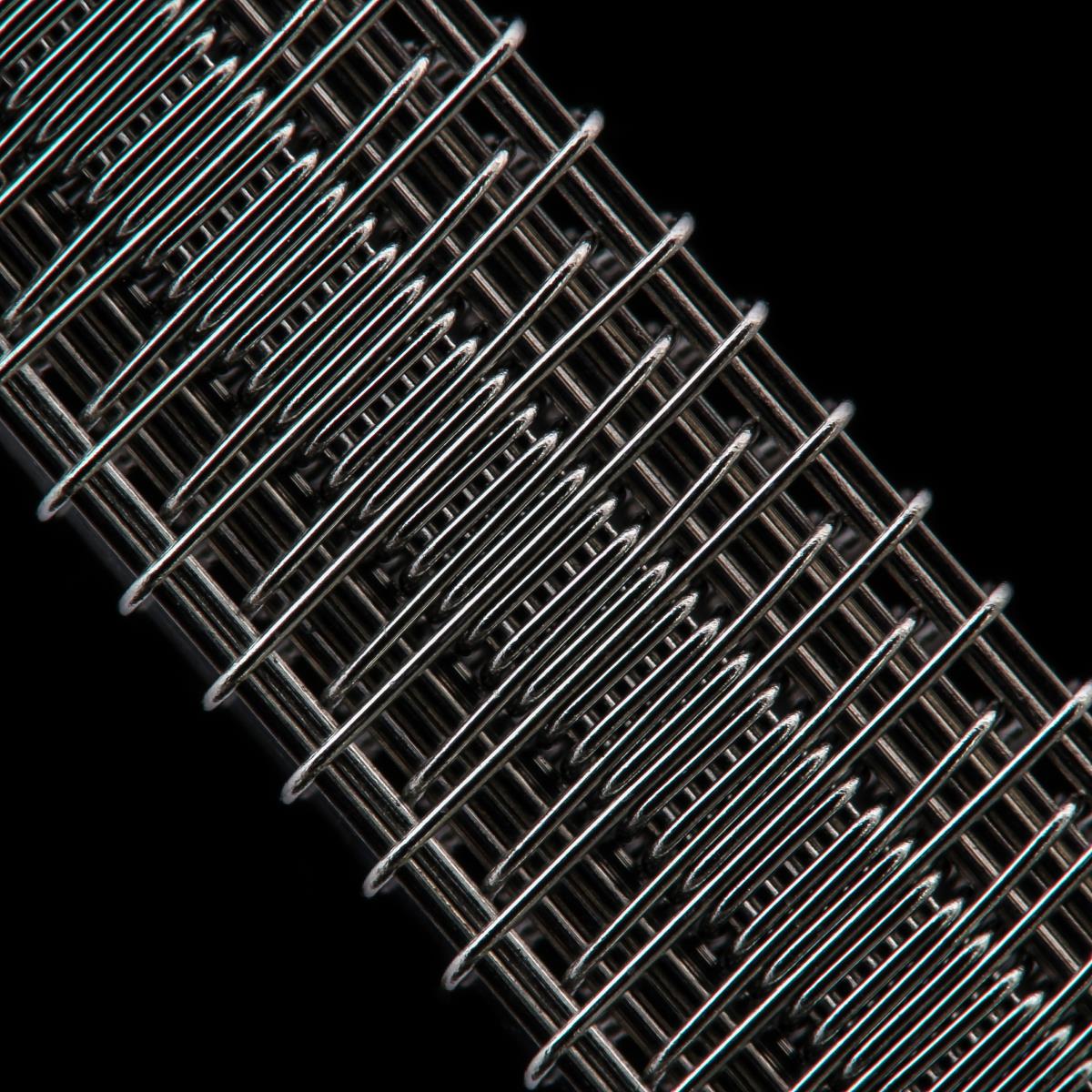

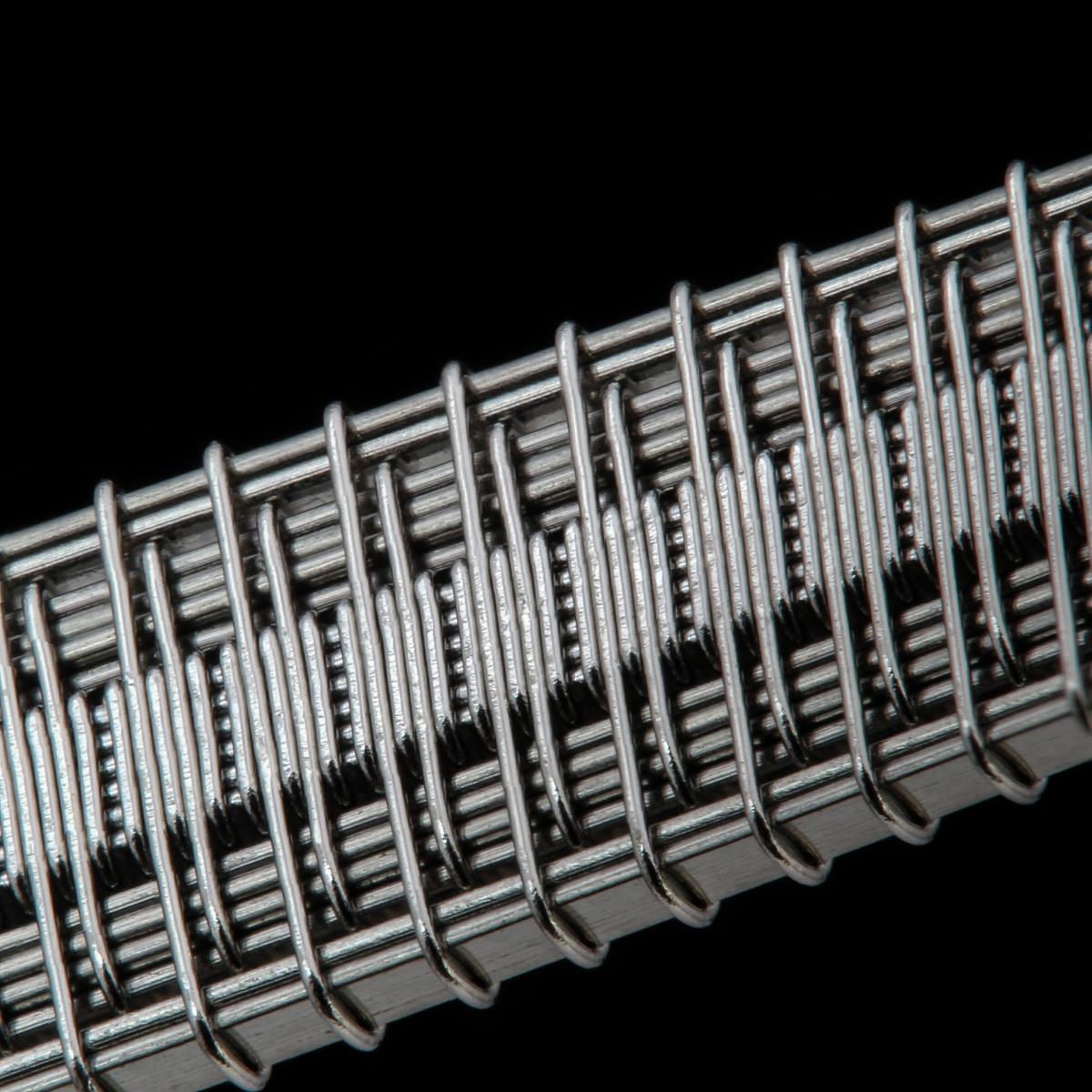

    Made a Double Frame Stagg, thought I'd share some shots of the WirePorn
    6 x .4R/12ply x .3R/42g


    [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

  21. WPMac

    WPMac Silver Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jul 9, 2018
    Messages:
    1,029
    I can't figure out how to get enough light to the face of my subject when doing super tight macro. My phone has to be so damn close ...

  22. raymo2u

    raymo2u VU Donator Platinum Contributor Member For 4 Years Unlisted Vendor

    Blog Posts:
    0
    Joined:
    May 31, 2015
    Messages:
    9,555
    Dont shine it directly on your subject, put your subject directly next to a piece of paper and have the light reflect off the paper onto your subject. This will also decrease the hot spots of lighting and make more detail stand out.

    gsmit1, WPMac, zephyr and 2 others like this.
  23. WPMac

    WPMac Silver Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jul 9, 2018
    Messages:
    1,029
    Yah I use white printer paper to defuse. I just can't figure out how to get light into that tight space between the macro lens and the wire so you can see into it, reference my last picture. I even made a lightbox, and use multiple 75w daylight bulbs, hoping that would help. But the shadows inside still linger.

  24. Severinomotta

    Severinomotta Bronze Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Jul 13, 2018
    Messages:
    254
    Last two weeks were crazzzzy as fuck. Moved to new home, worked as a mother fuc**, got sick, but... Today is my first day of vacation.
    So, simple build, simple life. Chill time.
    alien2.jpg alien1.jpg

  25. gsmit1

    gsmit1 Platinum Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Mar 14, 2018
    Messages:
    5,015
    How bout if I post @zephyr's builds instead.

    2x26 N80
    46g kanthal fused Clapton.
    2,5 id. Her reader says .12 mine says .13 :D
    46? A surgeon's hands.
    cute-smiling-doctor-emoticon-wearing-head-mirror-emoji-smiley-vector-illustration-96762294_cr.jpg
    They glowed perfect on the first try.
    2x26-N80 46 kanthal fusedclapton.jpg

    I cannot get the shots I want with this camera though.


    Last edited: Dec 1, 2018
    raymo2u, The_hat_trix, zephyr and 2 others like this.
  26. chrisakasparky

    chrisakasparky Silver Contributor Member For 2 Years

    Blog Posts:
    0
    Joined:
    Dec 28, 2017
    Messages:
    593

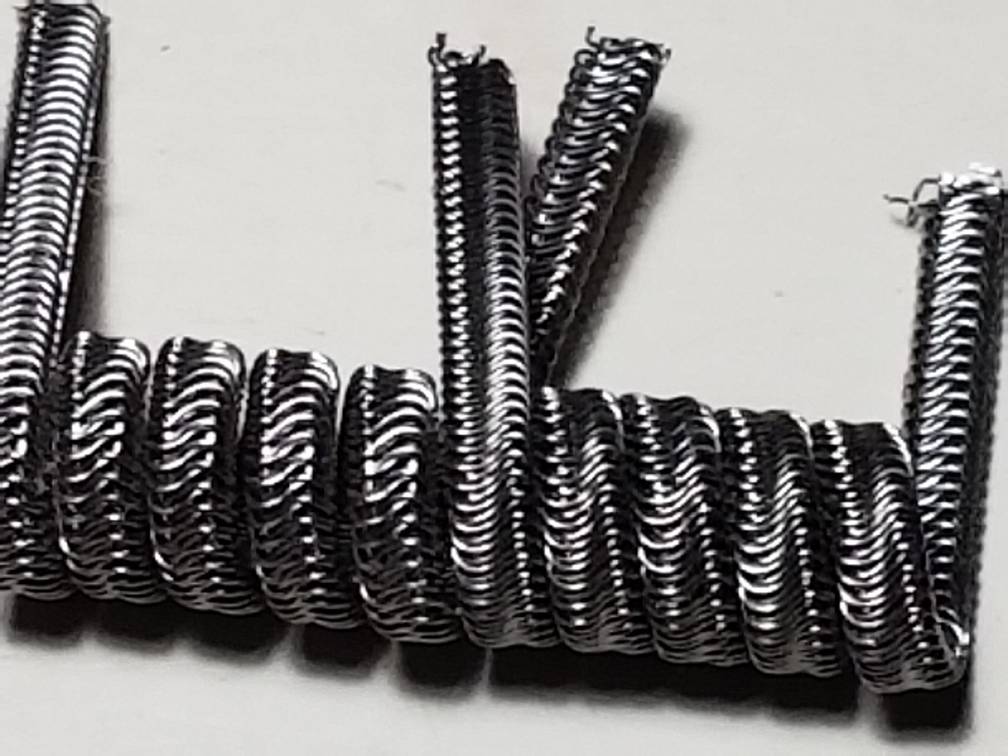

    Tried a corrugated tonight. I’ve made on once before but this one is waaay better. Really wanted enough for a dual but I kept collapsing ribbon.
    2x28g, 3x.3r, 36g, 40g
    [​IMG][​IMG]

  27. chrisakasparky

    chrisakasparky Silver Contributor Member For 2 Years

    Blog Posts:
    0
    Joined:
    Dec 28, 2017
    Messages:
    593
  28. chrisakasparky

    chrisakasparky Silver Contributor Member For 2 Years

    Blog Posts:
    0
    Joined:
    Dec 28, 2017
    Messages:
    593
    I was gonna fuse that coil with 36g SS, but it kept pulling the stick apart. I tried fusing with 40g Kd and it fixed that problem. These stagger builds make 36g feel huge.. I wish master of clouds sold 40g wholesale

    raymo2u, The_hat_trix, zephyr and 2 others like this.
  29. Shredtravolta

    Shredtravolta VU Donator Silver Contributor Member For 3 Years Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Feb 16, 2017
    Messages:
    1,216
    This is a staggerton variation that I already tried posting once, but this one is mo betta.

  30. mach1ne

    mach1ne Gold Contributor Member For 4 Years

    Blog Posts:
    0
    Joined:
    Feb 18, 2016
    Messages:
    1,658
    if you have any kind of magnifying lens/loupe, just press your phones camera hole against the center of the lens. the phone can autofocus through it fine, as long as you are not too close. i had a little folding one that was nothing special, and it let me get a couple inches closer to the subject of the photo and stay in focus. then i would just crop out the atomizer and coils and it would make for an ok pic.
    nice work. i still need to get my hands on the corrugation tool and try that out. i particularly like the third, installed coil shot. you skipped two fuses in the perfect fucking spot and it looks like the coil is frowning at us
    [​IMG]


    holy shiiiiit :eek::eek: you savage! :slowclap:

  31. chrisakasparky

    chrisakasparky Silver Contributor Member For 2 Years

    Blog Posts:
    0
    Joined:
    Dec 28, 2017
    Messages:
    593
    Haha thanks man! Happy accidents lol

  32. chrisakasparky

    chrisakasparky Silver Contributor Member For 2 Years

    Blog Posts:
    0
    Joined:
    Dec 28, 2017
    Messages:
    593
    Awesome! That’s the kind of build I’m trying to practice towards, I love asymmetric staggers. Really cool man! Get a magnifying glass or something though! Lol. I think we should have a fundraiser so everyone can get a clip on macro for their phones!

    raymo2u, The_hat_trix, zephyr and 2 others like this.
  33. chrisakasparky

    chrisakasparky Silver Contributor Member For 2 Years

    Blog Posts:
    0
    Joined:
    Dec 28, 2017
    Messages:
    593
    What gauges did you use?

  34. Shredtravolta

    Shredtravolta VU Donator Silver Contributor Member For 3 Years Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Feb 16, 2017
    Messages:
    1,216
    Thanks @mach1ne!!! Thanks @chrisakasparky!!! It’s not a mind blowing build but it’s a little bit of an accomplishment for me because I tend to lean more towards the alien variations then staggered variations but I’m trying to get better and ya know it’s one build at a time, just inching out outside the comfort zone. I appreciate you guys! Btw Chris your corrugated build is awesome!!

  35. chrisakasparky

    chrisakasparky Silver Contributor Member For 2 Years

    Blog Posts:
    0
    Joined:
    Dec 28, 2017
    Messages:
    593
    Right there with ya, I’m always doing aliens, sometimes braiding, and hardly ever staggering. But I’ve watch a few good videos and have had my ears open for advice so I’m ready to push it in a new direction.

    raymo2u, The_hat_trix, WPMac and 2 others like this.
  36. Shredtravolta

    Shredtravolta VU Donator Silver Contributor Member For 3 Years Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Feb 16, 2017
    Messages:
    1,216
    Well your corrugated build looks great to me, you pull off some really really sweet builds. You’re a guy who really made me notice your improvement from when I first started posting on this forum to now!:popcorn: Btw I used 38g and .5 ribbon. Looked like it was gonna get wonky on me at a certain point. Thank God for nylon pliers.

    raymo2u, The_hat_trix, WPMac and 2 others like this.
  37. choderfett

    choderfett Senior Moderator Staff Member Senior Moderator VU Donator Gold Contributor Member For 2 Years

    Blog Posts:
    0
    Joined:
    Jan 5, 2018
    Messages:
    3,590
  38. GillyDaKidd78

    GillyDaKidd78 Member For 1 Year

    Blog Posts:
    0
    Joined:
    Sep 2, 2018
    Messages:
    95

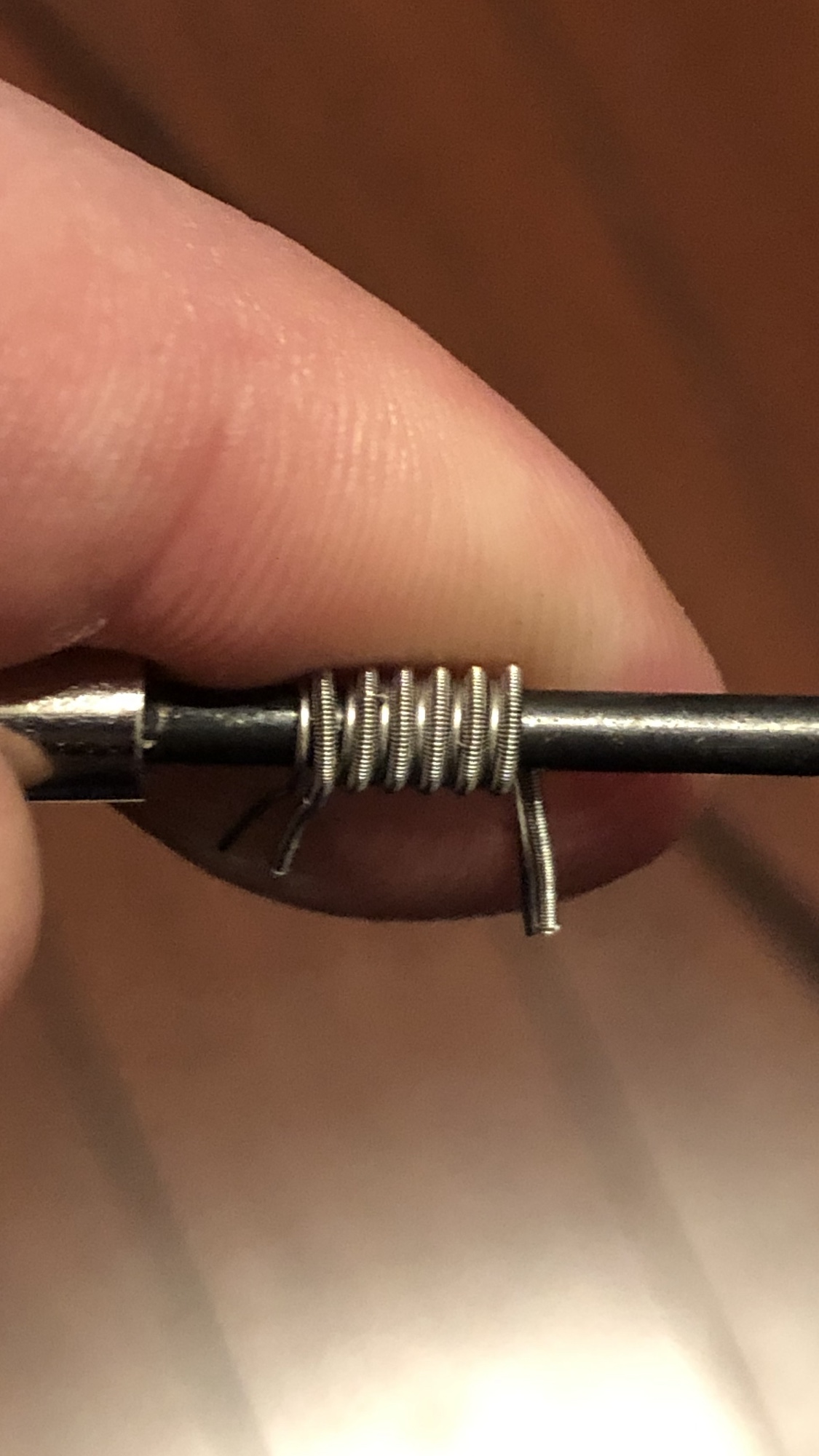

    Something simple this time, 3 x 24g Kanthal 8 wraps each at 0.25 Ohms. Nice vape!


    Attached Files:

  39. WPMac

    WPMac Silver Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jul 9, 2018
    Messages:
    1,029
    Yah 36 is pretty beefy for for stagger fusing with any ribbon involved. It puts a ton of tension on the cores and causes the ribbon to want to split and/or roll. I found that 38 was the sweet spot for me when learning to stagger fuse. It was big enough to not feel like you don't have control of it, but small enough that it wasn't pulling my cores apart all the time.

  40. VAPEROXX

    VAPEROXX Gold Contributor Member For 4 Years Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Sep 14, 2015
    Messages:
    2,952
    Some Holiday Grab Bag specials for a customer! Aliens, Mohawks, and Fraliens. [​IMG][​IMG][​IMG]

    Last edited by a moderator: Dec 8, 2018
  41. VAPEROXX

    VAPEROXX Gold Contributor Member For 4 Years Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Sep 14, 2015
    Messages:
    2,952
    Interlocking Aliens...36 over 3x26 NiCh80 [​IMG]

    Last edited by a moderator: Dec 8, 2018
  42. VAPEROXX

    VAPEROXX Gold Contributor Member For 4 Years Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Sep 14, 2015
    Messages:
    2,952
    Close-up of the Interlocking Alien wire...[​IMG]

    Last edited by a moderator: Dec 8, 2018
  43. WPMac

    WPMac Silver Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jul 9, 2018
    Messages:
    1,029
  44. VAPEROXX

    VAPEROXX Gold Contributor Member For 4 Years Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Sep 14, 2015
    Messages:
    2,952
    Yes, but not uncomfortably so

    Last edited by a moderator: Dec 8, 2018
    Shredtravolta and The_hat_trix like this.
  45. VAPEROXX

    VAPEROXX Gold Contributor Member For 4 Years Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Sep 14, 2015
    Messages:
    2,952
    40 gauges are hotter IMO

    Last edited by a moderator: Dec 8, 2018
    Shredtravolta and The_hat_trix like this.
  46. gsmit1

    gsmit1 Platinum Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Mar 14, 2018
    Messages:
    5,015
    Ok, I've been staring at this for a couple minutes now. Even though I can't do it myself, I can usually at least figure out how somebody else did it. Not with this one.

    Except that both decores must have been fed at the same time. Do you sort of twist it together beforehand or something?

    Shredtravolta and The_hat_trix like this.
  47. VAPEROXX

    VAPEROXX Gold Contributor Member For 4 Years Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Sep 14, 2015
    Messages:
    2,952
    You do a parallel Clapton like with a stagger. But leave both Clapton wires on for your parallel decore. Then stretch and alien as usual. With quite a bit more tension I might add. And slow and easy does it. Then voila! Interlocking Aliens!

    http://vapingunderground.com/threads/wts-wtt-aspex-performance-coils.434798/

  48. gsmit1

    gsmit1 Platinum Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Mar 14, 2018
    Messages:
    5,015
    AHA! I wouldn't have thought of that. :D

    They stay together like that when you stretch them? Apparently so because there it is, but in my head it seems like the two decores wouldn't stay consistent while stretching them. Or actually after their stretched. Like they'd separate.

    Shredtravolta and The_hat_trix like this.
  49. VAPEROXX

    VAPEROXX Gold Contributor Member For 4 Years Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Sep 14, 2015
    Messages:
    2,952
    They stay together. I just stretch carefully and feed slowly while I'm spinning them.

    http://vapingunderground.com/threads/wts-wtt-aspex-performance-coils.434798/

  50. chrisakasparky

    chrisakasparky Silver Contributor Member For 2 Years

    Blog Posts:
    0
    Joined:
    Dec 28, 2017
    Messages:
    593
    Made some fraliens today. Couldn’t get them to glow evenly so I kinda roasted them.. But they’re good enough for a few days
    10x.12R, 2x28g, 36g (22g decore) all ss316l, 0.064 ohms
    Edit: running regulated at 120 watts. Wouldn’t dare put this build on a single cell mech.
    [​IMG]

    Last edited: Dec 3, 2018

Share This Page

Close This Message
