Question on the new Smok V8 Stick

Discussion in 'Unregulated (Mechanical) Mods' started by Just_Calle, Jan 9, 2017.

  1. Just_Calle

    Just_Calle Member For 3 Years Member For 2 Years

    Blog Posts:
    0
    Joined:
    Dec 3, 2016
    Messages:
    149
    I'm new to vaping so if I'm not in the right place I apologize.
    I've got a new Smok V8 Stick, I guess it's considered a mech mod.
    I'm trying to understand the limitations and capabilities as such.
    I bought this device not because I was wanting to get deep into mechs, but because I knew I liked the big baby beast and I like the design of the stick.
    Smok seems to be going out of their way to designate the coils for this device (and tank by association) as only for the stick.
    [​IMG]

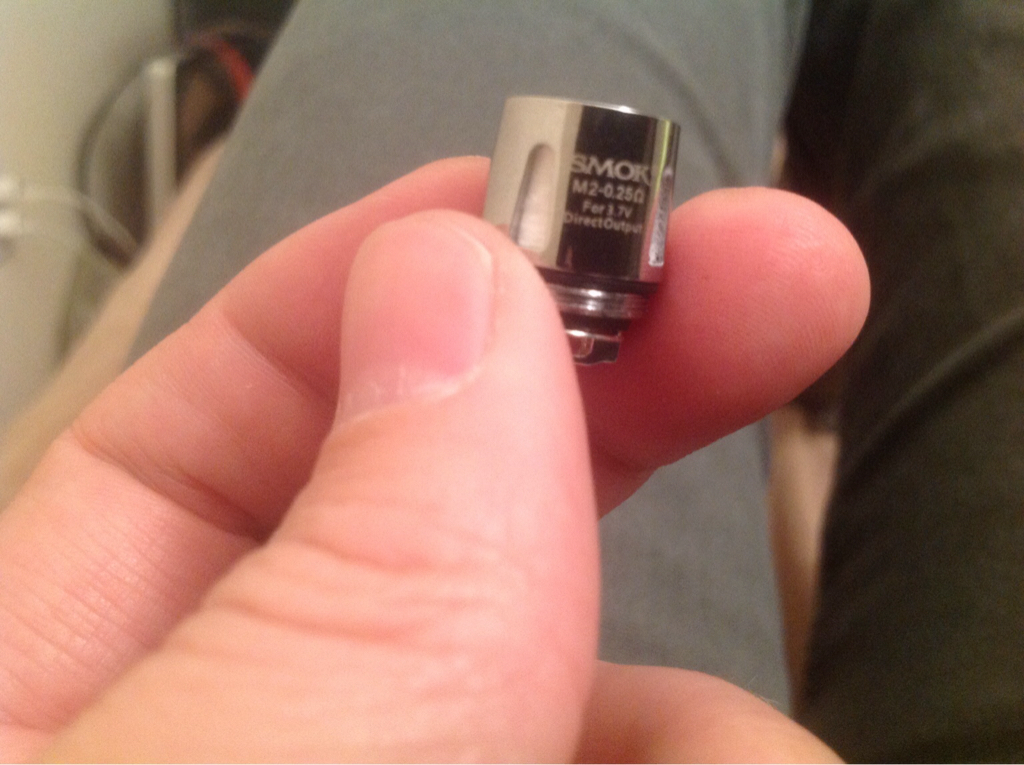

    Apologies for the camera quality. It reads "M2-0.25 Ohms, for 3.7V Direct Output". It comes with a 0.15 ohm installed with the same message.
    Does this mean that a normal 0.15 ohm coil (like any of the baby coils offered) wouldn't work properly? I'm just trying to understand the difference mechanically/electronically.

    Thanks in advance for your help gang.


    Sent from my iPad using Tapatalk

  2. Just_Calle

    Just_Calle Member For 3 Years Member For 2 Years

    Blog Posts:
    0
    Joined:
    Dec 3, 2016
    Messages:
    149
    [​IMG]

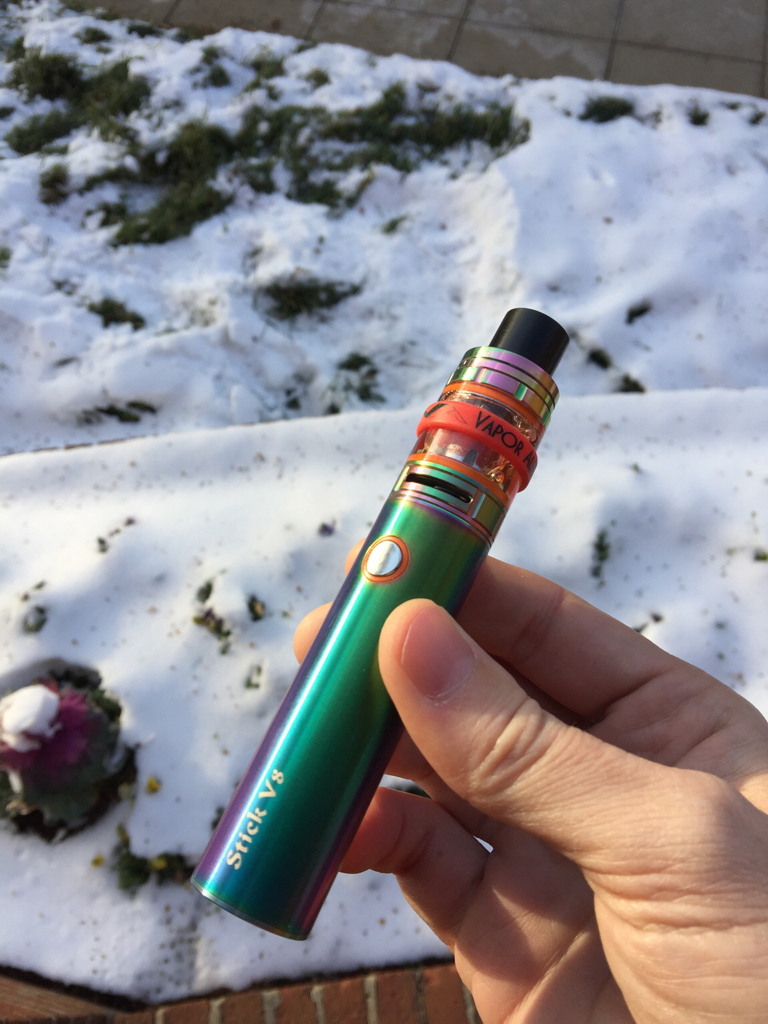

    I put the extra coil (0.25 direct voltage pictured above) into a second baby beast tank to try out.
    I don't think it's quite as nice as the 0.15 ohm that was preinstalled.
    Still trying to understand why the .25 vapes differently.


    Sent from my iPhone using Tapatalk

  3. 69kaine

    69kaine

    Blog Posts:
    0
    Joined:
    Jan 10, 2017
    Messages:
    2
    The battery is rated for 20A. A 0.15ohm coil would pull over 24 amps at 3.7, Is this safe? Also most of the baby coils except the T6/0.6/RBA seem to work outside the range of smok rated recommended and best wattages. Cant find any info about the rated/recommended ranges of the 0.15/0.25 m2 coils. Also you cant actually buy the M2 0.15 0.25 coils only a 0.3 version seems to be available. Does the battery work at 3.7V only with the m2 coils somehow? If using other baby coils does it just go from max charge 4.2v down to 3.4v? If so that would be 28amps at 4.2v for a 20amp battery 0.15ohm coil.

    Some specs here

    http://www.smoktech.com/atomizer/tfv8-baby-big-family

  4. SirRichardRear

    SirRichardRear AKA Anthony Vapes on Youtube VU Donator Diamond Contributor Member For 3 Years Reviewer

    Blog Posts:
    0
    Joined:
    Jul 8, 2016
    Messages:
    12,263
    it's actually an AIO (all in one) and regulated. it's just not adjustable. the device will automatically adjust accordingly based on the coil. you are more then safe to just use it as it is
    thats not correct. regulated mods don't use ohms law to calculate amp draw. the formula is P/V=I
    with that coil the device will put out about 55 watts so 55/3.7= 14.8 amps

    Just_Calle likes this.
  5. 69kaine

    69kaine

    Blog Posts:
    0
    Joined:
    Jan 10, 2017
    Messages:
    2
    Cheers for the info. Wondering how does it auto adjust to the coil? Say I put an old clearo ce4 on it how would it determine the correct settings? Also each of the different baby coils available how could you tell what wattage amps etc they are running at? Thanks.

  6. Just_Calle

    Just_Calle Member For 3 Years Member For 2 Years

    Blog Posts:
    0
    Joined:
    Dec 3, 2016
    Messages:
    149
    Thank you sir for taking a minute to un-muddy the waters (in my head).


    Sent from my iPhone using Tapatalk

    SirRichardRear likes this.
  7. SirRichardRear

    SirRichardRear AKA Anthony Vapes on Youtube VU Donator Diamond Contributor Member For 3 Years Reviewer

    Blog Posts:
    0
    Joined:
    Jul 8, 2016
    Messages:
    12,263
    not sure as that kind of info isn't released, but most likely it reads resistance then adjusts the wattage so it's putting out 3.7 volts all the time.
    no problem!!

  8. alonbl

    alonbl Member For 3 Years Member For 2 Years Member For 1 Year

    Blog Posts:
    0
    Joined:
    Dec 11, 2016
    Messages:
    10
    Can anybody tell me the difference between the 0.15 and 0.25 coils? Thanks.

  9. Just_Calle

    Just_Calle Member For 3 Years Member For 2 Years

    Blog Posts:
    0
    Joined:
    Dec 3, 2016
    Messages:
    149
    I didn't notice any particular difference on how it vaped.
    I bought the 0.3 replacements and they work just fine too.


    Sent from my iPad using Tapatalk

  10. baccadude

    baccadude

    Blog Posts:
    0
    Joined:
    Feb 11, 2017
    Messages:
    3
    Just about the only difference is in the resistance, 0.1 ohm. (The ohm is just a unit of electrical resistance; it measures the difficulty an ampere of current has in passing a given point.) I'm not familiar with those particular coils, so there may be a difference in material used to make the wire. You should notice very little difference when using them.

  11. triakis

    triakis Bronze Contributor Member For 3 Years

    Blog Posts:
    0
    Joined:
    May 4, 2016
    Messages:
    188
    I got the black kit.
    I put my black goon on it with a .16 build (fused clapton). I nornally vape this at about 75-85W on reg devices.
    This stick, while a bit underpowered for this setup actually is useable and the battery life is decent.
    My only gripes are minor. I don't like the halloween color (orange ring on fire button) and the recharge time is long. The battery lifetime overall (charge cycles) will be better though. If it's your only device though it's a con for sure.

    And no, not a mechanical by any means. Mechanical just means that. A battery or two or more and (mechanical) way to complete the circuit to an atomizer. Once you add MOSFETs, displays, etc. it's no longer mechanical. A pure FET design isn't regulated either (you control the power by your build like a mechanical device) but technically isn't mechanical.

  12. xxxwaynexxx

    xxxwaynexxx

    Blog Posts:
    0
    Joined:
    Apr 26, 2017
    Messages:
    1
    Can a rebuildable dip Atomizer be used with the v8 stick?

  13. triakis

    triakis Bronze Contributor Member For 3 Years

    Blog Posts:
    0
    Joined:
    May 4, 2016
    Messages:
    188
    Yes it can. Stay above .1 and you're fine.

  14. BCBuch

    BCBuch Bronze Contributor Member For 2 Years Member For 1 Year

    Blog Posts:
    0
    Joined:
    Jun 4, 2017
    Messages:
    232
    A little late in the discussion, but here goes. I ran the stock .15's in my V8 stick and Baby V8 stick for just over 7 days. I have a bit of diminished taste due to a motorcycle wreck I was in back in '08. Last night when I was at work the flavor in both sticks started falling off. I'm actually surprised they lasted that long. Anyhoo When I got home instead of putting .15 from the 5 pack I bought I decided to put the .25 coils that came with both kits in to see what the difference would be. After both rigs were primed and let sit for about 30 minutes I tried them out. About the only difference I could come up with is the vape was a little cooler and smoother, and there may have been a little less flavor than with the .15 coils. After getting some sleep and trying them when I got up the flavor seemed fine. The vape still seems smoother.

  15. cb1974

    cb1974

    Blog Posts:
    0
    Joined:
    Oct 13, 2017
    Messages:
    2
    don't know if anybody will read this... i just bought the v8 stick with the big baby tpd atomizer..there is an adapter delivered with the kit to use the normal baby beast coils... i didn't kew before that i will get another version... btw i ordered some m2 coils for it ..the only ones i could get were the 0.15 m2 ..now I'm kind of worried myself how the stick will handle them and if there is something new in the battery maybe... how does the stick handle the 0.15 coils..i would have liked to get the 2.5 but there were sold out everywhere... would you guys try out the 0.15 or better not to try out ? I just wonder how this works as it has a limit on 20 amps..

    kind regards
