Tfv4 quad coil rebuild.. (easy)

skiibo4200

Silver Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
Tfv4 quad coil rebuild better flavor and vape experience tailored to your needs.. (plus get more use out of your old quad coil heads).

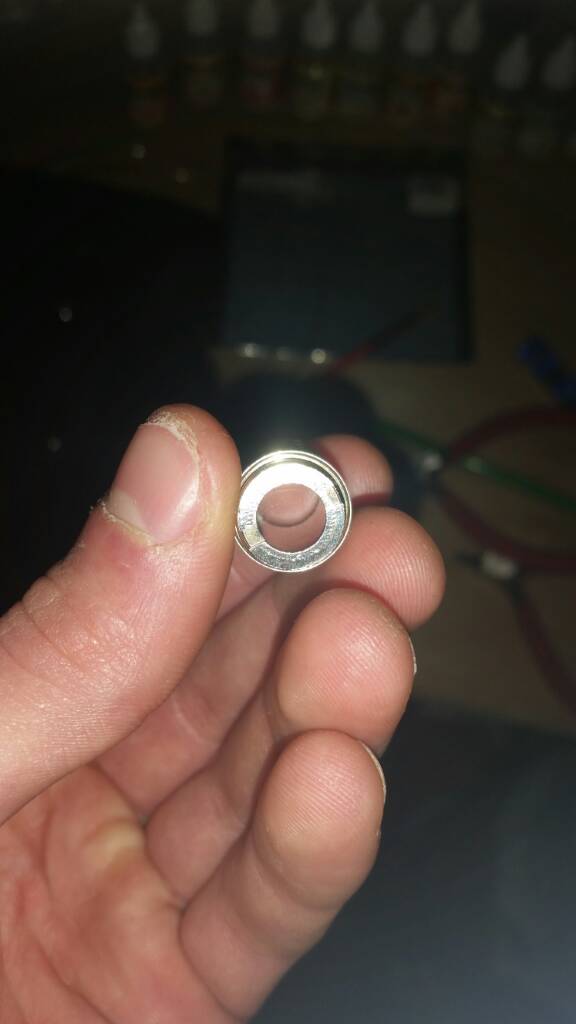

First tear out your old quad coil head should look like this..


Next make your coil I prefer about 4mm makes for the best fit, can use wire to your liking but around 5 wraps fits best, make sure to wrap them loose and uniformed, then bend your leads down make sure they are oposite sides of your coil. Should look something like this.


Next take a thin piece of cotton the width of you coil and start the first wrap under the long lead of your coil then continue to wrap over the lead (this prevents the lead from shorting out on your coil) wrap as tight as you can. Should look like this.

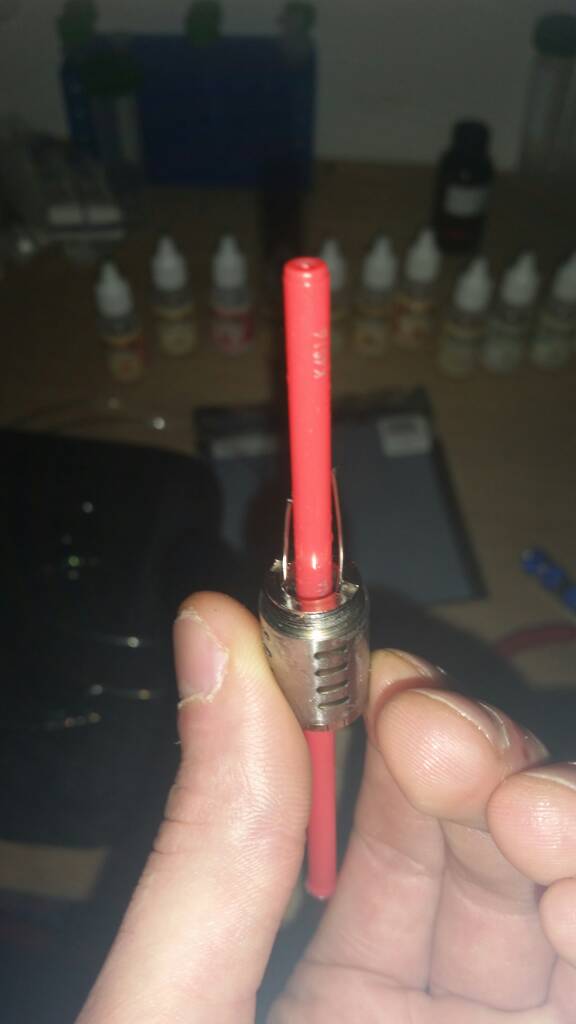

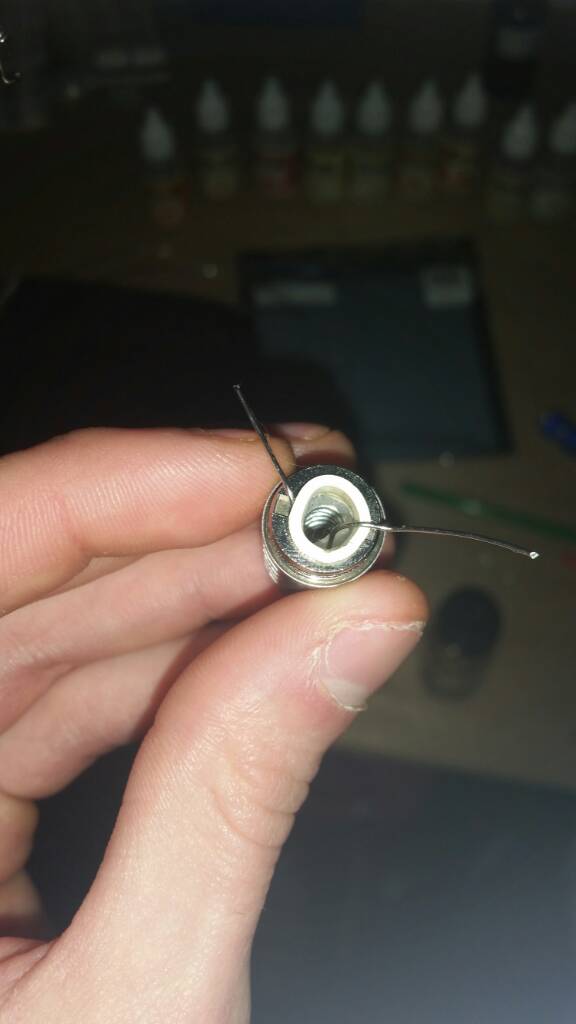

Next insert your wicked coil through the top of your tfv4 coil head, keep whatever you used to wrap it through the center of your coil to prevent deformations. Once in your coil head and positioned correctly, bend your leads at the bottom to keep it in place. Here's a few pics.






Next insert your bottom pin with your rubber gasket and make sure one lead is touching the pin and gasket and the other is touching the tfv4 coil head and the gasket. Should look like this.


Next put your tool you used to wrap your coils in the center of your coil and pack thin pieces of cotton around the out side of the coil and fill any loose spots and clip your leads as close to the base as you can get them, should like this.

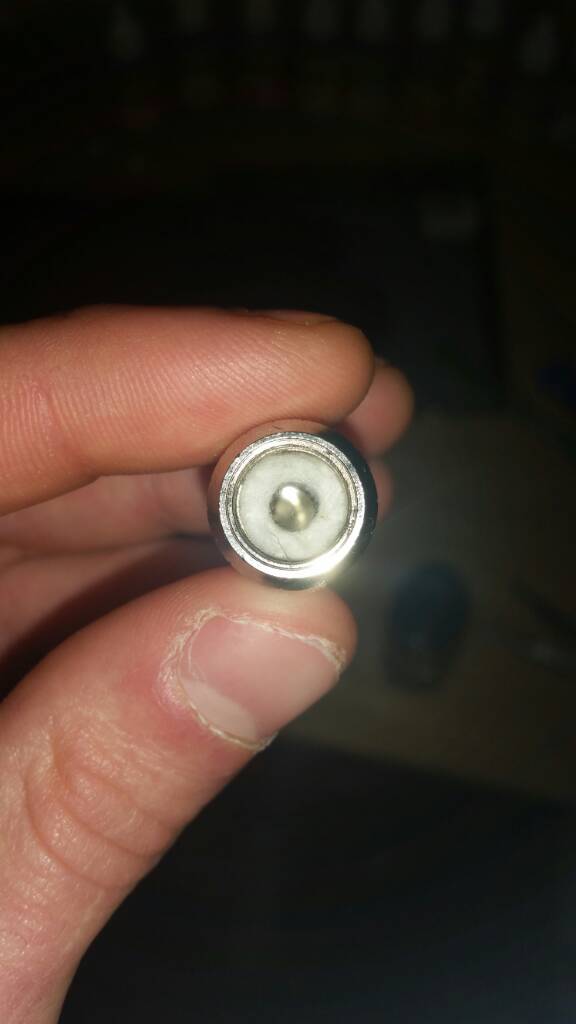

Once fully packed and nice and tight your ready to prime and install your rebuild tfv4 quad coil head. Should look like this.


Hope you enjoyed, feel free to ask any questions.

Sent from my SM-G900R4 using Tapatalk

Last edited:

Scooter 72

Platinum Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
Tfv4 quad coil rebuild better flavor and vape experience tailored to your needs.. (plus get more use out of your old quad coil heads).

First tear out your old quad coil head should look like this..


Next make your coil I prefer about 4mm makes for the best fit, can use wire to your liking but around 5 wraps fits best, make sure to wrap them loose and uniformed, then bend your leads down make sure they are oposite sides of your coil. Should look something like this.


Next take a thin piece of cotton the width of you coil and start the first wrap under the long lead of your coil then continue to wrap over the lead (this prevents the lead from shorting out on your coil) wrap as tight as you can. Should look like this.


Next insert your wicked coil through the top of your tfv4 coil head, keep whatever you used to wrap it through the center of your coil to prevent deformations. Once in your coil head and positioned correctly, bend your leads at the bottom to keep it in place. Here's a few pics.






Next insert your bottom pin with your rubber gasket and make sure one lead is touching the pin and gasket and the other is touching the tfv4 coil head and the gasket. Should look like this.


Next put your tool you used to wrap your coils in the center of your coil and pack thin pieces of cotton around the out side of the coil and fill any loose spots and clip your leads as close to the base as you can get them, should like this.


Once fully packed and nice and tight your ready to prime and install your rebuild tfv4 quad coil head. Should look like this.


Hope you enjoyed, feel free to ask any questions.

Sent from my SM-G900R4 using Tapatalk
Thanks bro. I've had one sitting here and. I've been thinking about doing it. When I first seen it it looked to me it couldn't be any worse than the crown of alantis.
Thank you for that very helpful.

I do have one more question. I used the " kanthal A1 28ga×2 +32ga Clapton wire on a tank coil build. And I can't get it to stop tasting all metallic. I burnt it off first. And it don't taste that way on my rda. Am I doing something wrong

Sent from my VS980 4G using Tapatalk


skiibo4200

Silver Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
I've heard of this happening before, never personally had it happen but it could be if your using ni80 for outer wrap and vaping a citrus type juice it can cause a chemical reaction with the nickel leaving a Metalic taste.. if that's not it it could just need time to break in?

Sent from my SM-G900R4 using Tapatalk


Scooter 72

Platinum Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
Yeah it only happend with the fused not the ni80

Sent from my VS980 4G using Tapatalk


skiibo4200

Silver Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
Some of those fused builds take forever to break in.. they last forever I am testing one right now to see how long it lasts it's a 24gx2 mad rabbit core fused with 36g ni80 and it's lasted 5 months still going strong.

Sent from my SM-G900R4 using Tapatalk


Scooter 72

Platinum Contributor
Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
Well I'll just keep trying I'll get it. And your right they do last. Long as you burn them off. Put fresh cotton and go
It's nice

Sent from my VS980 4G using Tapatalk


Redchigh

Bronze Contributor
Member For 4 Years
Two questions.

1, is this better than using one of the rebuildable decks?

2. Is this a 'quad coil'? I see one coil. Where are the other three?

Sorry for the noob questions.


DaRodent

Member For 4 Years
What gauge wire are you using and what is your target ohms?


Sent from my iPad using Tapatalk


dropin_biking

Member For 2 Years
Member For 1 Year
Two questions.

1, is this better than using one of the rebuildable decks?

2. Is this a 'quad coil'? I see one coil. Where are the other three?

Sorry for the noob questions.
I believe he just happened to use the quad coil for this write up, this would truly be a single coil now that's its modified. I imagine the other coils could be rebuild the same way.

I recently punched out and rebuilt a tripple coil TFV8 head using all these same steps, made one single coil down the middle just like this. Worked quite well I might add.


Fudgey Finger

Silver Contributor
Member For 2 Years
Member For 1 Year
This is awesome. I always figured it could be done, but seeing this rebuild step by step is pretty cool.

How many failed attempts were there before you got this method down?

Sent from my LGL64VL using Tapatalk
