Post your builds

Discussion in 'Coil Building' started by Vape_geek, Jun 25, 2014.

  1. Pegleg Meg

    Pegleg Meg As useful as Helen Keller's drumset VU Donator Gold Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jan 6, 2017
    Messages:
    2,980
    I'm having a lot of fun today


  2. raymo2u

    raymo2u VU Donator Platinum Contributor Member For 3 Years Unlisted Vendor

    Blog Posts:
    0
    Joined:
    May 31, 2015
    Messages:
    9,180
    The 2nd to last build is all 46g fuses? It looks like you used .3R and had 46g on each side as a fuse!

    Shredtravolta and Pegleg Meg like this.
  3. Branpro

    Branpro Member For 2 Years

    Blog Posts:
    0
    Joined:
    Feb 6, 2016
    Messages:
    77
    That’s what I saw at first too lol. I did once try a staple stag with 42g, was attempting to do a pattern of something like 10, skip 3, 10, etc on the hand drill once. My eyes gave up an inch in...or maybe it was my mind. It hurt both lol. I dig it though @Pegleg Meg! You’re always tryin new shit, love it!

  4. mojo21

    mojo21 New Member

    Blog Posts:
    0
    Joined:
    May 10, 2018
    Messages:
    124
    Can u put pics of the daedalus v1 holders? Just wondering how u attach it to drill chuck. Thx

    Sent from my SM-G955W using Tapatalk

  5. Pegleg Meg

    Pegleg Meg As useful as Helen Keller's drumset VU Donator Gold Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jan 6, 2017
    Messages:
    2,980
    @BoostedTrini

    I have a question for you, how do you manage/handle/set your decores for long sticks of aliens?

  6. mojo21

    mojo21 New Member

    Blog Posts:
    0
    Joined:
    May 10, 2018
    Messages:
    124
    want to see what the setup looks like .

    Sent from my SM-G955W using Tapatalk

  7. Branpro

    Branpro Member For 2 Years

    Blog Posts:
    0
    Joined:
    Feb 6, 2016
    Messages:
    77
    Question vape fam, so I ordered the stacked section for my Dreamer, for shits and gigs. Any good series builds you guys recommend? I normally don’t build that high in ohms, I’m curious if anybody recommends some dope builds that perform well. I may just start simple with some quad core fused clappys and go ham with the wraps I guess lol.

    Shredtravolta and Pegleg Meg like this.
  8. CrazyChef v2.0

    CrazyChef v2.0 Gold Contributor Member For 1 Year ECF Refugee Reddit Exile Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Mar 13, 2017
    Messages:
    3,048
    I wouldn't suggest quad cores... I have some 2 core 28/40 fused Claptons in mine. About 10 wraps?

    [​IMG]
    [​IMG]

  9. Branpro

    Branpro Member For 2 Years

    Blog Posts:
    0
    Joined:
    Feb 6, 2016
    Messages:
    77
    Thanks chef! I got the copper one too! I love this mech, such a good mod for the price. I also snagged the ultem button (matchy matchy with my drip tip lol) and drill cleaner attachment. Figured I’d spend the 50$ to get free shipping rather then pay shipping and get less for the same amount. I’ve never built for series before, and I always seem to mess up the calculations on apps. I think I don’t count wraps correctly or something. Always a tad off lol. Appreciate the feedback!

  10. Pegleg Meg

    Pegleg Meg As useful as Helen Keller's drumset VU Donator Gold Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jan 6, 2017
    Messages:
    2,980
    \

    Maybeee... 3x28 kanthal, 3mm or 3.5mm ID, 7.5 wraps (looks like 8 wraps) = 0.3 to 0.4 ohms?

    do you like n80 better? same specs but with 3x29 or 3x30

    Or 30g frames and 6x.3 ribbon

    Last edited: Jul 10, 2018
  11. Pegleg Meg

    Pegleg Meg As useful as Helen Keller's drumset VU Donator Gold Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jan 6, 2017
    Messages:
    2,980
    Time to see how it vapes :D


  12. Pegleg Meg

    Pegleg Meg As useful as Helen Keller's drumset VU Donator Gold Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jan 6, 2017
    Messages:
    2,980
  13. PoppaVic

    PoppaVic Silver Contributor Member For 3 Years

    Blog Posts:
    0
    Joined:
    Sep 5, 2014
    Messages:
    1,304
  14. BoostedTrini

    BoostedTrini Member For 1 Year

    Blog Posts:
    0
    Joined:
    May 2, 2017
    Messages:
    57
    I insert my 3 wires into the guides and bend them around the edges of the one I put in the chuck...giving me 2 90 degree bends. Tighten that down int he drill and secure the other end to the swivels. The slit in the guide is dead center and the guide itself is a cylinder. This ensures my cores are centered every time and it takes less than a minute to do.

  15. BoostedTrini

    BoostedTrini Member For 1 Year

    Blog Posts:
    0
    Joined:
    May 2, 2017
    Messages:
    57

    Last edited: Jul 10, 2018
    Pegleg Meg likes this.
  16. Pegleg Meg

    Pegleg Meg As useful as Helen Keller's drumset VU Donator Gold Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jan 6, 2017
    Messages:
    2,980

    Oops, what I meant was what do you do with your decore after stretching to make aliens? :D do you just lay it on the floor, in a pvc pipe, on a plastic mat, etc, because that would be a long decore after stretched, how do you protect it from snagging stuff or twisting up?

    Shredtravolta and KingPin! like this.
  17. BoostedTrini

    BoostedTrini Member For 1 Year

    Blog Posts:
    0
    Joined:
    May 2, 2017
    Messages:
    57
    So I've done some practice again and found what I think are the sources of my issue. One was too understretched so the tension I had to apply was bunching up the cores and the other is I really do need a wire holder that holds this 28g tighter than the ones I have.
    Quad 28/38g Aliens. All the the dreded hump I'm trying to avoid.
    Quad 27g done with no issues. The guide holds them snug.
    These two came out just the way I want...nice and flat.
    The one on the far right is how I want all to turn out while the rest have the hump I hate.

  18. BoostedTrini

    BoostedTrini Member For 1 Year

    Blog Posts:
    0
    Joined:
    May 2, 2017
    Messages:
    57
    I lay it out on the floor. The floor I build on is tiled so it's nice and smooth, no snags..the room behind the tiled section is carpeted though. So I stretch into that room and then double back when I lay the wire down...but yes, it is a long stretched decore.

  19. Wtmke1

    Wtmke1 Gold Contributor Member For 2 Years

    Blog Posts:
    0
    Joined:
    Sep 25, 2015
    Messages:
    4,436
  20. mojo21

    mojo21 New Member

    Blog Posts:
    0
    Joined:
    May 10, 2018
    Messages:
    124
    Sweet ! I like that. I am waiting on a dual tool core holder from usa ohm. Its stuck in customs or lost . Been like a month ! Anyway that's a kool option . So I guess u had to buy the hole unit ? Or do they sell the pieces separately?

    Sent from my SM-G955W using Tapatalk

  21. BoostedTrini

    BoostedTrini Member For 1 Year

    Blog Posts:
    0
    Joined:
    May 2, 2017
    Messages:
    57
    Lightning Vapes used to have it separately but no longer do. You'll most likely have to buy the whole unit(without drill). The V2 wire holders are wide body and have noticeably more play to them. You can fit one gauge larger than stated in them.

  22. Pegleg Meg

    Pegleg Meg As useful as Helen Keller's drumset VU Donator Gold Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jan 6, 2017
    Messages:
    2,980
    Weirdest ssfc I've ever made for sure, works awesomely though

    3 x.3 ribbon, 26g SS frames, 46g fuse

    0.1 ohms, 70-80 watts

    It's okay! It snapped back in, my favorite coil tool is still in operation :inlove:

    Last edited: Jul 10, 2018
  23. Pegleg Meg

    Pegleg Meg As useful as Helen Keller's drumset VU Donator Gold Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jan 6, 2017
    Messages:
    2,980
  24. chrisakasparky

    chrisakasparky Bronze Contributor

    Blog Posts:
    0
    Joined:
    Dec 28, 2017
    Messages:
    288
    @Pegleg Meg you’re on a rampage lol

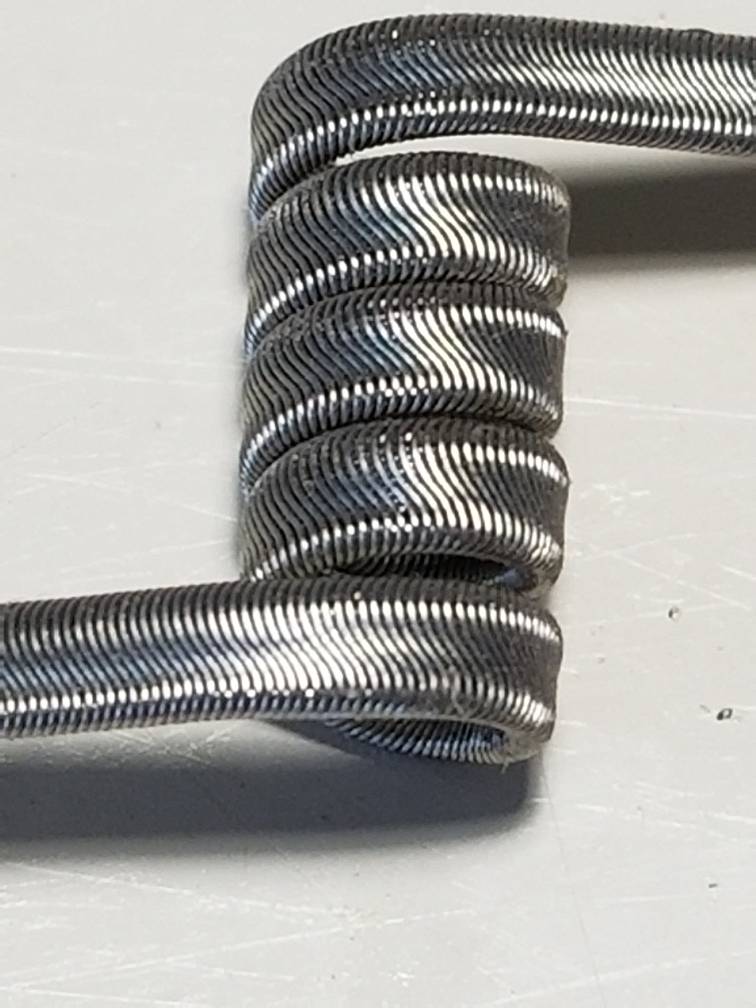

    More alien practice for me!
    6x28 ss316l, 36 n80
    4mm id, .13 ohms
    [​IMG]

  25. chrisakasparky

    chrisakasparky Bronze Contributor

    Blog Posts:
    0
    Joined:
    Dec 28, 2017
    Messages:
    288

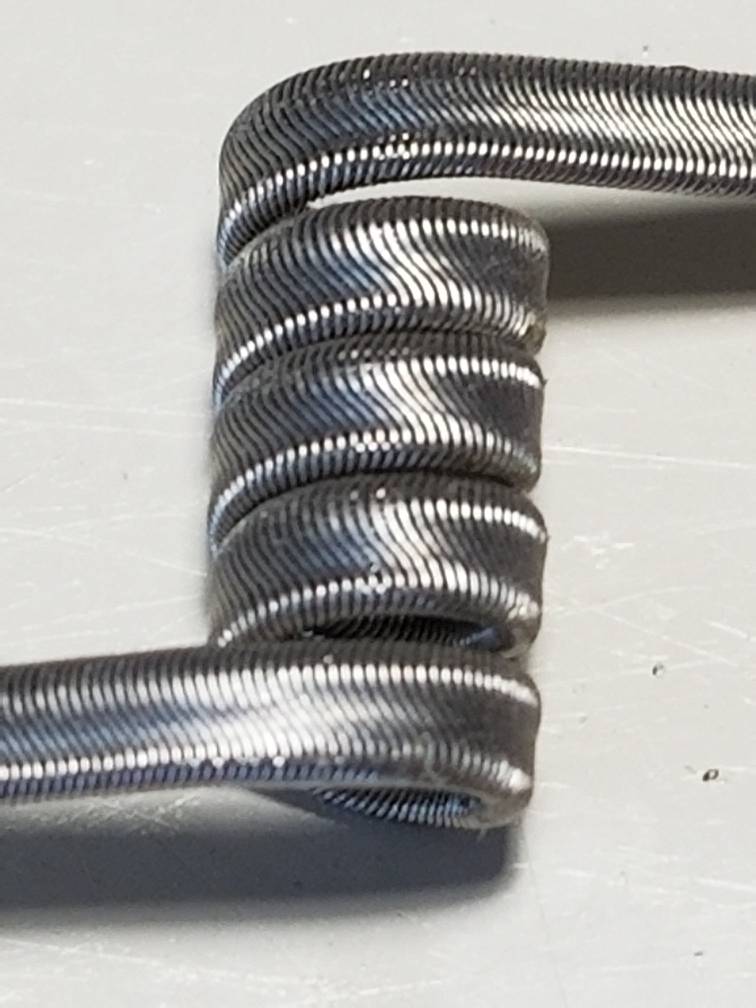

    [​IMG]
    Everyone’s busy building I bet, can’t wait to see some pics!

  26. Pegleg Meg

    Pegleg Meg As useful as Helen Keller's drumset VU Donator Gold Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jan 6, 2017
    Messages:
    2,980

    Lol sorry man, but I finally went to bed xD my ribbon spool got back to the fucked up section, and making ssfc quit being fun again Very Fast

    I plan on making a variety tonight though, and lots of aliens/fraliens :bliss:

    With my new cotter pin for the drill!


    Last edited: Jul 11, 2018
  27. KingPin!

    KingPin! In my defence, I was left unsupervised ^^ Staff Member Senior Moderator VU Donator Platinum Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Dec 23, 2016
    Messages:
    5,302
    You are a machine meg! In a good way not the terminator destroy all humans variety

    Even Mach1ne would be proud haha

  28. Pegleg Meg

    Pegleg Meg As useful as Helen Keller's drumset VU Donator Gold Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jan 6, 2017
    Messages:
    2,980

    Remember T3? The female terminator? Best acting job Kristanna Loken ever did, because she didn't have any lines, just walked around hahaha

  29. KingPin!

    KingPin! In my defence, I was left unsupervised ^^ Staff Member Senior Moderator VU Donator Platinum Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Dec 23, 2016
    Messages:
    5,302
    Haha bit like arnie in the original ...he doesn’t need many lines just give him a single saying and press go for launch

    Get two tha choppa

    Shredtravolta, raymo2u and Pegleg Meg like this.
  30. The_hat_trix

    The_hat_trix New Member Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Mar 4, 2018
    Messages:
    149
    I cannot wait to come back! You guys really stepped up with building in past months i'm impressed. I'm moving to new apartment beside my work so that's why i wasn't posting anything, not enough time :zombie:. When i'm done moving need to order some more wires and get back straight to building:bliss:

  31. Pegleg Meg

    Pegleg Meg As useful as Helen Keller's drumset VU Donator Gold Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jan 6, 2017
    Messages:
    2,980

    Yes!!! :stars2:

    Man I can't wait till you can post again!

  32. mojo21

    mojo21 New Member

    Blog Posts:
    0
    Joined:
    May 10, 2018
    Messages:
    124
    Nice waves ! Wow 6 core

    Sent from my SM-G955W using Tapatalk

  33. mojo21

    mojo21 New Member

    Blog Posts:
    0
    Joined:
    May 10, 2018
    Messages:
    124
    I guess u watched the video to . Lol

    Sent from my SM-G955W using Tapatalk

    raymo2u, Shredtravolta and Pegleg Meg like this.
  34. Pegleg Meg

    Pegleg Meg As useful as Helen Keller's drumset VU Donator Gold Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jan 6, 2017
    Messages:
    2,980
    Yeah, carefully! Then spent all day yesterday practicing framed stuff haha

    Shredtravolta likes this.
  35. Shredtravolta

    Shredtravolta VU Donator Silver Contributor Member For 1 Year

    Blog Posts:
    0
    Joined:
    Feb 16, 2017
    Messages:
    517
    My favorite vape is a single coil all N80 Fralien, I needed a new one, so I BUILT it. If the binding is tight, the vape is alright!:banana: IMG_1093.jpg

    mach1ne, Cormic, KingPin! and 8 others like this.
  36. mojo21

    mojo21 New Member

    Blog Posts:
    0
    Joined:
    May 10, 2018
    Messages:
    124
    Decisions . Decisions [​IMG]

    Sent from my SM-G955W using Tapatalk

  37. VAPEROXX

    VAPEROXX Silver Contributor Member For 2 Years

    Blog Posts:
    0
    Joined:
    Sep 14, 2015
    Messages:
    666
    Fralien I prepped for the Gunmetal Intake RTA coming in the mail tomorrow. 5 wraps, 3mm ID, 2x26-9x.5 cores, 36 wrap[​IMG][​IMG]

    Sent from my SM-G955U using Tapatalk

    mach1ne, Cormic, KingPin! and 7 others like this.
  38. Pegleg Meg

    Pegleg Meg As useful as Helen Keller's drumset VU Donator Gold Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jan 6, 2017
    Messages:
    2,980

    Woooo shred fralien! :D

    Wooo another fralien, awesome!

  39. mojo21

    mojo21 New Member

    Blog Posts:
    0
    Joined:
    May 10, 2018
    Messages:
    124
    What did u think of the coil from ray_mo_2?

    Sent from my SM-G955W using Tapatalk

  40. Pegleg Meg

    Pegleg Meg As useful as Helen Keller's drumset VU Donator Gold Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jan 6, 2017
    Messages:
    2,980

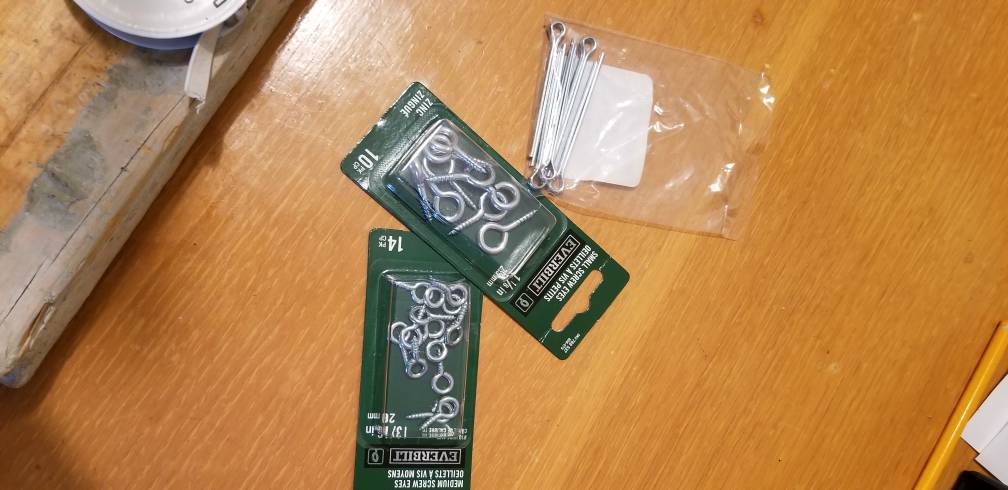

    Lol I literally bought One cotter pin, 19 cents xD

    KingPin! and Shredtravolta like this.
  41. mojo21

    mojo21 New Member

    Blog Posts:
    0
    Joined:
    May 10, 2018
    Messages:
    124
    I can't wait to try making one . Still waiting on ribbon order

    Sent from my SM-G955W using Tapatalk

    Shredtravolta and Pegleg Meg like this.
  42. mojo21

    mojo21 New Member

    Blog Posts:
    0
    Joined:
    May 10, 2018
    Messages:
    124
    So I tried the cutter and I found it really hard to get the wire centered after folding it over itself... any ideas on what I'm doing wrong ??

    Sent from my SM-G955W using Tapatalk

    Shredtravolta and Pegleg Meg like this.
  43. mojo21

    mojo21 New Member

    Blog Posts:
    0
    Joined:
    May 10, 2018
    Messages:
    124
    Cotter
    Sent from my SM-G955W using Tapatalk

    Shredtravolta likes this.
  44. Pegleg Meg

    Pegleg Meg As useful as Helen Keller's drumset VU Donator Gold Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jan 6, 2017
    Messages:
    2,980
    The hole may be too small for how thick your core wires are, maybe?

    Shredtravolta likes this.
  45. mojo21

    mojo21 New Member

    Blog Posts:
    0
    Joined:
    May 10, 2018
    Messages:
    124
    I think more like the cotter was to thick and made it sit on the outside of the circle

    Sent from my SM-G955W using Tapatalk

    Shredtravolta and Pegleg Meg like this.
  46. Pegleg Meg

    Pegleg Meg As useful as Helen Keller's drumset VU Donator Gold Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jan 6, 2017
    Messages:
    2,980
    That makes more sense

    Havent tried mine yet but it's smaller...hope it works

    If not my torn up swivel works pretty good, just isnt as sturdy

    Shredtravolta likes this.
  47. Pegleg Meg

    Pegleg Meg As useful as Helen Keller's drumset VU Donator Gold Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jan 6, 2017
    Messages:
    2,980
    Looks like it works best if you put your cores into the hole coming from the two chuck teeth side 153135820143516945397.jpg

    Last edited: Jul 12, 2018
    KingPin!, raymo2u and Shredtravolta like this.
  48. mojo21

    mojo21 New Member

    Blog Posts:
    0
    Joined:
    May 10, 2018
    Messages:
    124
    The cotter pin is centered it was the wires that weren't. Gonna try again and I'm sure I'll get it figured out . Thx for the tip

    Sent from my SM-G955W using Tapatalk

    Shredtravolta likes this.
  49. Pegleg Meg

    Pegleg Meg As useful as Helen Keller's drumset VU Donator Gold Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jan 6, 2017
    Messages:
    2,980
  50. Pegleg Meg

    Pegleg Meg As useful as Helen Keller's drumset VU Donator Gold Contributor Member For 1 Year Unlisted Vendor

    Blog Posts:
    0
    Joined:
    Jan 6, 2017
    Messages:
    2,980
    If you flip the pin then the wires will be centered :D that is what I mean


    Like this, with the groove of IMG_20180711_203354.jpg the cotter pin resting on the point of one of the chuck teeth, and the wire coming out of the loop on the opposite side (towards where the other two chuck teeth meet)

    Then if you have to you can push the cores towards the center, I think your cotter pins are bigger than mine? Mine is 1 1/2"

    Last edited: Jul 11, 2018

Share This Page

Close This Message
