flawless tug boat 2p 1s mech box mod..help pls

VAPePOCALYPSE

Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
hi guys can any one help..
im one of those idiots that bought an orig-anal box mods from tug boat..i think the mosfet has blown it smells bad! it fires the instant i put the rda on it.
yep ive tryed other rdas..same happens and tanks too.
the switch seems to be fine but the mosfet smells real bad
flawless want me to post it to usa i live in uk. big money..could buy a clone for the same price as returning this, local shop is doing nothing for me.. just tld me to email flawless..sh*te customer service...in fact no customer service!
i cannot and will not pay even more money just to post this pos all over the place..im gonna try to repair it myself.
any tips or recomends on a good mosfet or some one uk that will upgrade it for me?
the wires are really thin too ..really do regret buying this...
china from now on...if im gonna get stranded with a pos might as well be a cheep one!
thank you for any help.
fu*k flawless and vape shops.


richardward77

Silver Contributor
Member For 4 Years
I make parallel box mods and get my mosfets from modmaker UK they are a great company make sure you get a 15k resistor to go on the mosfet too think the mosfet is about 1.99 and resistor is 10p.

Sent from my P022 using Tapatalk


VAPePOCALYPSE

Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
I make parallel box mods and get my mosfets from modmaker UK they are a great company make sure you get a 15k resistor to go on the mosfet too think the mosfet is about 1.99 and resistor is 10p.

Sent from my P022 using Tapatalk
thank you buddy..im not waiting a month while chug boat pull there end to decide if i should get a new one ..its not even 3 months old.
i will have a look at modmaker..thanks again.
i have a triple parallel axmod too and so far thats been great..better quailty and cheaper.uk rules this time.
usa0 uk1..;]
all the best.;]


richardward77

Silver Contributor
Member For 4 Years

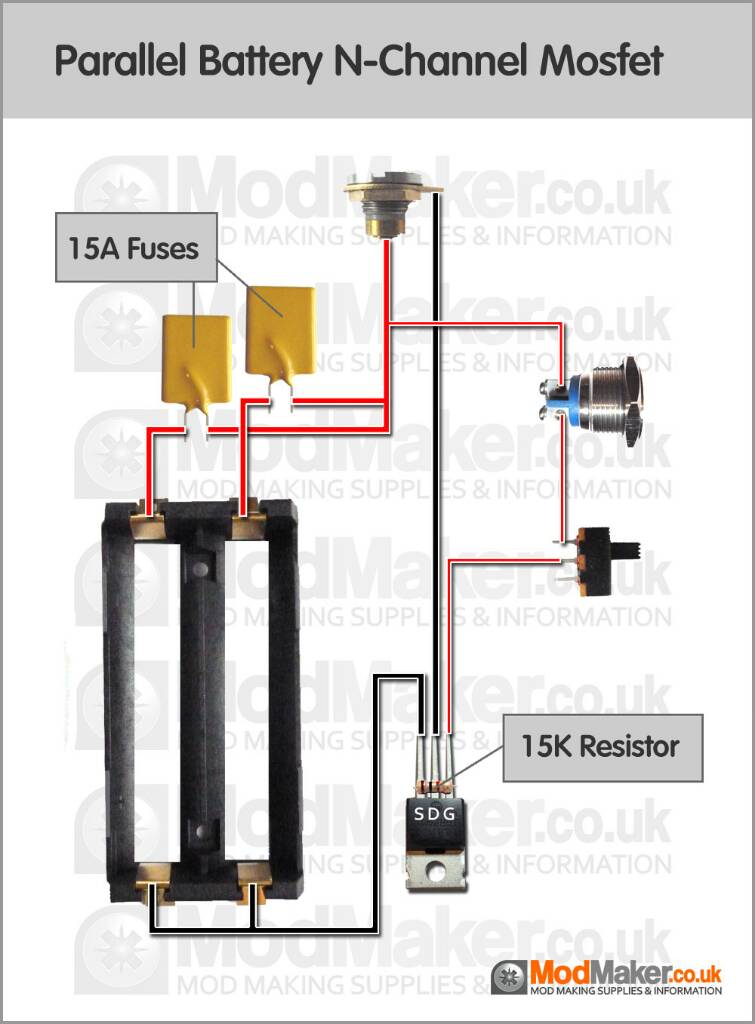

Iv got the tugboat clone never had a problem with it but to be honest I don't use it that much.if you do get a mosfet make sure its an N channel mosfet not a p channel and here's a wiring diagram.
don't worry about the yellow fuses the tugboats don't have those.Here's a

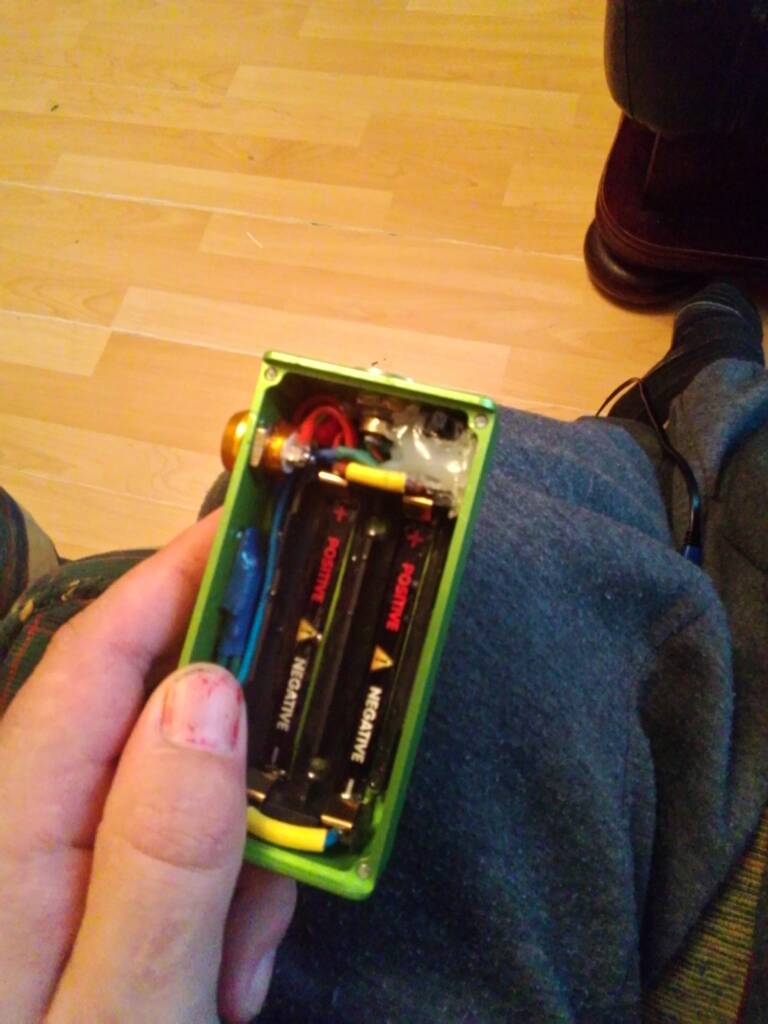

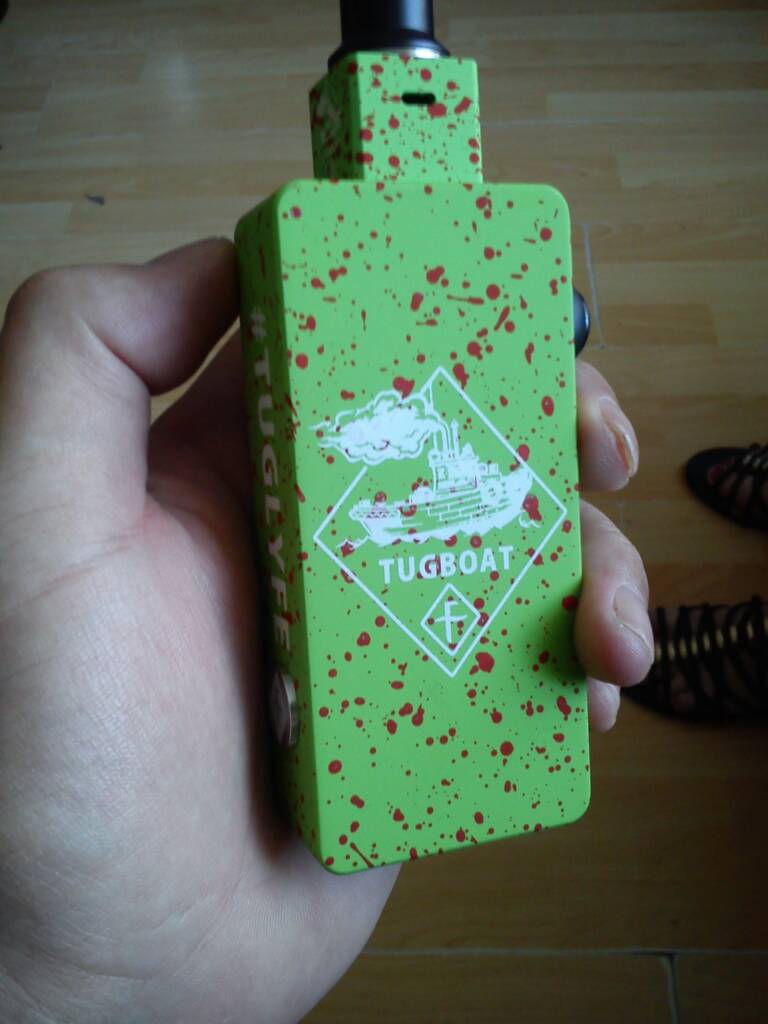

Pic of mine.

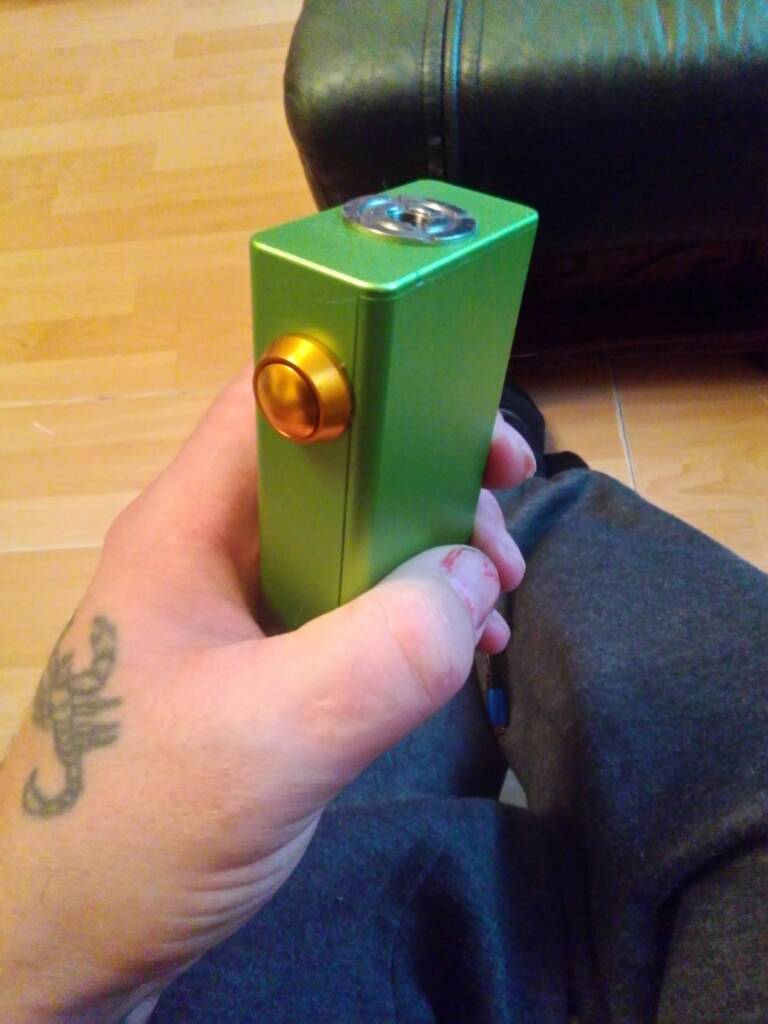

and one I've made myself.

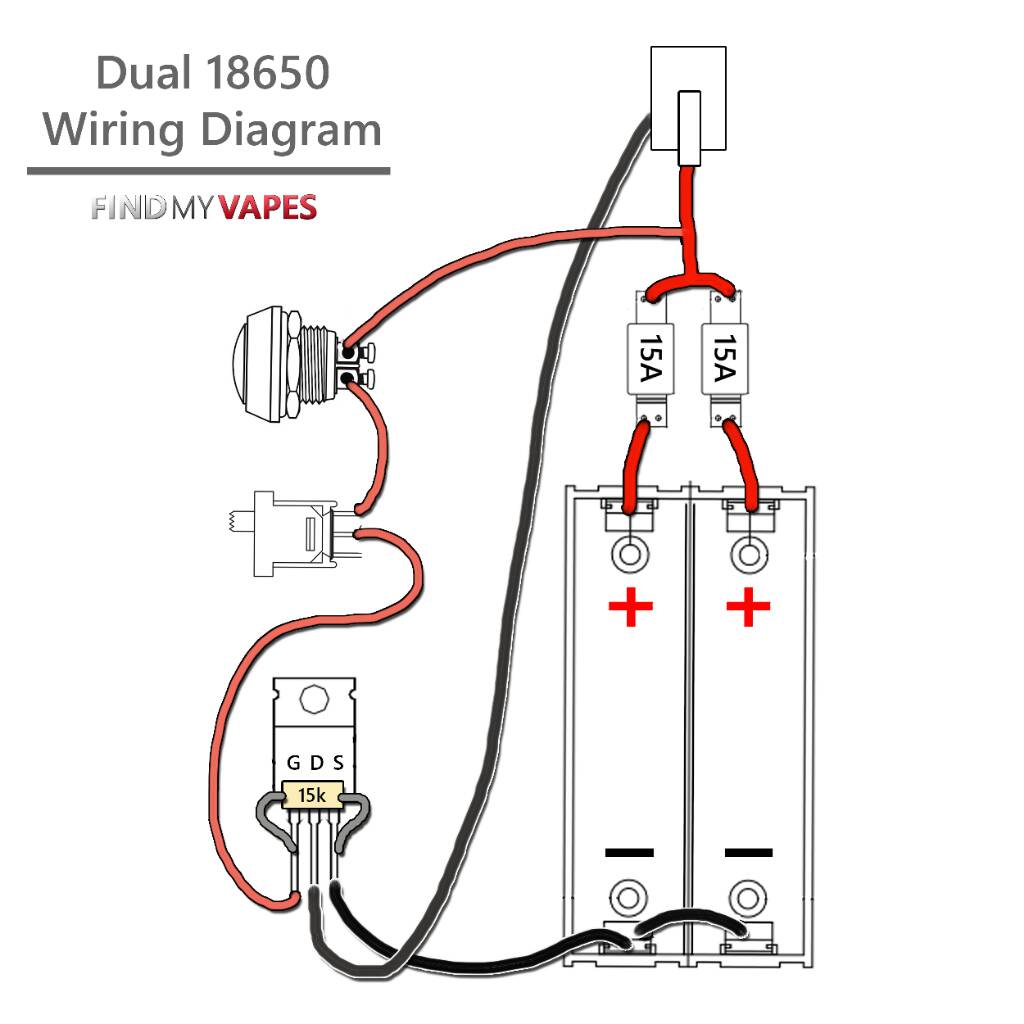

and maybe an easier wiring diagram.


Sent from my P022 using Tapatalk


VAPePOCALYPSE

Member For 4 Years
Member For 3 Years
Member For 2 Years
Member For 1 Year
Iv got the tugboat clone never had a problem with it but to be honest I don't use it that much.if you do get a mosfet make sure its an N channel mosfet not a p channel and here's a wiring diagram.
don't worry about the yellow fuses the tugboats don't have those.Here's a
Pic of mine.
and one I've made myself.
and maybe an easier wiring diagram.


Sent from my P022 using Tapatalk
your the man richard thankyou so much ..fu*k flawless and the vape shop im gonna have a go at it.great diagram and the n not p for the fet is very good to know.
thanks again.
vap[e on buddy.;]
Iv got the tugboat clone never had a problem with it but to be honest I don't use it that much.if you do get a mosfet make sure its an N channel mosfet not a p channel and here's a wiring diagram.
don't worry about the yellow fuses the tugboats don't have those.Here's a
Pic of mine.
and one I've made myself.
and maybe an easier wiring diagram.


Sent from my P022 using Tapatalk


richardward77

Silver Contributor
Member For 4 Years
No probs glad I could help and Ye I wouldn't bother with flawless to be honest. if you changed the button to a high amp button you wouldn't need the mosfet but the mosfet does add a few safety features so prob best to add one.

Sent from my P022 using Tapatalk


richardward77

Silver Contributor
Member For 4 Years
You could even add the on off switch to stop it firing in your pocket or bag when your out they cost about 50p

Sent from my P022 using Tapatalk
